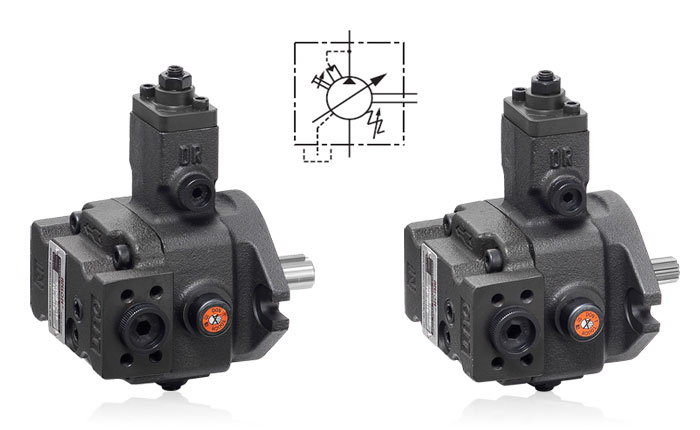

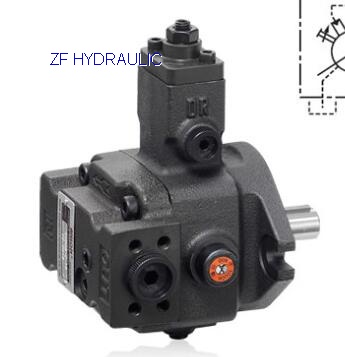

SVD Series SVD12-B-12S variable simple vane Pumps

SVD Series SVD12-B-12S variable simple vane Pumps
Product name : SVD Series SVD12-B-12S variable simple vane Pumps
Item :
Details :
SVD Series SVD12-B-12S variable simple vane Pumps

How to order:



Variable Displacement Vane Pumps

VD/SVD Series-Single Pumps Model Code

VD 12 -B -12 S
Frame size Outlet flow
(at 3.5bar,1800 r/min)
Operating pressure range Design Shafts code
Code Geometric displacement cm3/rev
(Outlet Flow L/min)
Code Pressure range
(bar)
VD 08 8 (15)
A 8~20
B 15~35
C 30~55
D 50~70
12
(VD)
Omit:
Woodruff key


S:
Splined Shafts
12 12 (20)
16 16 (30)
SVD 08 8 (15) 15
(SVD)
12 12 (20)
Factory setting Q max. Factory setting P min.

※Pumps Speed Limits
Minimum speed:800 r/min
Maximum speed:1800 r/min

Other models: SVD08-B-12S
