VP65FD Series variable double vane Pumps

Product name : VP65FD Series variable double vane Pumps

Item :

Details :

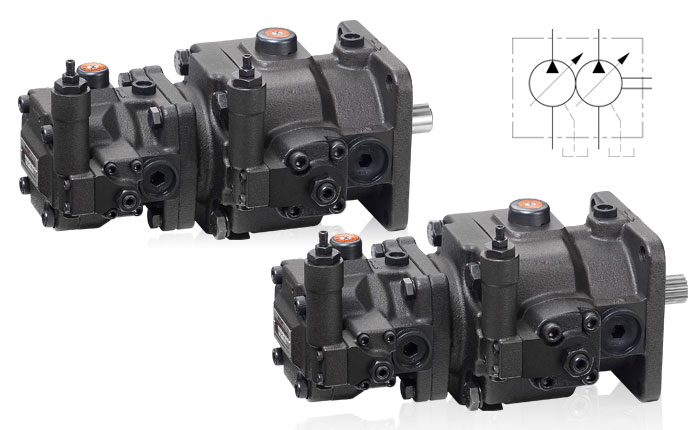

VP65FD Series variable double vane Pumps

How to order:

Variable Displacement Vane Pumps

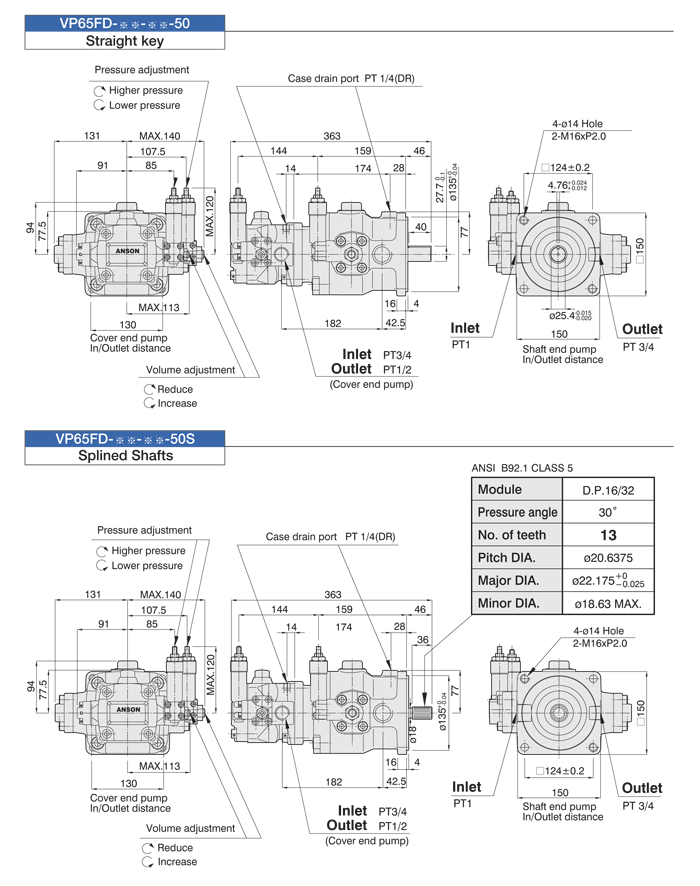

VP※※FD Series-Double Pumps Model Code

VP55FD	-A		-5		-A		-5		-50	S
Code Frame size	Shaft end pump				Cover end pump				Design	Shafts code
	Outlet flow （at 3.5bar，1800 r/min）		Operating pressure range		Outlet flow （at 3.5bar，1800 r/min）		Operating pressure range
	A Outlet Flow L/min (Geometric displacement cm³/rev)	●B Outlet Flow L/min (Geometric displacement cm³/rev)	Code	Pressure range (bar)	A Outlet Flow L/min (Geometric displacement cm³/rev)	●B Outlet Flow L/min (Geometric displacement cm³/rev)	Code	Pressure range (bar)
VP55FD (VP5FD)	30 (16)	40 (22)	2	15~35	30(16)	40(22)	2	15~35	50	Omit: Woodruff key (VP5) Straight key (VP6) S: Splined Shaft
VP65FD	54 (30)	70 (39)	3	20~70	30(16)	40(22)	3	20~70
VP66FD	54 (30)	70 (39)	4	50~105	54(30)	70(39)	4	50~105
F: Flange mounting	●B code (40 & 70 L/min) maximum pressure 105bar Factory setting Q max.		5	70~140	●B code (40 & 70 L/min) maximum pressure 105bar Factory setting Q max.		5	70~140
F: Flange mounting			Factory setting Pmin.				Factory setting Pmin.

※Pumps Speed Limits
Minimum speed：800 r/min
Maximum speed：1800 r/min

Double vane pump double action

When the motor drives the rotor to rotate along the blade, the blade extends outwards under the double action of centrifugal force and pressure oil at the bottom of the blade, and its top is close to the inner surface of the stator. The four blades on the four concentric arcs are respectively connected with the outer surface of the rotor, the inner surface of the stator and two flow plates to form four sealed working oil Chambers. With the rotation of the rotor, these oil Chambers will change from small to large or from large to small in the sealing work. The oil can be sucked or pressed out through the oil absorption window (connected with the oil suction port) or the oil discharge window (connected with the oil discharge port) of the distribution plate.

Unloading type

In the process of each rotor rotation, each working oil chamber completes two times of oil absorption and oil pressure, so it is called double-acting vane pump, because the high and low pressure Chambers are symmetrical and symmetrical each other, the axial force is balanced, it is unloading type.
