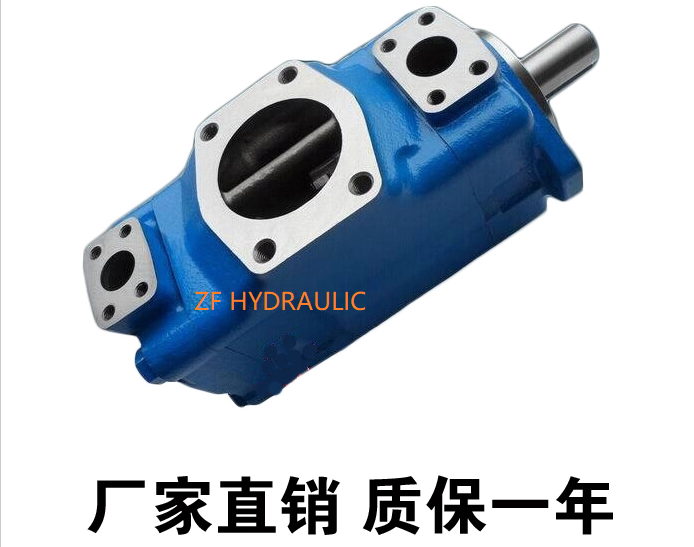

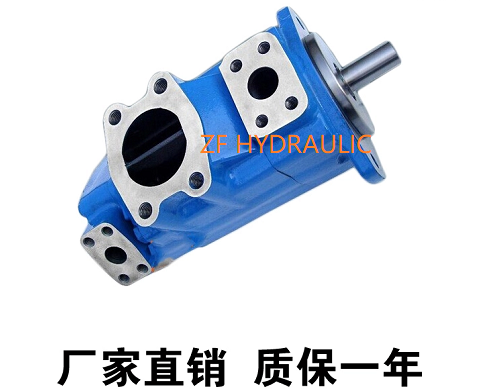

2520VQSV10 SERIES VANE PUMPS

Installation and Use:

1. In installation, the tolerance of concentricity between shaft of pump and motor must be less than 0.10mm (TIR) by using the flexible coupling; The pump shaft shall not bear the radial and axial load ; The carrier must be firm with good rigidity and can fully absorb vibrations.
2. Set the suction pressure at pump inlet port : Recommended inlet pressure is 0 to 35Kpa.
3. Oil should be kept clean, pipes and tanks must be thoroughly cleaned; The cleanness level of oil should be within NSA12.
4. Nomal pump operation (at rated conditions)is based on the use of SAE10W oil in the 38 ℃ to 82 ℃ range (or comparable viscosities)
5. Check the inlet, outlet and direction of rotation before starting the pump. Turn the shaft of pump evenly and nimbly by hand after fixing the pump. At the time of first-starting ,if the pump does not immediately prime , air should be bled from the pump delivery line .
6. When first put into use, the pump body and oil suction pipeline should be filled with oil, and the pump shall not be allowed to operate without oil.
7. Do not start the pump when the outlet pressure is lower than the inlet pressure. This will cause work noise and blade instability.
8. Cold start condition:When operating SAE10W oil in the 860 to 40cSt range, the speed and pressure should be limited to 50% or less of their respective rated values until the system has warmed up. Extreme caution must be used when starting units when fluid viscosity are greater than 860cSt, Care should be exercised to warm up the entire system, including remote cylinders and motors.
9. At high temperature, viscosities must not be less than 13cSt, Temperatures should not exceed 99 ℃ because the expectancy of cartridge kite and elastomers will decrease.

Our company guarantees that all the products will be produced and tested according to the relevant national standards. Guarantee the strict performance and cash of products, and strictly implement the relevant regulations on after-sales service of national industrial products:

1. If any quality problem occurs within 7 days after the product is used, our company can return or replace the new product. All expenses shall be borne by our company. (except for human factors)

2. If any quality problem occurs within one year after the product is delivered spontaneously, our company will return, replace, replace, and maintain the new products according to the seriousness of the product quality problem, and all expenses shall be borne by us (except for human factors). Products exceeding the warranty period are subject to lifelong maintenance service.

3.Installation: as our products are easy to install, all customers can install by themselves. If you have any questions, please feel free to consult us!

4. Transportation: any problems (including insurance, loss, damage, etc.) that may occur during the transportation (logistics, express delivery, distribution) shall be borne by our company and all expenses incurred during the transportation shall be borne by our company.

5. maintenance response: the company promises to reply the quality problems in the warranty period within 24 hours after receiving the notice from the user, and to provide lifelong maintenance service for products beyond the warranty period within 7 working days.

6. Parts service: we promise to supply the parts beyond the warranty period at the cost price.
