Pump details:

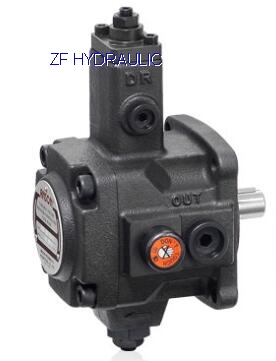

Pvf-30 series vane pump is a high pressure and high performance pump specially developed for low noise work. The product is widely used in machine tools, plastic machines, die-casting machines, light industry and other fields



ZF HYDRAULIC offers you detailed commodity prices, commodity pictures and other commodity introduction information of "PVF vane pump ". You can directly contact the company to obtain the specific information of "PVF vane pump ".

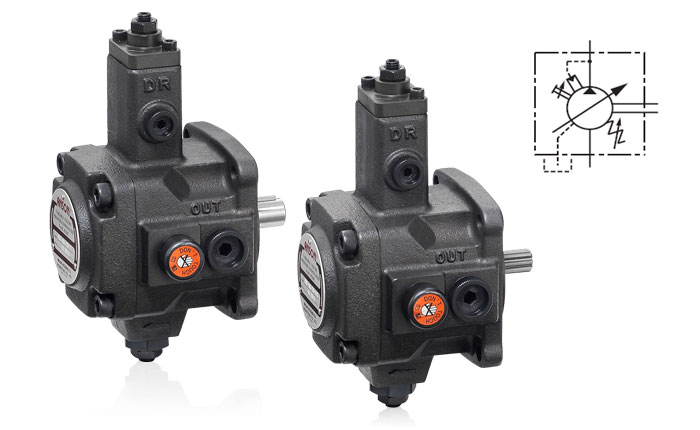

Variable Displacement Vane Pumps

PVF Series-Single Pumps Model Code

PVF	-12		-70		-10	S
Frame size	Outlet flow （at 3.5bar，1800 r/min）		Operating pressure range		Design	Shafts code
	Code	Outlet Flow L/min  (Geometric displacement cm3/rev)	Code	Pressure range (bar)
PVF: Flange mounting	8	8(5)	20	8~20	10	Omit: Woodruff key S: Splined Shafts
	12	12(7)	35	15~35
	15	15(8)	55	30~55
	20	20(12)	70	50~70
	30	30(16)	Factory setting P min.
	40	40(22)
	Factory setting Q max.

※Pumps Speed Limits
Minimum speed：800 r/min
Maximum speed：1800 r/min
