Hydraulic vane pump VA1-08F-A3 |
|
| Product name : Hydraulic vane pump VA1-08F-A3 |
| Item : |
| Details : |

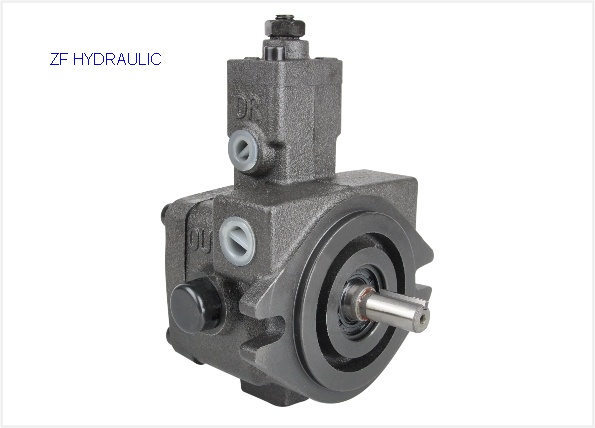

Hydraulic vane pump VA1-08F-A3
Specification:
| MODEL |
MAX.
PRESSURE
kgf/cm2
|
DELIVERY OF UNLOADING
(L/min) |
PRESSURE
ADJUSTING
RANGE(kgf/cm2) |
rpm |
PORTS SIZE |
WEIGHT(kg) |
| 1500rpm |
1800rpm |
MIN. |
MAX. |
OUT |
IN |
DR. |
FLANGE TYPE |
| VA1-8LA |
VA1-8FA |
70 |
6.7 |
8 |
A1:8-20
A2:15-35
A3:30-70 |
1800 |
800 |
3/8″ |
1/2″ |
1/4″ |
5.0 |
| VA1-12LA |
VA1-12FA |
10 |
12 |
| VA1-15LA |
VA1-15FA |
12.5 |
15 |
| VB1-20LA |
VB1-20FA |
70 |
16.7 |
20 |
3/8″ |
1/2″ |
1/4″ |
5.0 |
| VB1-24LA |
VB1-24FA |
20 |
24 |
| VC1-26LA |
VC1-26FA |
70 |
21.7 |
26 |
3/8″ |
1/2″ |
1/4″ |
5.0 |
| VD1-25LA |
VD1-25LA |
70 |
21 |
25 |
1/2″ |
3/4″ |
1/4″ |
9.0 |
| VD1-30LA |
VD1-30LA |
25 |
30 |
| VE1-35LA |
VE1-35LA |
70 |
29.2 |
35 |
1/2″ |
3/4″ |
1/4″ |
9.5 |
| VE1-40LA |
VE1-40FA |
33.3 |
40 |
| VE1-45LA |
VE1-45FA |
37.5 |
45
|
Product introduction:
VA. VB,VC,VD,VE series variable vane pumps are pressure limiting variable vane pumps with pressure adjustment device and flow adjustment device. The output flow rate of the pump can be adjusted automatically according to the load change, so that the output power can adapt to the load working speed and load size, and have the characteristics of high efficiency, energy saving, safety and reliability. It is especially suitable for the power source in the hydraulic system of volume speed regulation, such as metal cutting machine, pressure machine, leather machine, hydraulic station and so on.
|
 |
