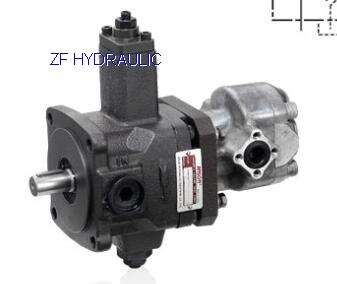

TPF Series TPF-VL401-GH5-10S variable simple vane Pumps
Product name :
TPF Series TPF-VL401-GH5-10S variable simple vane Pumps
Item :
Details :
TPF Series TPF-VL401-GH5-10S variable simple vane Pumps
How to order:

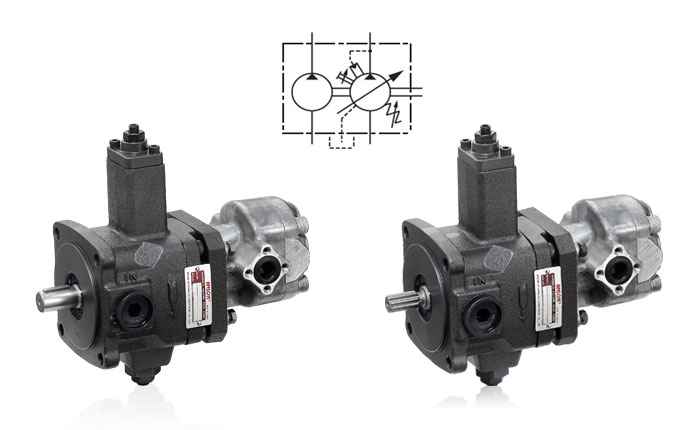

Variable Displacement Vane Pumps
TPF Series-Double Pumps Model Code
TPF
-VL30
2
-GH5
-10
S
Frame size
Shaft end pump
(Variable volume pressure compensated vane pump)
Cover end pump
(Fixed displacement gear pump)
Design
Shafts code
Outlet flow
(at 3.5bar,1800 r/min)
Operating pressure range
Displacement
(L/min)
Operating pressure
(bar)
Code
Outlet Flow L/min
(Geometric displacement cm
3
/rev)
Code
Pressure range
(bar)
Code
Outlet flow
(L/min)
Pressure
Peak
TPF
Flange monuting
VL30
30(16)
1
15~35
GH1
1.09
210
250
10
Omit:
Woodruff key
S:
Splined Shafts
VL40
40(22)
2
30~70
GH2
2.07
GH3
3.08
GH4
4.06
GH5
6.16
GH6
7.67
GH7
9.24
GH8
10.77
GH9
12.00
Factory setting
Q
max.
Factory setting
P
min.
G00
GOO
type, is variable vane pump only,
no including the gear pump
※Pumps Speed Limits
Minimum speed:800 r/min
Maximum speed:1800 r/min
Vane pump fatory.
