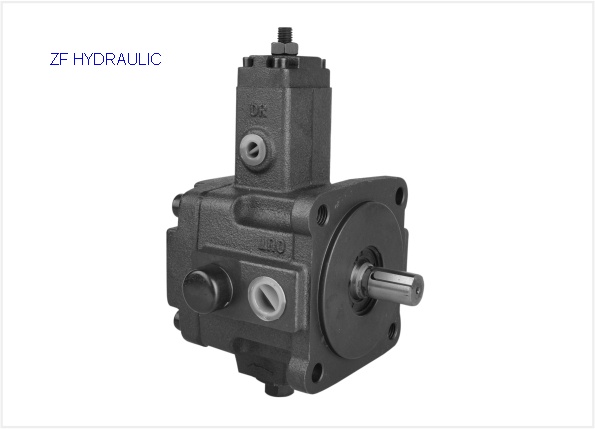

Variable vane pump VP-SF-30

Variable vane pump VP-SF-30
Product name : Variable vane pump VP-SF-30
Item :
Details :
Variable vane pump VP-SF-30

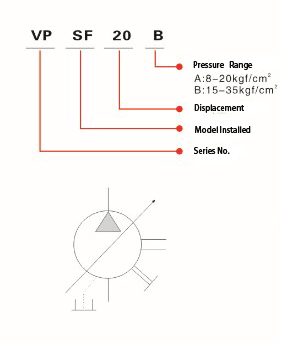

How to order:

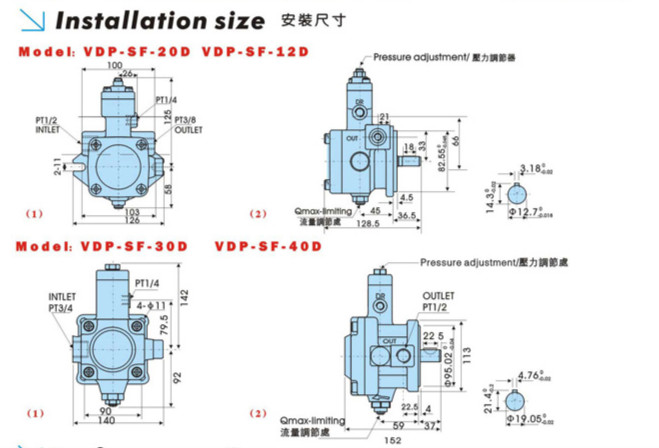

Drawing size:


Other model:
Vane pump VP-SF-12D, vane pump VP-SF-20D, vane pump VP-SF-30D, vane pump VP-SF-40D

Features:

VP series variable vane pump is a pressure limiting variable vane pump, with pressure regulator and flow regulator. Pump output flow can be adapted according to the size of the load, with high efficiency, energy saving, safe and reliable characteristics, especially suitable for the volume speed control of the hydraulic system in the power source, such as metal cutting machine tools, pressure machinery, leather machinery, hydraulic station.

If the direction of the oil inlet needs to be changed, the relevant pump body screw should be withdrawn first, and attention should not be paid to the separation of the left and right pump bodies, so as to ensure that the heart part rotates at a certain Angle with the oil inlet, and then gradually tighten diagonally.
