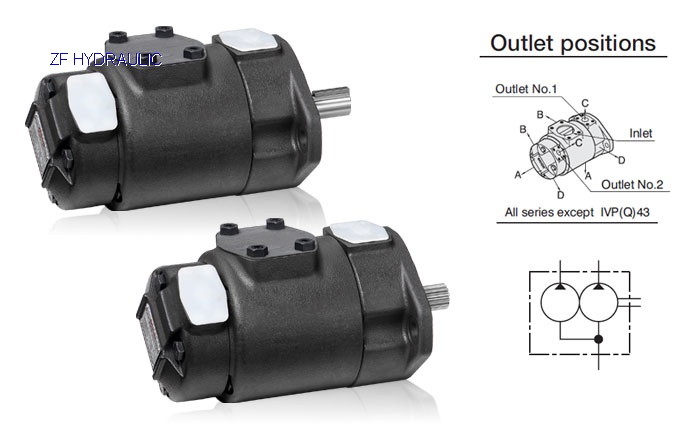

IVP Series Double vane Pumps

IVP Series Double vane Pumps

How to order:

F3-	IVP (Q/V)21	-17	H	-12	H	A	M	-F	-R	-86			AA	-10
Prefix, Fluid Compatibility	Frame Size	Geometric Displacement ●Code	Pressure type  ★	Geometric displ. cover end pump ●Code	Pressure type  ★	Port connections	Port connections modifier	Mounting Form	Shaft Rotation	▲Shaft model			Port orientation	Design
										Str. key	HD Str. key	Splined key
Omit: Using Petroleum Base oil & anti-wear hydraulic oil  F11- Using water glycol fluid.  F3- Using water-in-oil emulsions or phosphate ester fluid.	IVP(Q/V)21	10, 12, 14, 15, 17, 19, 21, 25		2, 3, 4, 5, 6, 7, 8, 10, 11, 12, 14					Viewed from shaft end of pump	1	86	11	Viewed from cover end of pump With no.1 outlet opposite inlet AA-  No.2 outlet 135˚CCW from inlet ( NO.2 outlet opposite inlet ) AB- NO.2 outlet 45˚CCW from inlet ( NO.2 outlet 90˚CCW from inlet) AC- No.2 outlet 45˚CW from inlet ( No.2 outlet inline with inlet ) AD- No.2 outlet 135˚CW from inlet ( No.2 outlet 90˚CW from inlet ) With no.1 outlet 90˚CCW from inlet BA-  No.2 outlet 135˚CCW from inlet ( NO.2 outlet opposite inlet ) BB- NO.2 outlet 45˚CCW from inlet ( NO.2 outlet 90˚CCW from inlet) BC- No.2 outlet 45˚CW from inlet ( No.2 outlet inline with inlet ) BD- No.2 outlet 135˚CW from inlet ( No.2 outlet 90˚CW from inlet ) With no.1 outlet inline with inlet CA-  No.2 outlet 135˚CCW from inlet ( NO.2 outlet opposite inlet ) CB- NO.2 outlet 45˚CCW from inlet ( NO.2 outlet 90˚CCW from inlet) CC- No.2 outlet 45˚CW from inlet ( No.2 outlet inline with inlet ) CD- No.2 outlet 135˚CW from inlet ( No.2 outlet 90˚CW from inlet ) With no.1 outlet 90˚CW from inlet DA-  No.2 outlet 135˚CCW from inlet ( NO.2 outlet opposite inlet ) DB- NO.2 outlet 45˚CCW from inlet ( NO.2 outlet 90˚CCW from inlet) DC- No.2 outlet 45˚CW from inlet ( No.2 outlet inline with inlet ) DD- No.2 outlet 135˚CW from inlet ( No.2 outlet 90˚CW from inlet )	10
	IVP(Q/V)31	17, 21, 25, 30, 32, 35, 38, 42	Omit –  Standard pressure	2, 3, 4, 5, 6, 7, 8, 10, 11, 12, 14	Omit –  Standard pressure	A- SAE 4 bolt flange	M-  Metric  (4-bolt flange)	F- Flange mounting	R-  Right hand for clockwise	1	86	11
	IVP(Q/V)32	17, 21, 25, 30, 32, 35, 38, 42	H- High pressure	10, 12, 14, 15, 17, 19, 21, 25	H- High pressure		Omit - Inch (4-bolt flange)	L- Foot mounting	L-  Left hand for counter-clockwise	1	86	11
	IVP(Q/V)41	30, 35, 38, 42, 50, 60, 67, 75		2, 3, 4, 5, 6, 7, 8, 10, 11, 12, 14						1	86	11
	IVP(Q/V)42	30, 35, 38, 42, 50, 60, 67, 75		10, 12, 14, 15, 17, 19, 21, 25						1	86	11
	IVP(Q/V)43	30, 35, 38, 42, 50, 60, 67, 75		17, 21, 25, 30, 32, 35, 38, 42						1	86	11

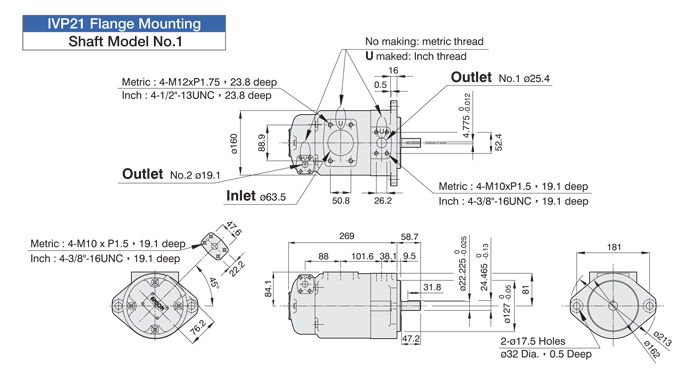

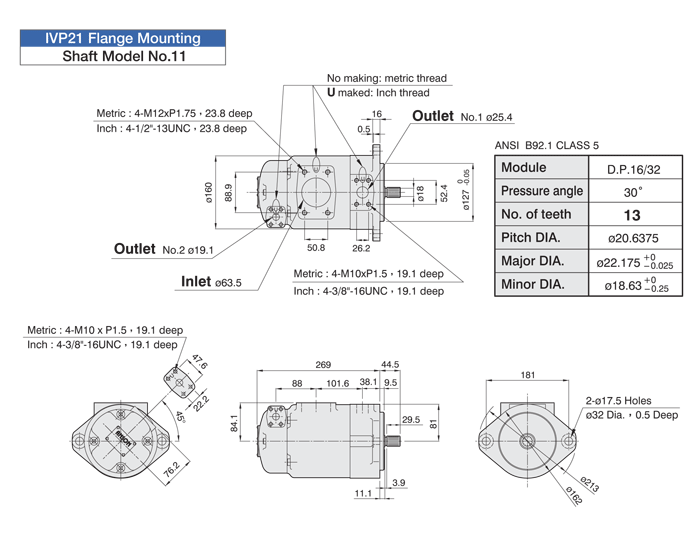

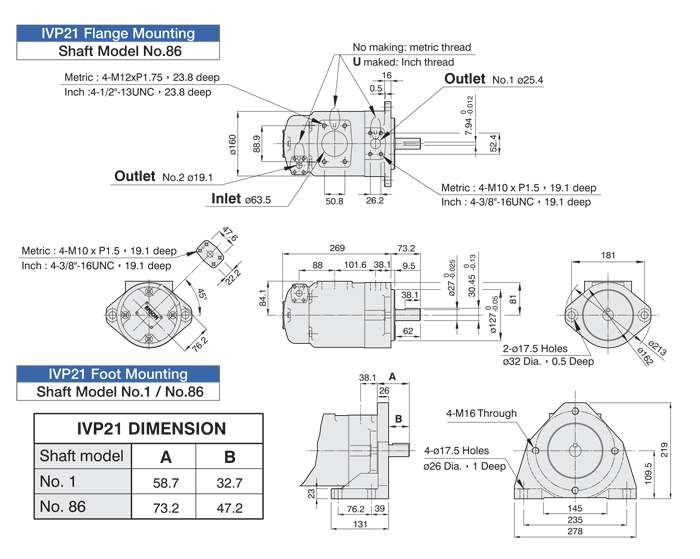

● Rated capacity in US gpm at 1200r/min and 6.9bar(100psi).
★ IVPQ series no H high pressure type.
▲ IVPQ series no splined Shaft model.
