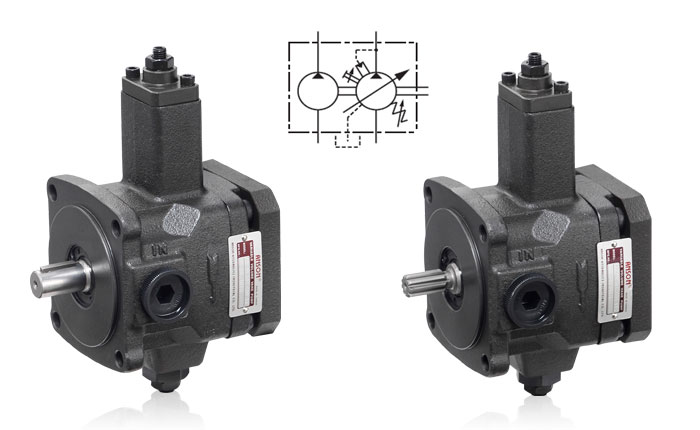

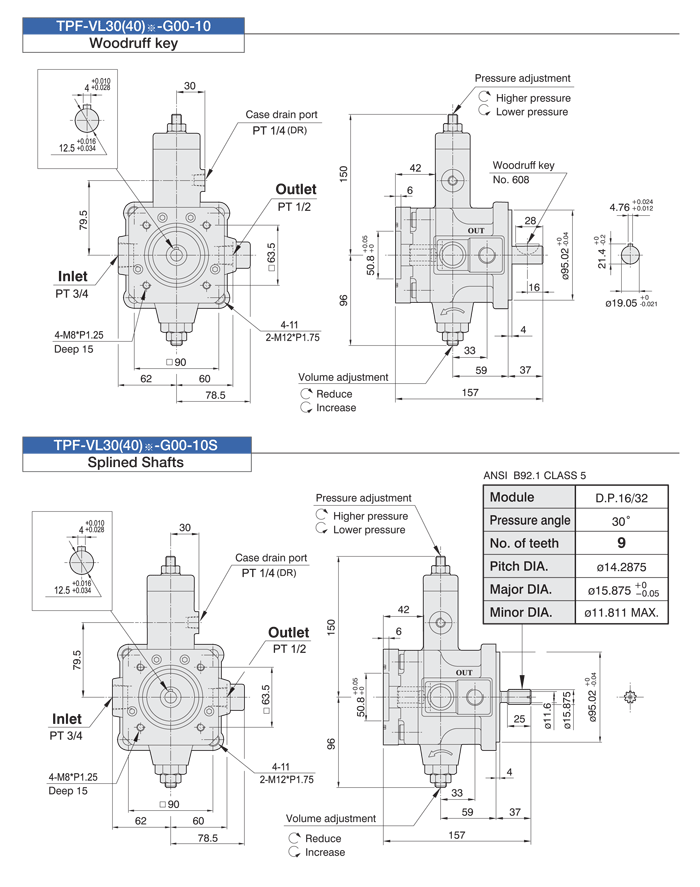

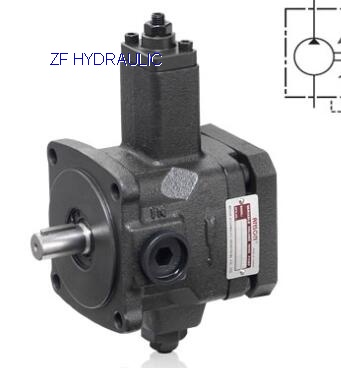

TPF Series TPF-VL30(40)-G00-10 variable simple vane Pumps

How to order:

Variable Displacement Vane Pumps

TPF Series-Double Pumps Model Code

TPF	-VL30		2		-GH5				-10	S
Frame size	Shaft end pump (Variable volume pressure compensated vane pump)				Cover end pump (Fixed displacement gear pump)				Design	Shafts code
	Outlet flow （at 3.5bar，1800 r/min）		Operating pressure range		Displacement (L/min)		Operating pressure (bar)
	Code	Outlet Flow L/min  (Geometric displacement cm3/rev)	Code	Pressure range (bar)	Code	Outlet flow (L/min)	Pressure	Peak
TPF Flange monuting	VL30	30(16)	1	15~35	GH1	1.09	210	250	10	Omit: Woodruff key S: Splined Shafts
	VL40	40(22)	2	30~70	GH2	2.07
					GH3	3.08
					GH4	4.06
					GH5	6.16
					GH6	7.67
					GH7	9.24
					GH8	10.77
					GH9	12.00
	Factory setting Q max.		Factory setting P min.		G00	GOO type, is variable vane pump only,  no including the gear pump

※Pumps Speed Limits
Minimum speed：800 r/min
Maximum speed：1800 r/min

This vane pump other models have:
Vane pump TPF-VL401-GH5-10S, TPF-VL301-GH5-10S,
Vane pump TPF-VL402-GH5-10S, TPF-VL302-GH5-10S,
Vane pump TPF-VL401-GH1-10S, TPF-VL301-GH1-10S,
Vane pump TPF-VL402-GH1-10S, TPF-VL302-GH1-10S,
Vane pump TPF-VL401-GH2-10S, TPF-VL301-GH2-10S,
Vane pump TPF-VL402-GH2-10S, TPF-VL302-GH2-10S,
Vane pumps TPF-VL401-GH3-10S, TPF-VL301-GH3-10S,
Vane pump TPF-VL402-GH3-10S, TPF-VL302-GH3-10S,
Hydraulic Vane pump TPF-VL401-GH4-10S, TPF-VL301-GH4-10S,
Vane pump TPF-VL402-GH4-10S, TPF-VL302-GH4-10S,
