IVP series Intravane Fixed Displacement Vane Pumps
Intravane Fixed Displacement Vane Pumps
IVP(Q/V) Series-Single Pumps Model Code
| (F3-) |
IVP(Q/V)2 |
-17 |
H |
A |
M |
-F |
-R |
-86 |
C |
-10 |
Prefix, Fluid
Compatibility |
Frame
Size |
Geometric
Displacement
●Code |
Pressure
★type |
Port
connections |
Port
connections
modifier |
Mounting
Form |
Shaft
Rotation |
▲Shaft model |
Outlet Positions |
Design |
Str.
key |
HD Str.
key |
Splined
key |
Omit:
Using Petroleum Base oil & anti-wear hydraulic oil
F11-
Using water glycol fluid.
F3-
Using water-in-oil emulsions or phosphate ester fluid. |

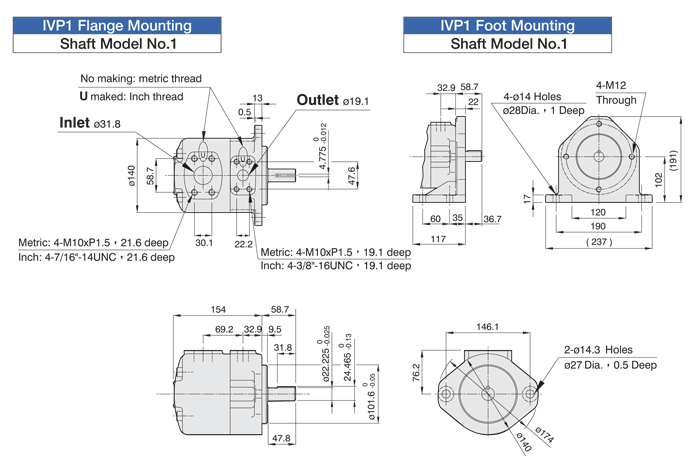

IVP (Q/V) 1 |
2,3,4,5,6,7,8,
10,11,12,14 |
|
|
|
|

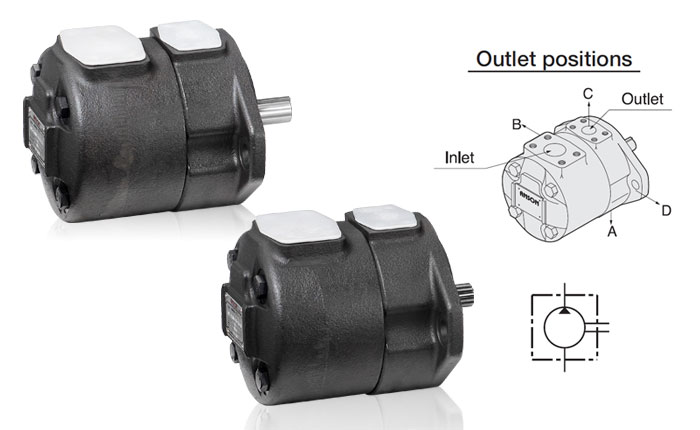

Viewed from shaft end of pump
|
1 |
N/A |

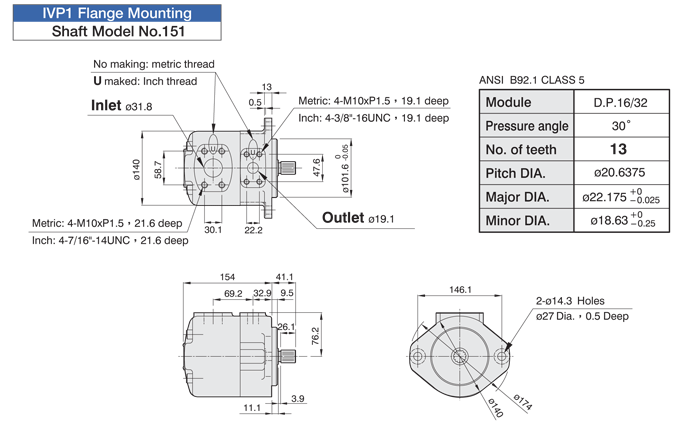

151 |
Viewed from cover
end of pump
A-
Opposite inlet port
B-
90° CCW from inlet
C-
Inline with inlet
D-
90° CW from inlet
|
10 |
| IVP (Q/V) 2 |
10,12,14,15,
17,19,21,25 |
Omit –
Standard pressure |
A-
SAE 4 bolt
flange |
M-
Metric fixing threads |
F-
Flange
mounting |
R-
Right hand for clockwise |
1 |
86 |
11 |
| IVP (Q/V) 3 |
17,21,25,30,
32,35,38,42 |
H-
High pressure |
|
Omit -
Inch fixing threads |
L-
Foot
mounting |
L-
Left hand for
counterclockwise |
1 |
86 |
11 |
| IVP (Q/V) 4 |
30,35,38,42,
50,60,67,75 |
|
|
|
|
|
1 |
86 |
11 |
● Rated capacity in US gpm at 1200r/min and 6.9bar(100psi).
★ IVPQ series no H high pressure type.
▲ IVPQ series no splined Shaft model.
 |
