IVPQ Series Single vane Pumps

IVPQ Series Single vane Pumps

How to order:

(F3-)	IVP(Q/V)2	-17	H	A	M	-F	-R	-86			C	-10
Prefix, Fluid Compatibility	Frame Size	Geometric Displacement ●Code	Pressure ★type	Port connections	Port connections modifier	Mounting Form	Shaft Rotation	▲Shaft model			Outlet Positions	Design
								Str. key	HD Str. key	Splined key

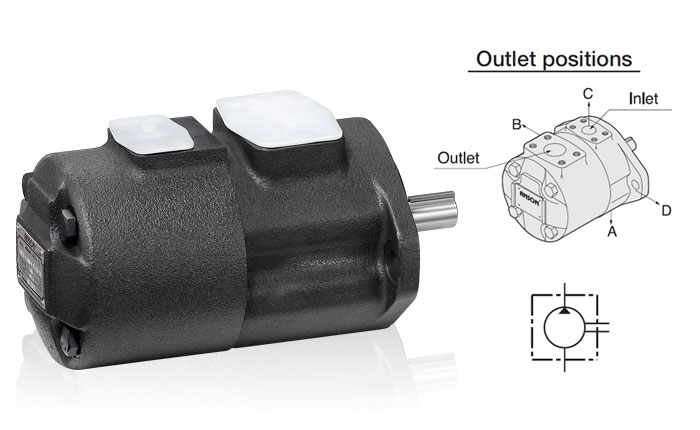

Omit: Using Petroleum Base oil & anti-wear hydraulic oil  F11- Using water glycol fluid.  F3- Using water-in-oil emulsions or phosphate ester fluid.	IVP (Q/V) 1	2,3,4,5,6,7,8, 10,11,12,14					Viewed from shaft end of pump	1	N/A	151	Viewed from cover end of pump A-  Opposite inlet port  B-  90° CCW from inlet  C-  Inline with inlet  D-  90° CW from inlet	10
	IVP (Q/V) 2	10,12,14,15, 17,19,21,25	Omit –  Standard pressure	A- SAE 4 bolt flange	M-  Metric fixing threads	F- Flange mounting	R-  Right hand for clockwise	1	86	11
	IVP (Q/V) 3	17,21,25,30, 32,35,38,42	H- High pressure		Omit - Inch fixing threads	L- Foot mounting	L-  Left hand for counterclockwise	1	86	11
	IVP (Q/V) 4	30,35,38,42, 50,60,67,75						1	86	11

● Rated capacity in US gpm at 1200r/min and 6.9bar(100psi).
★ IVPQ series no H high pressure type.
▲ IVPQ series no splined Shaft model.
