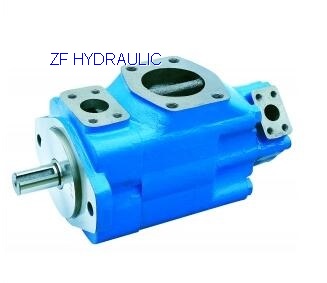

Hydraulic vane pump 4535V60A/35A

Product name : Hydraulic vane pump 4535V60A/35A

Item :

Details :

Hydraulic vane pump 4535V60A/35A

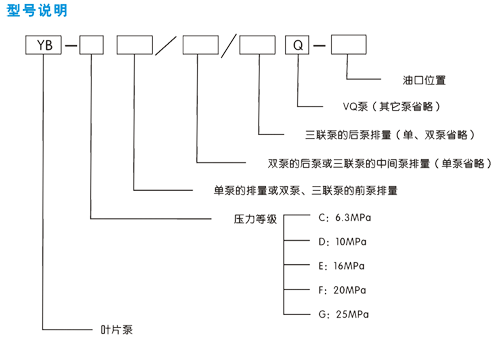

How to order:

Other models:

4535V50A/38A	4535V50A/35A	4535V50A/30A	4535V50A/25A
4535V42A/38A	4535V42A/35A	4535V42A/30A	4535V42A/25A
4525V60A/21A	4525V60A/19A	4525V60A/17A	4525V60A/14A
4525V60A/12A	4525V50A/21A	4525V50A/14A	4525V50A/12A
4525V50A/19A	4525V50A/17A	4520V60A/12A	4520V60A/11A
4520V60A/8A	4520V60A/5A	4520V60A/2A	4520V50A/12A
4520V50A/11A	4520V50A/8A	4520V50A/5A	4520V50A/2A
3525V38A/21A	3525V38A/17A	3525V38A/14A	3525V38A/12A
3520V38A/12A	3520V38A/11A	3520V38A/8A	3520V38A/5A
3520V38A/2A	3520V35A/12A	3520V35A/11A	3520V35A/8A
3520V35A/5A	3520V35A/2A	3520V30A/12A	3520V30A/11A
3520V30A/8A	3520V30A/5A	3520V30A/2A	3520V25A/12A
3520V25A/11A	3520V25A/8A	3520V25A/5A	3520V25A/2A
2520V21A/12A	2520V21A/11A	2520V21A/8A	2520V21A/5A
2520V21A/2A	2520V17A/12A	2520V17A/11A	2520V17A/8A
2520V17A/5A	2520V17A/2A	2520V14A/12A	2520V14A/11A
2520V14A/8A	2520V14A/5A	2520V14A/2A	50V109A
50V100A	50V85A	50V72A	45V60A
45V57A	45V50A	45V47A	45V42A
35V38A	35V35A	35V30A	35V25A
25V21A	25V19A	25V17A	25V14A
25V12A	20V14A	20V12A	20V11A
20V8A	20V5A	20V2A

Suitable for plastic machinery, shoes and leather machinery, machine tools, die casting and metallurgical equipment of high performance sub-blade pump

The main features are:

1. Adopt the structure of child and mother blade and hydraulic balance, reduce the pressure of blade on stator, its performance is more stable, and its service life is longer.

2. The blade system reduces the amplitude of flow pulsation and has low noise characteristics.

3. Multiple displacement, multi-axis extension and four different relative positions of oil inlet and outlet make users more flexible.

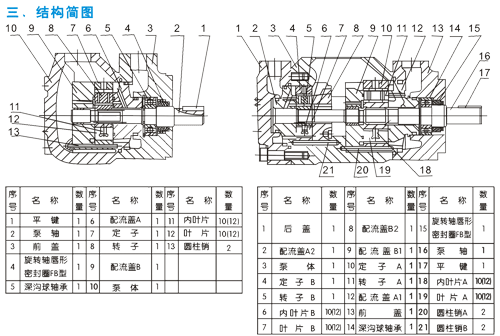

4. The cartridge structure of the pump core makes on-site maintenance more convenient.
