Hydraulic vane pump VA1-15F-A3

Hydraulic vane pump VA1-15F-A3

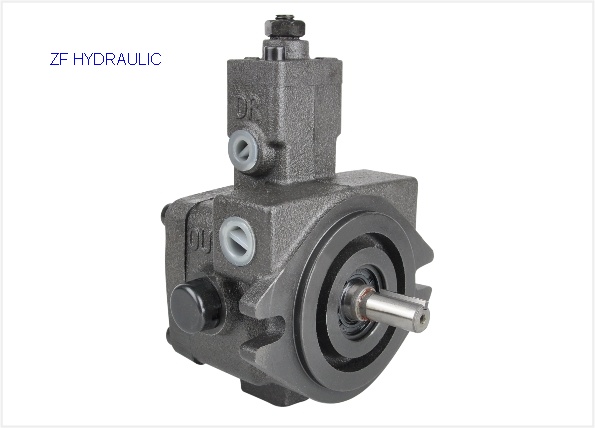

Product name : Hydraulic vane pump VA1-15F-A3
Item :
Details :
Hydraulic vane pump VA1-15F-A3

Specification:
MODEL
MAX.
PRESSURE
kgf/cm2
DELIVERY OF UNLOADING
(L/min)
PRESSURE
ADJUSTING
RANGE(kgf/cm2)
rpm PORTS SIZE WEIGHT(kg)
1500rpm 1800rpm MIN. MAX. OUT IN DR. FLANGE TYPE
VA1-8LA VA1-8FA 70 6.7 8 A1:8-20
A2:15-35
A3:30-70
1800 800 3/8″ 1/2″ 1/4″ 5.0
VA1-12LA VA1-12FA 10  12
VA1-15LA VA1-15FA 12.5 15
VB1-20LA VB1-20FA 70 16.7 20 3/8″ 1/2″ 1/4″ 5.0
VB1-24LA VB1-24FA 20  24
VC1-26LA VC1-26FA 70 21.7 26 3/8″ 1/2″ 1/4″ 5.0
VD1-25LA VD1-25LA 70 21  25 1/2″ 3/4″ 1/4″ 9.0
VD1-30LA VD1-30LA 25  30
VE1-35LA VE1-35LA 70 29.2 35 1/2″ 3/4″ 1/4″ 9.5
VE1-40LA VE1-40FA 33.3 40
VE1-45LA VE1-45FA 37.5 45
