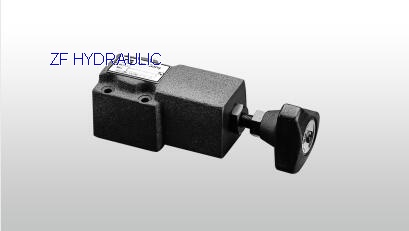

Valves DG.DT.Remote Control Relief Valves DG-01-1-32

Product name : Valves DG.DT.Remote Control Relief Valves DG-01-1-32

Item : 201941013349

Details :

DG.DT.Remote Control Relief Valves DG-01-1-32

SPECIFICATION

MODLE		MAX.OPERATING PRESSURE (kgf/cm ² )	PRESSURE ADJ.RANGE kgf/cm ²	RATEDFLOW l/min	WEIGHT kg
THREADED CONNECTIONS	SUB-PLATE MOUNTING	250	1 : 7-70 2 : 7-140 3 : 7-210	2	1.6	1.7
DT-01- ※	DG-01- ※	250	1 : 7-70 2 : 7-140 3 : 7-210	2	1.6	1.7

HOW TO ORDER

DG	-	01	-	1	-	32

								DESIGN NUMBER 30: STANDARD TYPE 32: THRUST RING LINK TYPE

								PRESSURE ADJUSTING RANGE 1: 7-70 kgf/cm ² 2: 7-140 kgf/cm ² 3: 7-210 kgf/cm ²

								VALVE SIZE 01: 1/8”

								MOUNTING DG: SUB-PLATE MOUNTING DT: THREADED CONNECTIONS

ATTACHMENT

MODLE	SOC HOL CAP SCREW
DG-01	M5 x 45L…….4pcs

DG.DT.Remote Control Relief Valves DG-01-1-32，
DG.DT.Remote Control Relief Valves DG-01-2-32，
DG.DT.Remote Control Relief Valves DG-01-3-32；
DG.DT.Remote Control Relief Valves DG-01-1-30，
DG.DT.Remote Control Relief Valves DG-01-2-30，
DG.DT.Remote Control Relief Valves DG-01-3-30；
DG.DT.Remote Control Relief Valves DT-01-1-32，
DG.DT.Remote Control Relief Valves DT-01-2-32，
DG.DT.Remote Control Relief Valves DT-01-3-32；
DG.DT.Remote Control Relief Valves DT-01-1-30，
DG.DT.Remote Control Relief Valves DT-01-2-30， DT-01-3-30
