Valves JBG.Pilot Operated Relief Valves JBG-03-1PN-1-30-D-W220-20-A
Valves JBG.Pilot Operated Relief Valves JBG-03-1PN-1-30-D-W220-20-A

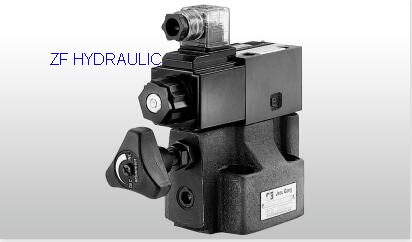

Product name : Valves JBG.Pilot Operated Relief Valves JBG-03-1PN-1-30-D-W220-20-A
Item : 2019410224848
Details :
 Valves  JBG.Pilot Operated Relief Valves JBG-03-1PN-1-30-D-W220-20-A
SPECIFICATION
MODLE MAX.OPERATING
PRESSURE (kgf/cm 2 )		 PRESSURE ADJ. RANGE
kgf/cm 2		 MAX. FLOW
l/min		 WEIGHT(NO CONTAIN ELECTRO
MAGNETIC) (kg)
JBG-03 JBG-03- ※ 250
1 : 7-70
2 : 7-140
3 : 7-210
 100 3.1 3.2
JBG-06 JBG-06-※ 200 5.1 5.2
HOW TO ORDER
JBG - 03 - 1PN - 1 - 30 - D - W220 - 20 - A

  SPRING SERIAL NUMBER

  VALVES DESIGN NUMBER
10 : WITH LAMP CENTRAL CONNECTION
20 : PLUG-IN CONNECTION

  COIL VOLTAGE
G12 : 12V DCG24 : 24V DCW110 : 110/60HzW220 : 220/60HzW240 : 240/60Hz

  PILOT VALVE TYPE
D: HA:

  DESIGN NUMBER
30: STANDARD TYPE
32: THRUST RING LINK TYPE

  PRESSURE ADJUSTING RANGE
1 : 7-70 kgf/cm 22 : 7-140 kgf/cm 2
3 : 7-210 kgf/cm 2

  VALVE TYPE
1PN : NORMALLY VENTED
1NP : ENERGIZED TO VENT

  VALVE SIZE
03 : 3/8” 06 : 3/4”

  SERIES NUMBER
ATTACHMENT
MODLE SOC HOL CAP SCREW
JBG-03-※ M12 X 45L 4pcs
JBG-06-※ M16 X 60L 4pcs
4WE-06 SOLENOID WEIGHT (kg)
  AC DC
Single solenoid valve 1.6 1.7
Valve with 2 solenoids 2.1 2.1









Valves  JBG.Pilot Operated Relief Valves JBG-03-1PN-1-30-D-W220-10-A
Valves  JBG.Pilot Operated Relief Valves JBG-03-1PN-1-30-D-G12-20-A
Valves  JBG.Pilot Operated Relief Valves JBG-03-1PN-1-30-D-G24-20-A
Valves  JBG.Pilot Operated Relief Valves JBG-03-1PN-1-30-D-W110-20-A
Valves  JBG.Pilot Operated Relief Valves JBG-03-1PN-1-30-D-W240 -20-A
Valves  JBG.Pilot Operated Relief Valves JBG-03-1PN-1-30-HA-W220-20-A
Valves  JBG.Pilot Operated Relief Valves JBG-03-1PN-1-32-D-W220-20-A
Valves  JBG.Pilot Operated Relief Valves JBG-03-1PN-2-30-D-W220-20-A
Valves  JBG.Pilot Operated Relief Valves JBG-03-1NP-1-30-D-W220-20-A
Valves  JBG.Pilot Operated Relief Valves JBG-03-1PN-3-30-D-W220-20-A
Valves  JBG.Pilot Operated Relief Valves JBG-06-1PN-1-30-D-W220-20-A
