ValvesDMG,DMT.Manually Operated Directional Valves DMT-03-3-C-6

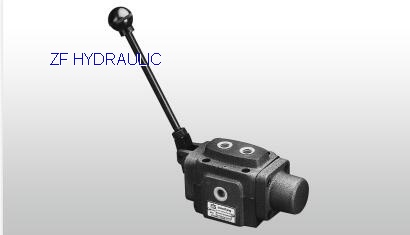

Product name : ValvesDMG,DMT.Manually Operated Directional Valves DMT-03-3-C-6

Item : 2019411193824

Details :

SPECIFICATION

MODLE		MAX. OPERATING PRESSURE kgf/cm²	BACK PRESSURE kgf/cm²	MAX. FLOW l/min	WEIGHT kg
THREADED CONNECTIONS	SUB-PLATE MOUNTING	MAX. OPERATING PRESSURE kgf/cm²	BACK PRESSURE kgf/cm²	MAX. FLOW l/min	WEIGHT kg
DMT-03-※	DMG-03-※	250	100	50	4.5	4
DMT-04-※			140	100	7
DMT-06-※				180	11.5
DMT-10-※				300	22.9

HOW TO ORDER

DM	T	-	03	-	3	-	C	-	6

											SPOOL TYPE(AS C-c10-03)

											CENTERED LOCKING C : SPRING LOCKING D : BALL LOCKING

											NUMBER OF VALVE POSITION 2 : 2POSITION 3 : 3POSITION

											VALVE SIZE 03 : 3/8”04 : 1/2” 06 : 3/4”10 : 1-1/4”

											MOUNTING G : SUB-PLATE MOUNTING T : THREADED CONNECTIONS

											SERIES NUMBER
