Stainless steel wire Angle seat valve

Stainless steel wire Angle seat valve

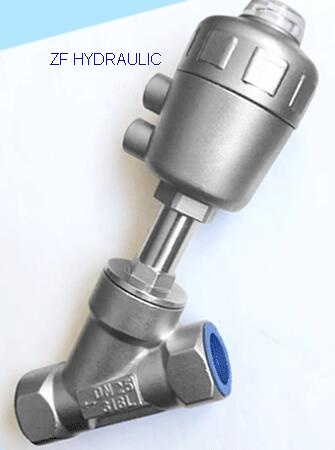

Product name : Stainless steel wire Angle seat valve
Item :
Details :
Stainless steel wire Angle seat valve

Single action and double action single action (pneumatic head is usually a hole); Working principle; According to the spring reset to open and close, divided into normally open and normally closed.

Double acting (pneumatic head usually has two holes); Working principle: air supply control switch.

Pressure range: 0-1.6mpa

Medium temperature: - 10 ℃ ~ + 180 ℃

Ambient temperature: - 10 ℃ ~ + 60 ℃

Valve body material: stainless steel

Sealing material: ptfe

Actuator housing: polyurethane, stainless steel

Application of pneumatic Angle seat valve in life:

Control gas: neutral gas, air

Control liquid: automatic industrial control fluid, food grade milk industry, domestic water, ordinary pipeline fluid medium, etc.

2. Application:

(1) beer and beverage filling equipment & drinks filling machinery;

, textile printing&dying;

(3) gas industry

(4) pharmacy and medical equipment /pharmacy & medical equipment;

(5) chemical industry emical industry;

6, high temperature sterilization /disinfection;

7, frothing equipment;

Today, water pollution treatment/water sewage disposal.

3. Operating principle of Angle valve:

The valve is normally open or closed when not in operation due to the action of the spring. When the actuator piston is compressed gas action, the valve open or close, the dual acting form of compressed gas to control the valve switch

B. installation environment:

1. Control form: direct action;

, pipe pressure: MAX 1.6mpa (232psi);

(3), control pressure: 0.3-0.8MPA(43.5-116psi);

(4) structure: Angle type

(5) interface: dn10-dn100;

6, medium viscosity: 600MM2/S;

7, medium temperature: -10 degrees -+180 degrees (PTFE);

8, the environmental temperature: -10 degrees -+60 degrees;

9) pet-name, installation location: anywhere (360 degrees).

4. Installation and disassembly:

(1) connect the valve to the pipeline, make sure the arrow attached to the valve body is consistent with the direction of the fluid (the arrow on the outside of the valve body represents the direction of the fluid flow, please follow the installation);

(2), welding installation: please remove the actuator when welding;

(3), thread, flange, quick installation: can be installed normally;

(4), disassembly: before disassembly to ensure that the pressure of the valve has been lifted; Light discharge; Protect the thread and sealing material after disassembly;

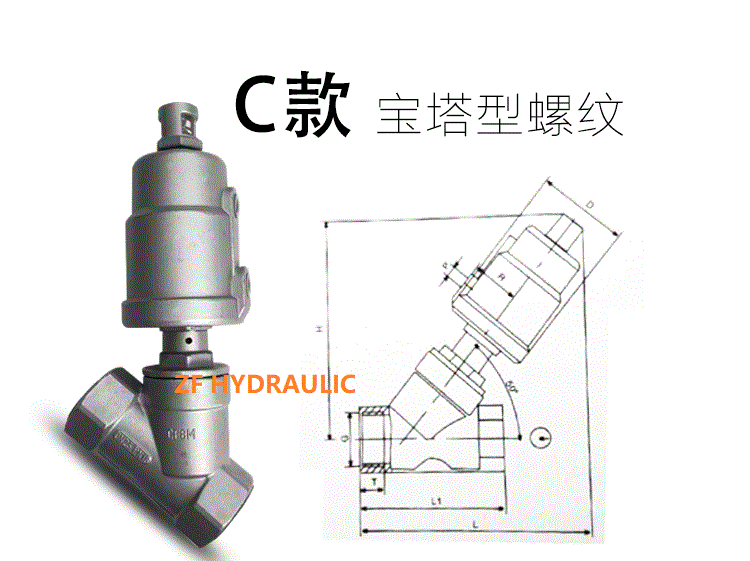

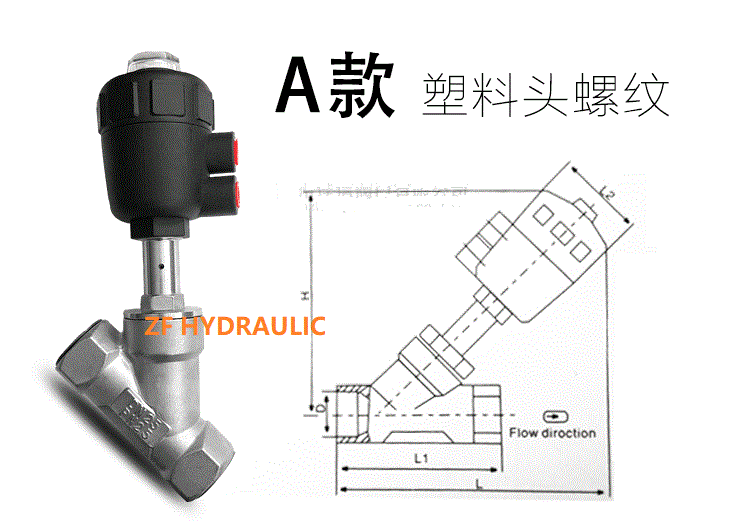

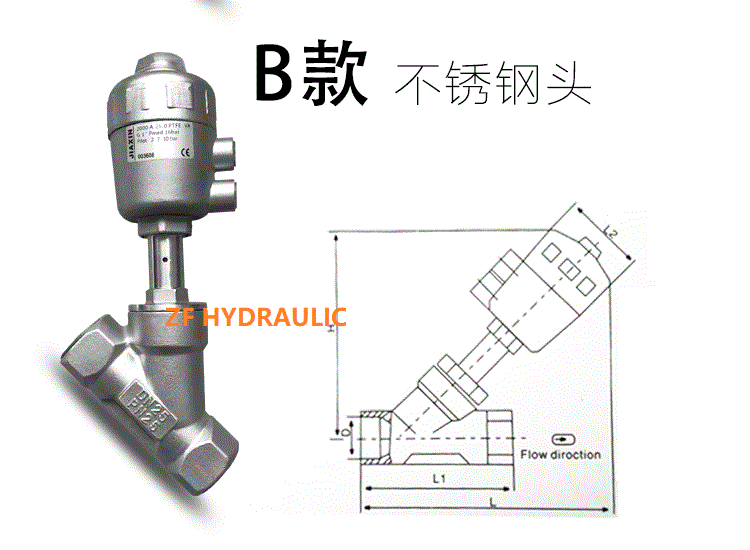

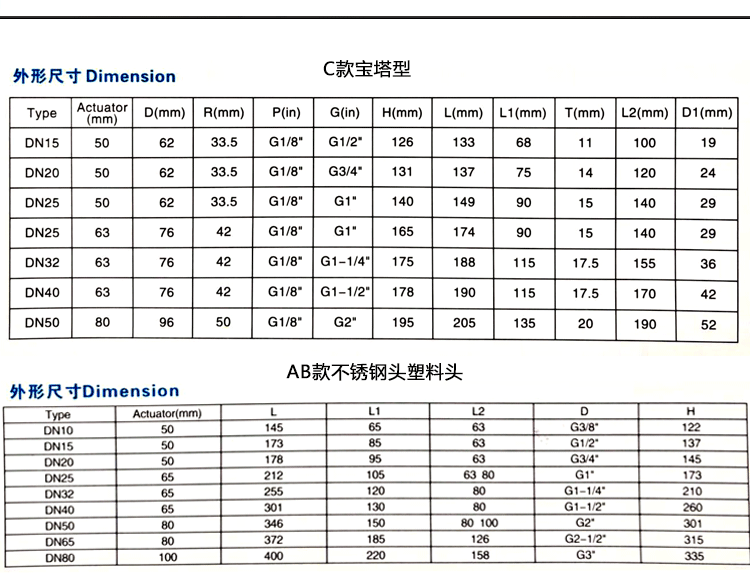

(5) sufficient torque force is required to tighten the connection between the valve body and the pipe. The torque force values for each dimension are as follows: DN15 is 40Nm, DN20 is 50Nm, DN25 is 70Nm, DN32 is 150Nm, DN40 is 150Nm, DN50 is 170Nm, DN80 is 240Nm, and DN100 is 300Nm.

6, when installing, please ensure that there is no residue inside the pipe and at the interface.

7, after installation, detection and connection has been sealed, no leakage, can be used.
