Prefill valve RCF-40A1

Prefill valve RCF-40A1 Prefill valve RCF-40A1 Prefill valve RCF-40A1 Prefill valve RCF-40A1
Product name : Prefill valve RCF-40A1
Item :
Details :

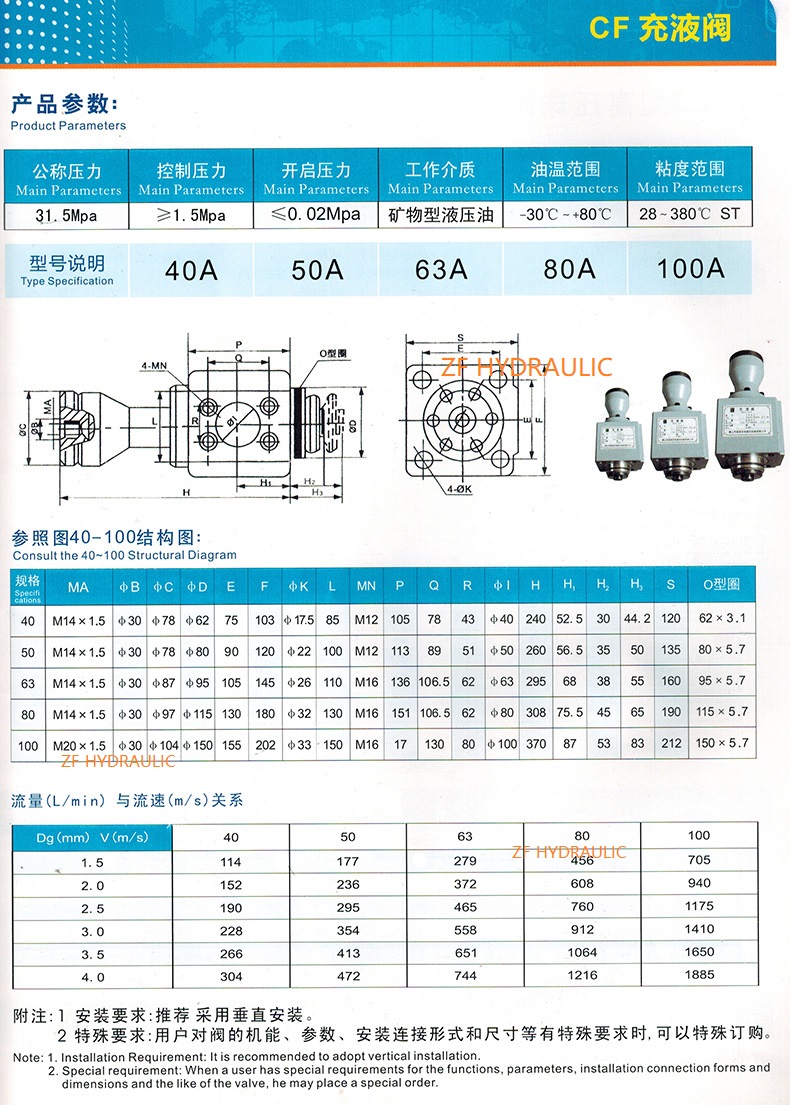

Prefill valve RCF-40A1

How to order:
RCF series filling valve is A kind of liquid control one-way valve, one direction stop flow, the other direction free flow (A to B); The pilot action is achieved by hydraulic pressure of the control spool supplied by the oil port X, which directly opens the main valve (no discharge characteristic). For the reduced pressure characteristic valve, the pilot valve opens and then the main valve opens. The opening and closing time can be adjusted by the one-way throttle valve installed on the pilot oil path (the valve is designed and installed by the user).


Prefill valve RCF-50A1, prefill valve RCF-63A1, prefill valve RCF-80A1, prefill valve RCF-100A1, valve factory.
Hydraulic prefill valve CF-50A1, prefill valve CF-63A1, prefill valve CF-80A1, prefill valve CF-100A1, export  valves.

Order no. Ls-342, processing custom no. Ls-343

Type control valve material cast iron model RCF-80A

Brand ZF Hydraulic, Hydraulic machinery products alias filling valve

Applicable medium oil applicable temperature (90 ℃) nominal pressure (MPa) 31.5
