Valves DG.DT.Direct Type Relief Valves DG,DT-02 |
|
| Product name : Valves DG.DT.Direct Type Relief Valves DG,DT-02 |
| Item : 2019410203158 |
| Details : |

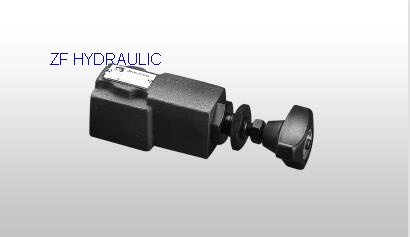

Valves DG.DT.Direct Type Relief Valves DG,DT-02
SPECIFICATION
| MODLE |
MAX.OPERATING
PRESSURE (kgf/cm 2 ) |
PRESSURE ADJ.RANGE
kgf/cm 2 |
RATEDFLOW
l/min |
WEIGHT
kg |
THREADED
CONNECTIONS |
SUB-PLATE
MOUNTING |
250 |
1 : 7-70
2 : 7-140
3 : 7-210
|
16 |
1.5 |
1.5 |
| DT-02- ※ |
DG-02- ※ |
HOW TO ORDER
| DG |
- |
02 |
- |
1 |
- |
30 |
|
|
| |
|
|
|
|
|
|
|
|
 |
|
DESIGN NUMBER
30: STANDARD TYPE |
| |
|
|
 |
|
PRESSURE ADJUSTING RANGE
1: 7-70 kgf/cm 2 2: 7-140 kgf/cm 2
3: 7-210 kgf/cm 2 |
| |
|
|
|
|
VALVE SIZE
02: 1/4” |
| |
|
|
 |
|
MOUNTING
DG: SUB-PLATE MOUNTING
DT: THREADED CONNECTIONS |
ATTACHMENT
| MODLE |
SOC HOL CAP SCREW |
| DG-02 |
M5 x 45L…….4pcs
|
Valves DG.DT.Direct Type Relief Valves DG,DT-02 DT-02-2-30
Valves DG.DT.Direct Type Relief Valves DG,DT-02 DG-02-2-30
Valves DG.DT.Direct Type Relief Valves DG,DT-02 DG-02-3-30
Valves DG.DT.Direct Type Relief Valves DG,DT-02 DT-02-1-30
Valves DG.DT.Direct Type Relief Valves DG,DT-02 DT-02-1-30
|
 |
