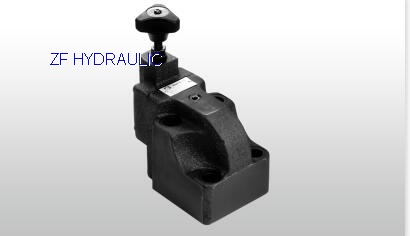

Valves MCA.Back Valves MCA-03-1-10-1PN-30-A

Product name : Valves MCA.Back Valves MCA-03-1-10-1PN-30-A

Item : 2019411174114

Details :

SPECIFICATION：

MODLE		MAX.OPERATING PRESSURE kgf/cm ²	PRESSURE ADJ. RANGE kgf/cm ²	MAX. FLOW l/min	WEIGHT kg
MCA-03-※-10-※	MCA-03-※-21-※	250	1 : 7-70 2 : 7-140 3 : 7-210	100	7.5	6.8
MCA-06-※-11-※				200	9.0
MCA-10-※-10-※	MCA-10-※-21-※			400	16	15.3

HOW TO ORDER

MCA	-	03	-	1	-	10	-	1PN	-	30	-	A

														SPRING SERIAL NUMBER

														DESIGN NUMBER 30 : STANDARD TYPE 32 : THRUST RING LINK TYPE

														NO CODE STANDARD 1PN : NORMALLY VENTED 1NP : ENERGIZED TO VENT

														VALVE TYEP 10 : PILOT OPERATED TYPE 11 : ONLY 06 TYPE 21 : LOW NOISE TYPE

														PRESSURE ADJUSTING RANGE 1 : 7-70 kgf/cm ²2 : 7-140 kgf/cm ² 3 : 7-210 kgf/cm ²

														VALVE SIZE 03 : 3/8” 06 : 3/4” 10 : 1-1/4”

														SERIES NUMBER

FUNCTIONAL DESCRIPTION

MODLE	SOC HOL CAP SCREW
MCA-03-※-10	M12 X 115L …2pcs M12 X 135L …2pcs
MCA-06-※-11	M16 X 75L …2pcs M16 X 115L …2pcs
MCA-10-※-10	M20 X 150L …2pcs M20 X 170L …2pcs
MCA-03-※-21	M12 X 80L …4pcs
MCA-10-※-21	M20 X 135L …4pcs
