Sumitomo QT type QT23-4 high pressure internal gear pump

Product name : Sumitomo QT type QT23-4 high pressure internal gear pump

Item :

Details :

Sumitomo QT type QT23-4 high pressure internal gear pump

High pressure internal gear pump QT model instructions :

-25

-A

Seris

size

Pressure type

Theory flow cc/rev

rotation and oil port

optional

Design no

Internal gear pump

2,3,4,5,6

3：high pressure pump

4,5,6.3,8,10,12.5,16,20,25
31.5,40,50,63,80,100,125

no:clockwise F(right)
L:anticlockwise E(left)

H:high pressure seals

V: Phosphate ester by using

*:other speacial

Note：H：with high pressure seals(oil in pressure less than 2kgf/cm2)

High pressure internal gear pump QT specification:

Model	Work pressure kgf/cm2		Power N KW	flow/min when no loads
	Work pressure kgf/cm2		Power N KW	60HZ		50HZ
	Rate PR	Max MP	Rate pressure and 1500rpm’s Power	6P motor	4P motor	6P motor	4P motor
	Rate PR	Max MP	Rate pressure and 1500rpm’s Power	1200rpm	1800rpm	1000rpm	1500rpm
Q23-4	250	320	3.0	-	7.5	-	6.4
QT23-5			3.5	6.5	9.8	5.4	8.2
QT23-6.3			4.3	7.9	11.9	6.5	9.9
QT23-8			5.4	9.8	14.8	8.2	12.3
QT33-10			6.8	11.9	17.9	9.9	14.9
QT33-12.5			8.6	15.0	22.6	12.5	18.8
QT33-16			10.6	18.6	28.0	15.5	23.3
QT43-20			13.7	24.1	36.3	20.0	30.2
QT43-25			16.8	29.9	45.0	24.8	37.4
QT43-31.5			21.6	38.5	57.9	32.0	48.2
QT53-40			26.1	45.7	70.3	38.9	58.5
QT53-50			33.5	60.3	90.6	50.2	75.5
QT53-63			41.9	75.9	114.0	63.2	95.0
QT63-80			52.7	95.6	143.7	79.6	119.7
QT63-100			66.1	120.3	181.2	100.4	150.9
QT63-125			81.3	149.0	223.8	124.1	186.4

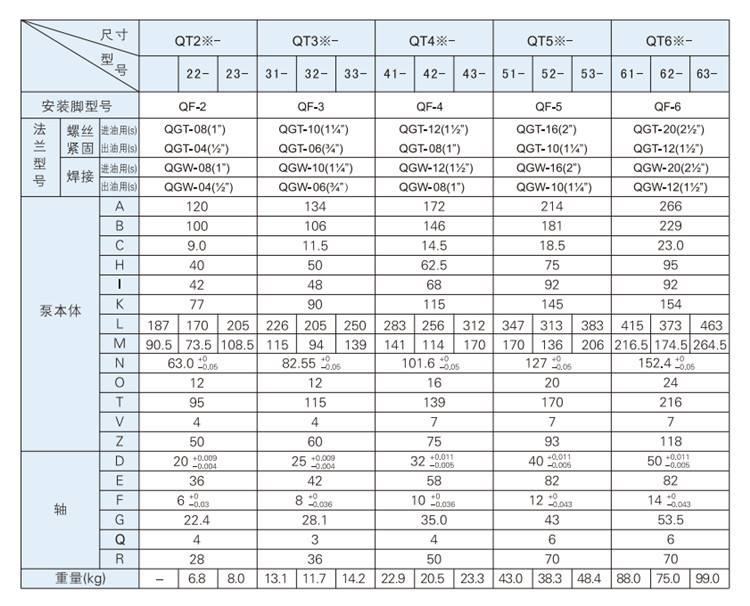

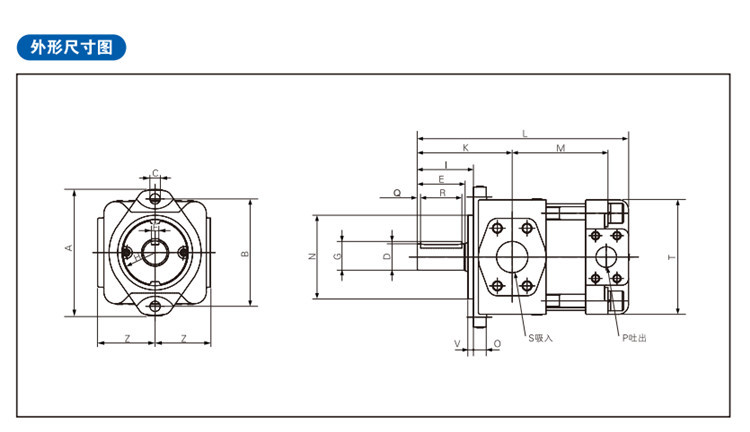

Drawing size:

Sumitomo Hydraulic Internal Gear Pump QT23-4 Features:

1.Special gear design, low noise, stable audio frequency under high-speed operation

2. Wear resistance under high-speed operation, simple mechanical structure, the high-grade hydraulic oil is used to reduce abrasion of the machinery surface and functional parts.

3. QT pump can be under high-speed operation at 250bar, it is not easy to cause abrasion of parts by using the common hydraulic oil.

4. Low pressure fluctuation, QT pump can prevent pressure wave, so it is an ideal machine with precise speed control and low noise, QT internal gear pump with smooth contact of the internal gear, mute operation

Japan-Sumitomo Internal Gear Pump

(Sumitomo is mainly engaged in injection molding machine, die casting machine, oil press, hydraulic pump (variable pump, vane pump, gear pump), QT internal gear pump (antiwear hydraulic oil viscosity 40cst (ISOVG32 oil, oil temperature: 50℃), revolving speed: 1500r/min, inlet pressure: 0MPa)
