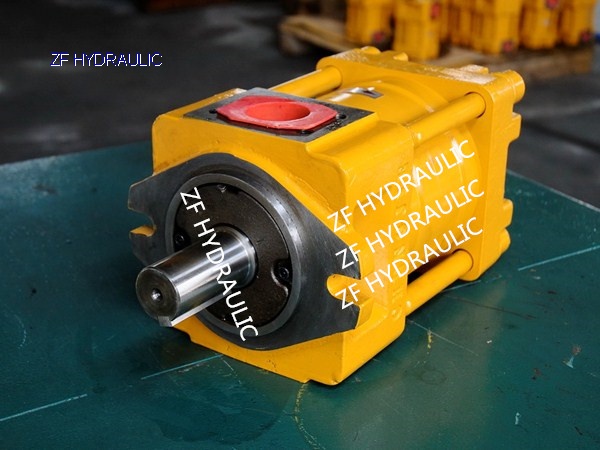

Hydraulic Chengjie internal gear pump NT5-D100F, Medium pressure type

Product name : Hydraulic Chengjie internal gear pump NT5-D100F, Medium pressure type

Item :

Details :

How to order:

NT gear pump drawing.jpg

Drawing size:

Series	NT2-			NT3-			NT4-			NT5-
Type	C	D	G	C	D	G	C	D	G	C	D	G
A	134			172			214			266
B	metric	109		140			180			224
	British	106		146			181			229
C	11			14			18			23
I	48			68			92			92
K	90			115			145			154
L	226	205	250	283	245	312	347	313	383	415	373	463
M	115	94	139	141	114	170	170	136	206	216.5	174.5	264.5
N	metric	Φ80h8		Φ100h8			Φ1250h8			Φ160h8
	British	Φ82.55 0/-0.05		Φ101.6 0/-0.05			Φ127.0 0/-0.05			Φ152.4 0/-0.05
O	12			16			20			24
T	115			139			170			216
V	4			7			7			7
Z	60			75			93			118
D	Φ25+0.009/-0.004			Φ32+0.011/-0.005			Φ40+0.011/-0.005			Φ50+0.011/-0.005
E	42			58			82			82
F	8 0/-0.036			10 0/-0.036			12 0/-0.043			14 0/-0.043
G	28.1			35.0			43.0			53.5
Q	36			50			70			70
S	Φ30			Φ38			Φ50			Φ64
P	Φ20			Φ25			Φ30			Φ38
X1	30			36			43			51
X2	22			26			30			36
Y1	59			70			78			89
Y2	48			52			59			70
4-d1	M10*25			M12*30			M12*30			M12*30
4-d2	M10*25			M10*25			M10*25			M12*30
Weight(KG)	13.1	11.7	14.2	22.9	20.5	23.3	43.0	38.3	48.4	88.0	75.0	99.0

The medium pressure type models:

Steel Chengjie gear pump NT2-D10F, iron gear pump NT2-D12F, chengjie steel gear pump NT2-D16F, gear pump NT3-D20F, pump NT3-D25F,NT3-D32F,NT4-D40F,NT4-D50F,NT4-D63F,NT5-D80F,NT5-D100F, Chengjie gear pump manufacturer NT5-D125F

Strengths:Silent,long life,low pulsation,good oil inhalation,low sensitive to oil pollution and reliable working performance.
