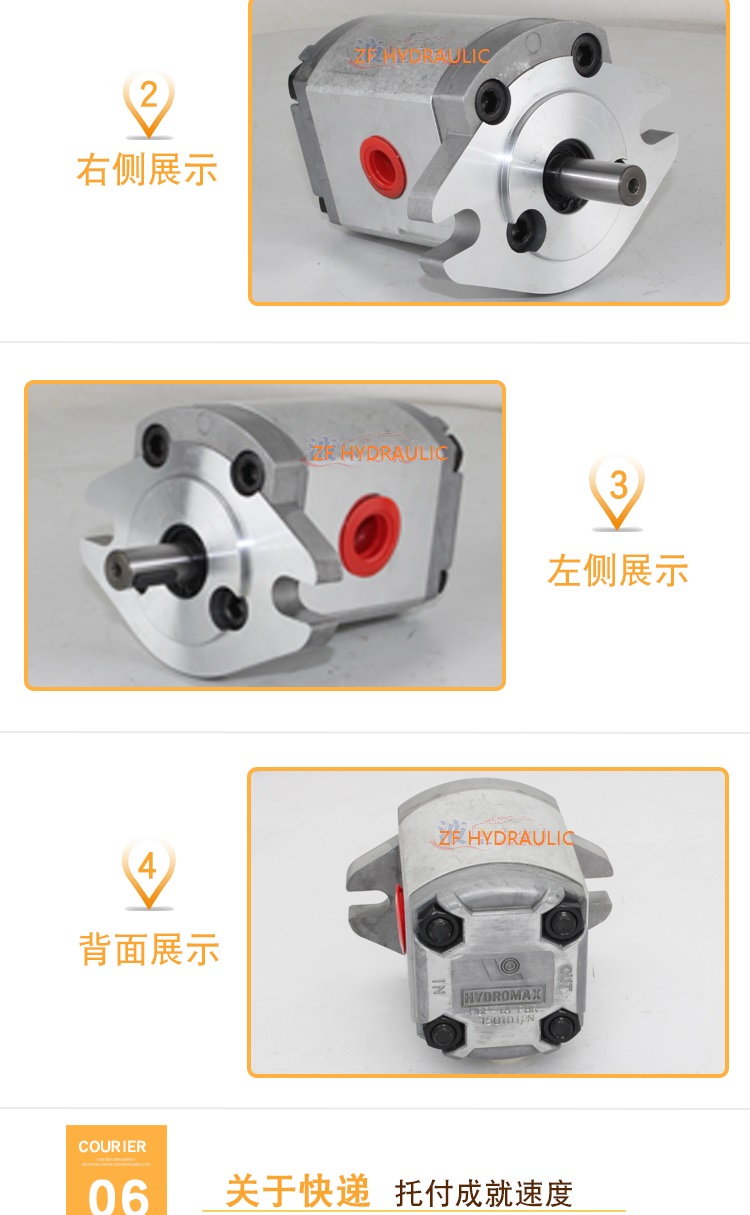

Hydraulic gear pump HGP-1A-F3R-X-2B for sale

Hydraulic gear pump HGP-1A-F3R-X-2B for sale Hydraulic gear pump HGP-1A-F3R-X-2B for sale Hydraulic gear pump HGP-1A-F3R-X-2B for sale
Product name : Hydraulic gear pump HGP-1A-F3R-X-2B for sale
Item :
Details :
 Hydraulic gear pump HGP-1A-F3R-X-2B for sale
Features
HGP-1A Gear Pump function well under high temperature with Viton’s seal. It can also run under high pressure with the oil less bearing design.
Model Definition
HGP-1A
-F
8
-R
-X
-2B
Series
Installation Type
Displacement
(cc/rev)
Input Rotation
Input Shaft
Front Flange Cover
Gear Pump 1A Series
F: Flange Mounting
L: Foot Mounting
1:1
2:2
3:3
4:4
5:5
6:6
8:7.8
R: Clockwise
L: Anti-clockwise
X: Straight Keyed
Y: Spline
2B : SAE 2-Bolt
4BD: DIN 4-bolt
4DE: European 4-bolt
Specification
Model
Displacement
(cc/rev)
Pressure
(bar)
Speed
(RPM)
Weight
(kg)
Rated
Max.
Rate
Min.
Max.
HGP-1A-F1
1
210
250
1800
1000
4500
1.00
HGP-1A-F2
2
600
4500
1.05
HGP-1A-F3
3
600
4500
1.15
HGP-1A-F4
4
600
4500
1.18
HGP-1A-F5
5
600
3200
1.20
HGP-1A-F6
6
600
3200
1.30
HGP-1A-F8
7.8
175
210
600
3200
1.40

Product introduction:

HGP series high pressure gear pump using high strength casting, radial sealing using the addendum sweep chamber, axial seal using floating pressure balance side plate, thus to achieve high efficiency. The pump has small volume, light weight, good performance, reliable work etc. Ontology adopt the aluminum alloy, high precision molding design, low noise, long service life. Especially suitable for petroleum, chemical industry, grain and oil, building materials, daily chemical, construction, electricity and asphalt mixing station departments and industry fuel injection occasion. Also more suitable for work pressure stable, long-term continuous working circumstance, such as: strong lubrication system, etc. Lifting the transport machinery, construction machinery, petroleum machinery, agricultural machinery, and other mechanical equipment. Could with low pressure mass flow vane pump to be high and low pump combination, rational utilization of main energy, cost saving.

Outside size:





定量齿轮泵定量齿轮泵定量齿轮泵

Model
DimensionA
mm
DimensionB
mm
C–Inlet
D–Outlet
HGP–1A–F08*
75
36.5
3 / 8”PT
3 / 8”PT
HGP–1A–F1*
77
38.5
3 / 8”PT
3 / 8”PT
HGP–1A–F2*
80.5
40.25
3 / 8”PT
3 / 8”PT
HGP–1A–F3*
86
43
3 / 8”PT
3 / 8”PT
HGP–1A–F4*
88
44
3 / 8”PT
3 / 8”PT
HGP–1A–F5*
92
46
3 / 8”PT
3 / 8”PT
HGP–1A–F6*
96
48
3 / 8”PT
3 / 8”PT
HGP–1A–F8*
102
51
1/ 2”PT
3 / 8”PT





Features:

This series of gear pump maximum pressure 250bar. Can be combined with a series of SAE, DIN, European standard mandrel, flange and inlet and outlet assembly type.

The finished high-tensile aluminum extruded alloy body and die-cast front and rear covers ensure high volume efficiency, mechanical efficiency and low noise.

VITON oil seal fittings can withstand high temperature.

Special oil-free bearing design can operate under high pressure
