Hydraulic gear pump HGP-1A-F4R-X-2B for sale |
|
|
| Product name : Hydraulic gear pump HGP-1A-F4R-X-2B for sale |
| Item : |
| Details : |

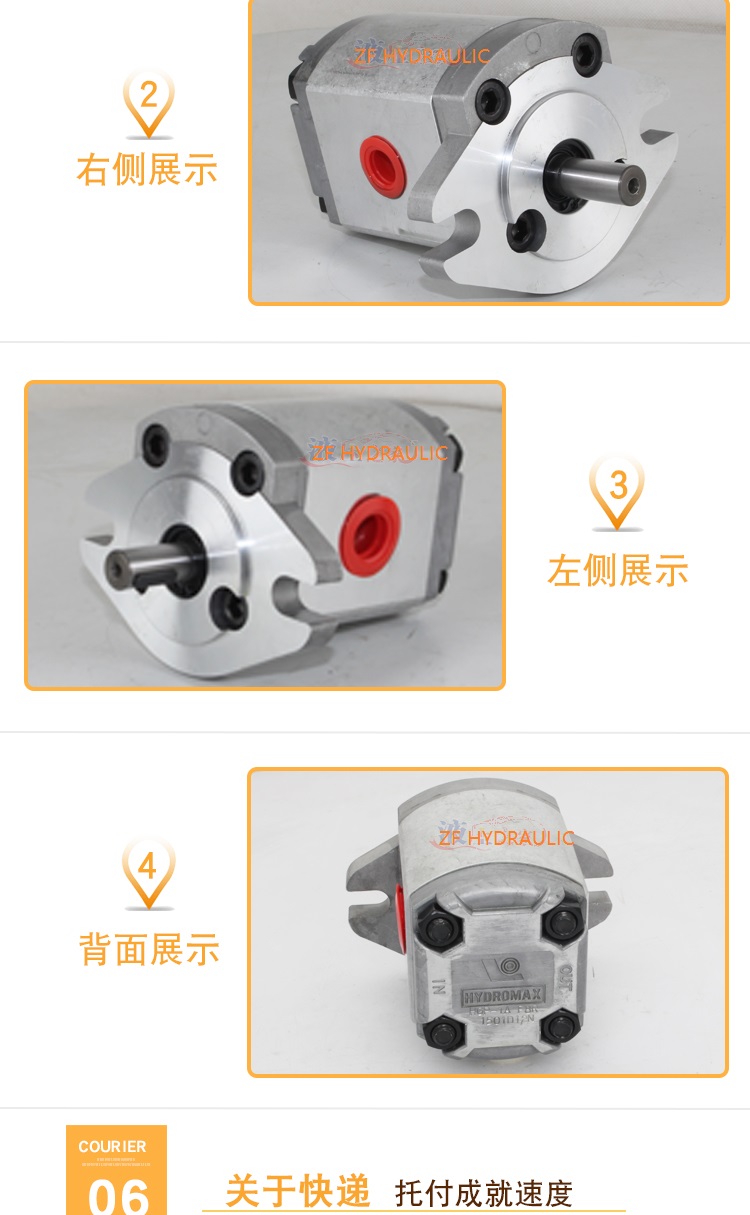

Hydraulic gear pump HGP-1A-F4R-X-2B for sale
Features
HGP-1A Gear Pump function well under high temperature with Viton’s seal. It can also run under high pressure with the oil less bearing design.
Model Definition
|
HGP-1A
|
-F
|
8
|
-R
|
-X
|
-2B
|
|
Series
|
Installation Type
|
Displacement
(cc/rev)
|
Input Rotation
|
Input Shaft
|
Front Flange Cover
|
|
Gear Pump 1A Series
|
F: Flange Mounting
L: Foot Mounting
|
1：1
2：2
3：3
4：4
5：5
6：6
8：7.8
|
R: Clockwise
L: Anti-clockwise
|
X: Straight Keyed
Y: Spline
|
2B : SAE 2-Bolt
4BD: DIN 4-bolt
4DE: European 4-bolt
|
|
Model
|
Displacement
(cc/rev)
|
Pressure
(bar)
|
Speed
(RPM)
|
Weight
(kg)
|
|
Rated
|
Max.
|
Rate
|
Min.
|
Max.
|
|
HGP-1A-F1
|
1
|
210
|
250
|
1800
|
1000
|
4500
|
1.00
|
|
HGP-1A-F2
|
2
|
600
|
4500
|
1.05
|
|
HGP-1A-F3
|
3
|
600
|
4500
|
1.15
|
|
HGP-1A-F4
|
4
|
600
|
4500
|
1.18
|
|
HGP-1A-F5
|
5
|
600
|
3200
|
1.20
|
|
HGP-1A-F6
|
6
|
600
|
3200
|
1.30
|
|
HGP-1A-F8
|
7.8
|
175
|
210
|
600
|
3200
|
1.40
|
Product introduction:
HGP series high pressure gear pump using high strength casting, radial sealing using the addendum sweep chamber, axial seal using floating pressure balance side plate, thus to achieve high efficiency. The pump has small volume, light weight, good performance, reliable work etc. Ontology adopt the aluminum alloy, high precision molding design, low noise, long service life. Especially suitable for petroleum, chemical industry, grain and oil, building materials, daily chemical, construction, electricity and asphalt mixing station departments and industry fuel injection occasion. Also more suitable for work pressure stable, long-term continuous working circumstance, such as: strong lubrication system, etc. Lifting the transport machinery, construction machinery, petroleum machinery, agricultural machinery, and other mechanical equipment. Could with low pressure mass flow vane pump to be high and low pump combination, rational utilization of main energy, cost saving.
Outside size:

|
Model
|
DimensionA
mm
|
DimensionB
mm
|
C–Inlet
|
D–Outlet
|
|
HGP–1A–F08*
|
75
|
36.5
|
3 / 8”PT
|
3 / 8”PT
|
|
HGP–1A–F1*
|
77
|
38.5
|
3 / 8”PT
|
3 / 8”PT
|
|
HGP–1A–F2*
|
80.5
|
40.25
|
3 / 8”PT
|
3 / 8”PT
|
|
HGP–1A–F3*
|
86
|
43
|
3 / 8”PT
|
3 / 8”PT
|
|
HGP–1A–F4*
|
88
|
44
|
3 / 8”PT
|
3 / 8”PT
|
|
HGP–1A–F5*
|
92
|
46
|
3 / 8”PT
|
3 / 8”PT
|
|
HGP–1A–F6*
|
96
|
48
|
3 / 8”PT
|
3 / 8”PT
|
|
HGP–1A–F8*
|
102
|
51
|
1/ 2”PT
|
3 / 8”PT
|
|
 |
