Hydraulic internal gear pump IGP5-H050 , high pressure type

Hydraulic internal gear pump IGP5-H050 , high pressure type

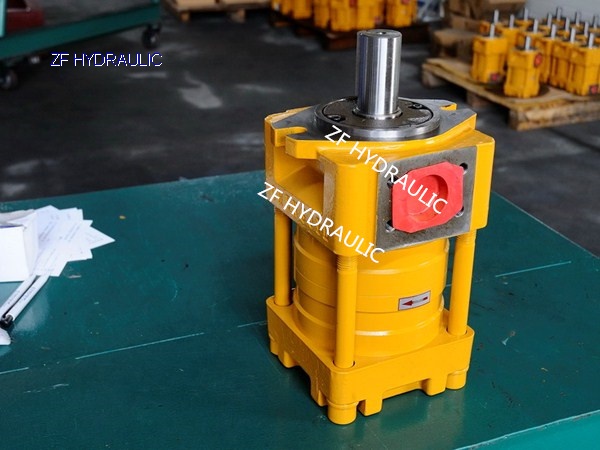

Product name : Hydraulic internal gear pump IGP5-H050 , high pressure type
Item :
Details :
Hydraulic internal gear pump IGP5-H050 , high pressure type
How to order:

Drawing size:

Series IGP3- IGP4- IGP5- IGP6-
Type C D G C D G C D G C D G
A 134 172 214 266

B
metric  109 140 180 224
British  106 146 181 229
C 11 14 18 23
I 48 68 92 92
K 90 115 145 154
L 226 205 250 283 245 312 347 313 383 415 373 463
M 115 94 139 141 114 170 170 136 206 216.5 174.5 264.5

N
metric  Φ80h8 Φ100h8 Φ1250h8 Φ160h8
British  Φ82.55 0/-0.05 Φ101.6 0/-0.05 Φ127.0 0/-0.05 Φ152.4 0/-0.05
O 12 16 20 24
T 115 139 170 216
V 4 7 7 7
Z 60 75 93 118
D Φ25+0.009/-0.004 Φ32+0.011/-0.005 Φ40+0.011/-0.005 Φ50+0.011/-0.005
E 42 58 82 82
F 8  0/-0.036 10   0/-0.036 12   0/-0.043 14   0/-0.043
G 28.1 35.0 43.0 53.5
Q 36 50 70 70
S Φ30 Φ38 Φ50 Φ64
P Φ20 Φ25 Φ30 Φ38
X1 30 36 43 51
X2 22 26 30 36
Y1 59 70 78 89
Y2 48 52 59 70
4-d1 M10*25 M12*30 M12*30 M12*30
4-d2 M10*25 M10*25 M10*25 M12*30
Weight(KG) 13.1 11.7 14.2 22.9 20.5 23.3 43.0 38.3 48.4 88.0 75.0 99.0Other models:

Other IGP type internal gear pump models:

IGP3-H010  IGP3-M010  IGP3-L020

IGP3-H012  IGP3-M012  IGP3-L025

IGP3-H016  IGP3-M016  IGP3-L032

IGP4-H020  IGP4-M020  IGP4-L040

IGP4-H025  IGP4-M025  IGP4-L050

IGP4-H032  IGP4-M032  IGP4-L063

IGP5-H040  IGP5-M040  IGP5-L080

IGP5-H050  IGP5-M050  IGP5-L100

IGP5-H063  IGP5-M063  IGP5-L125

IGP6-H080  IGP6-M080  IGP6-L160

IGP6-H100  IGP6-M100  IGP6-L200

IGP6-H125  IGP6-M125  IGP6-L250
