Hydraulic gear pump HGP-3A-F13R-X-2B for sale
Features
HGP-3A Gear Pump function well under high temperature with Viton’s seal. It can also run under high pressure with the oil less bearing design.
Model Definition
|
HGP-3A
|
-F
|
8
|
-R
|
-X
|
-4BJ
|
|
Series
|
Installation Type
|
Displacement
(cc/rev)
|
Input Rotation
|
Input Shaft
|
Front Flange Cover
|
|
Gear Pump 3A Series
|
F: Flange Mounting
L: Foot Mounting
|
6,8,11,13,14,17,19,23,25,28,30
|
R: Clockwise
L: Anti-clockwise
|
X: Straight Keyed
Y: Spline
|
2B: SAE 2-Bolt
4BJ: JIS 4-Bolt
|
Specification
|
Model
|
Displacement
(cc/rev)
|
Pressure
(bar)
|
Speed
(RPM)
|
Port Size
|
Weight
(kg)
|
|
Rated
|
Max.
|
Rate
|
Min.
|
Max.
|
In
|
Out
|
|
HGP-3A-*6*
|
6
|
210
|
250
|
1800
|
700
|
3000
|
PT3/4
|
PT1/2
|
2.32
|
|
HGP-3A-*8*
|
8
|
2.40
|
|
HGP-3A-*11*
|
11
|
600
|
2.53
|
|
HGP-3A-*13*
|
13
|
2.60
|
|
HGP-3A-*14*
|
14.3
|
500
|
2.69
|
|
HGP-3A-*17*
|
16.5
|
2.81
|
|
HGP-3A-*19*
|
19.2
|
2.92
|
|
HGP-3A-*23*
|
23
|
3.11
|
|
HGP-3A-*25*
|
25
|
175
|
210
|
PT1
|
PT3/4
|
3.20
|
|
HGP-3A-*28*
|
28
|
3.29
|
|
HGP-3A-*30*
|
30
|
3.38
|
Product introduction:
HGP series high pressure gear pump using high strength casting, radial sealing using the addendum sweep chamber, axial seal using floating pressure balance side plate, thus to achieve high efficiency. The pump has small volume, light weight, good performance, reliable work etc. Ontology adopt the aluminum alloy, high precision molding design, low noise, long service life. Especially suitable for petroleum, chemical industry, grain and oil, building materials, daily chemical, construction, electricity and asphalt mixing station departments and industry fuel injection occasion. Also more suitable for work pressure stable, long-term continuous working circumstance, such as: strong lubrication system, etc. Lifting the transport machinery, construction machinery, petroleum machinery, agricultural machinery, and other mechanical equipment. Could with low pressure mass flow vane pump to be high and low pump combination, rational utilization of main energy, cost saving.

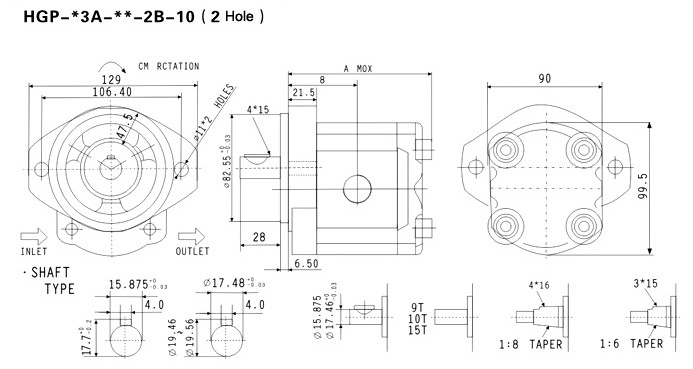

Outside size:
Taiwan HYDROMAX HGP series gear pump selection guide：
HGP series gear pumps have hgp-05a, hgp-1a, hgp-2a, hgp-3a, etc., their working pressure is 21MPA, the highest instantaneous pressure can reach 25MPA, belongs to the high-pressure gear pump.
Taiwan HYDROMAX HGP series high pressure gear pump adopts high precision gear, high strength aluminum alloy shell, light weight, simple structure, low noise under high speed operation, this series of high pressure gear pump can be used with the direct motor of the inner shaft, easy to disassemble and assemble, can be widely used in automobile, construction machinery, ship and other hydraulic system.
How to select hgp-05a, hgp-1a, hgp-2a and hgp-3a? Can see your system first how much pressure, if your system working pressure in the 21MPA or so, the maximum pressure is not more than 25MPA, you can use the HGP series gear pump.
Look at the hydraulic system displacement:
Rated system displacement of hgp-1a is 1-8 ml/r, corresponding models include hgp-1a-f1r, hgp-1a-f2r, hgp-1a-f3r, hgp-1a-f4r, hgp-1a-f5r, hgp-1a-f6r, hgp-1a-f7r, hgp-1a-f7r, hgp-1a-f8r.
Rated system displacement of hgp-2a is 2-12ml/r, corresponding models are hgp-2a-f2r, hgp-2a-f3r, hgp-2a-f4r, hgp-2a-f6r, hgp-2a-f8r, hgp-2a-f9r, hgp-2a-f11r, hgp-2a-f11r
The rated system displacement of hgp-3a is 6-30ml/r, corresponding models include hgp-3a-f6r, hgp-3a-f8r, hgp-3a-f11, hgp-3a-f13r, hgp-3a-f14r, hgp-3a-f17r, hgp-3a-f19r, hgp-3a-f23r, hgp-3a-f25r, hgp-3a-f28r, hgp-3a-f30r.
|
