Hydraulic internal gear pump NT5-D80F, Medium pressure type

Hydraulic internal gear pump NT5-D80F, Medium pressure type

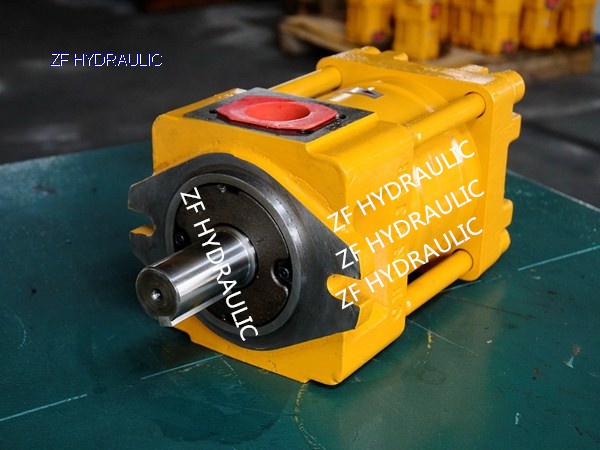

Product name : Hydraulic internal gear pump NT5-D80F, Medium pressure type
Item :
Details :
Hydraulic internal gear pump NT5-D80F, Medium pressure type

How to order:



NT gear pump drawing.jpg

Drawing size:

Series NT2- NT3- NT4- NT5-
Type C D G C D G C D G C D G
A 134 172 214 266

B
metric  109 140 180 224
British  106 146 181 229
C 11 14 18 23
I 48 68 92 92
K 90 115 145 154
L 226 205 250 283 245 312 347 313 383 415 373 463
M 115 94 139 141 114 170 170 136 206 216.5 174.5 264.5

N
metric  Φ80h8 Φ100h8 Φ1250h8 Φ160h8
British  Φ82.55 0/-0.05 Φ101.6 0/-0.05 Φ127.0 0/-0.05 Φ152.4 0/-0.05
O 12 16 20 24
T 115 139 170 216
V 4 7 7 7
Z 60 75 93 118
D Φ25+0.009/-0.004 Φ32+0.011/-0.005 Φ40+0.011/-0.005 Φ50+0.011/-0.005
E 42 58 82 82
F 8  0/-0.036 10   0/-0.036 12   0/-0.043 14   0/-0.043
G 28.1 35.0 43.0 53.5
Q 36 50 70 70
S Φ30 Φ38 Φ50 Φ64
P Φ20 Φ25 Φ30 Φ38
X1 30 36 43 51
X2 22 26 30 36
Y1 59 70 78 89
Y2 48 52 59 70
4-d1 M10*25 M12*30 M12*30 M12*30
4-d2 M10*25 M10*25 M10*25 M12*30
Weight(KG) 13.1 11.7 14.2 22.9 20.5 23.3 43.0 38.3 48.4 88.0 75.0 99.0

The medium pressure type models:

Hydraulic internal gear pump NT2-D10F, internal gear pump NT2-D12F, Chengjie brand internal gear pump NT2-D16F, Chengjie internal gear pump NT3-D20F, gear pump NT3-D25F, hydraulic pump NT3-D32F, hydraulic motor NT4-D40F, Chengjie NT4-D50F, Chengjie pump NT4-D63F, gear pump NT5-D80F, China gear pump NT5-D100F, gear pump NT5-D125F manufactuer, factoy. High quality.



Strengths:Silent,long life,low pulsation,good oil inhalation,low sensitive to oil pollution and reliable working performance.

This gear pump working Principle: The gear drives the ring gear to rotate, and the volume of the oil suction chamber is from small to large to generate vacuum oil absorption, and the volume of the oil discharge chamber is squeezed from large to small to discharge oil. Special gear: The tooth profile of the gear is straight, the tooth profile of the ring gear is a linear conjugate line, and there is almost no oil trapping during operation, which greatly reduces the noise and pressure pulsation of the pump. Two-stage boost: the first-stage gear pair inlet pressure is 0Mpa, the second-stage inlet pressure is 12.5Mpa, and the outlet pressure is 25Mpa. When the outlet pressure is 25Mpa, each gear pair only bears a pressure difference of 12.5Mpa, improving the pump. Working conditions extend the life of the pump.
This gear pump characteristics:
1. Low noise and low pulsation: The special tooth shape design (linear-linear conjugate line) makes the noise and pulsation of the oil pump work greatly reduced.
2, high pressure: using two-stage boost, working pressure up to 25Mpa, the highest pressure up to 32Mpa.
3. Long life: The pressure generated when the oil pump works, the sliding element is forcedly lubricated, and the wear is minimal, which improves the service life of the pump. This gear pump usage: Straight-tooth conjugate internal gear pump is an internationally advanced hydraulic power component. It has the advantages of simple structure, low noise, long life and low sensitivity to hydraulic oil pollution. It is widely used in plastic machinery, mining machinery, metallurgical machinery, Petrochemical machinery, precision machine tools, medical equipment and other hydraulic systems, such as: injection molding machines, rubber flat vulcanizing machines, die casting machines, punching and shearing machines, brick presses, etc.
