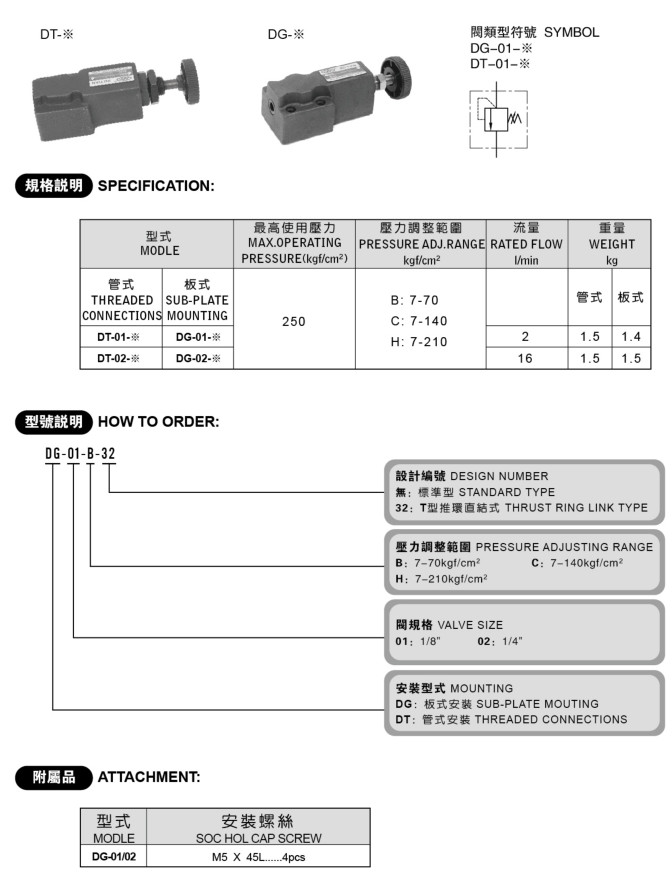

Yuken brand straight acting pipe relief valve DT-02-B

Product features:



1, straight moving type relief valves for small flow, high pressure regulation or as a safety valve.



2, remote control is a BG (T), BHG (T), a series of SBG pilot operated relief valve remote connections, this series of pressure at the relief valve as a remote control two or more pressure control.

Using the matters needing attention



Type 1, remote control pipe such as internal volume is larger, the vibration phenomena may occur, please use 4 mm piping.



2, and type of moving into remote control type are not identical, to other types of valve oil return pipe connection, return line should be directly back to the tank.



3, adjust the pressure regulating handle, the booster must slowly adjusted clockwise, buck the opposite direction, be sure to lock in fixed nut after regulating.
