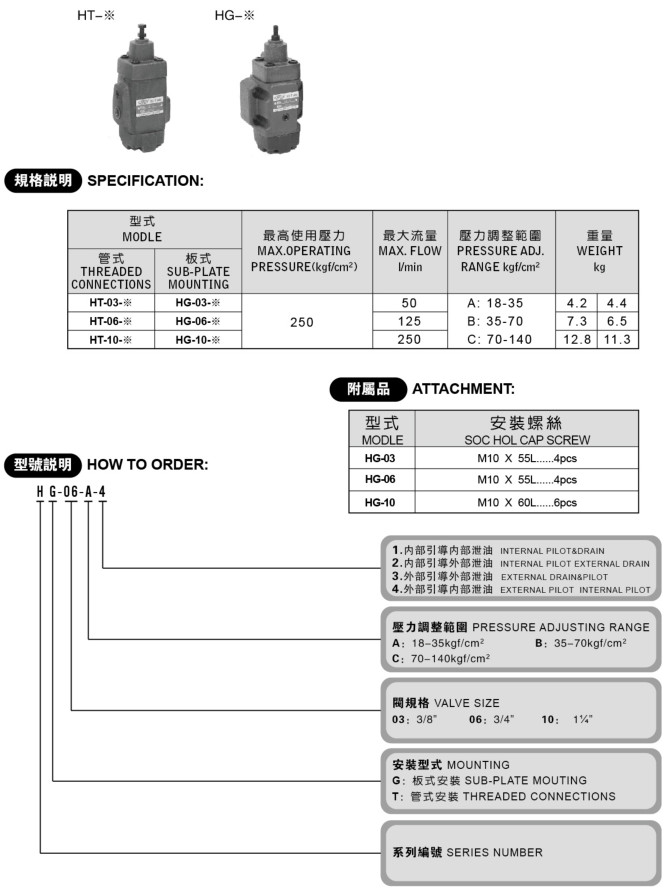

Yuken brand pressure control valve HT-03

Sequence valve, counterbalance valve characteristics:



1. This valve is a straight valve with oil control hole, which can be controlled either internally or externally. It can be used as overflow valve, sequence valve and unloading valve according to different combination.

2. HCG (HCT) is equipped with a one-way valve. The oil flow can flow freely from the secondary pressure oil port to the primary pressure oil port.

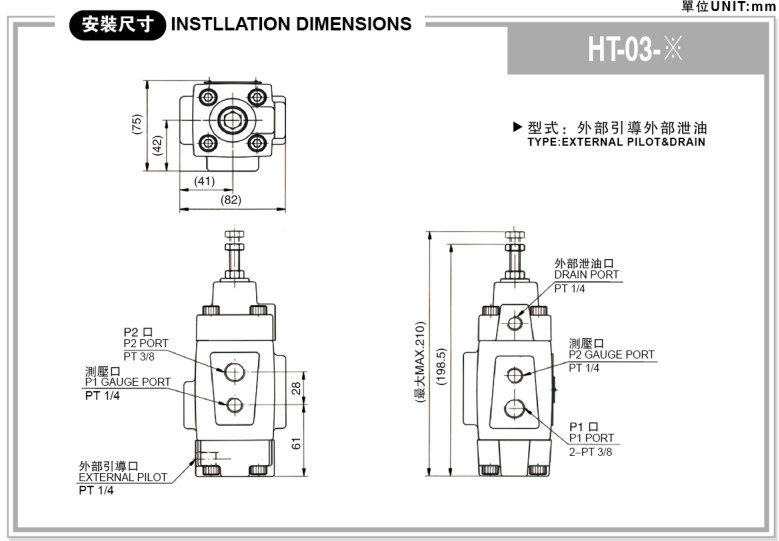

3. The installation size is in accordance with ISO 5781 standard.

4. It is widely used in hydraulic press, injection molding machine and special machine with two or more divergent circuits in hydraulic circuit.



Remark:



1. When the pressure is adjusted, loosen the lock nut and slowly turn the pressure adjusting screw. The clockwise direction means the pressure increases, while the counterclockwise direction means the pressure decreases.

2. The HT and HCT series have two primary pressure orifices, one of which can be used as the inlet and the other as the outlet, or in the case of blocking one of the orifices.
