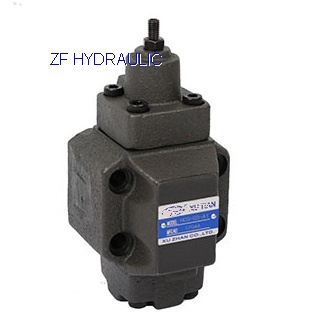

Yuken brand pressure control valve HCG-06

Sequence valve, counterbalance valve features:



1, this valve is a straight moving valve control oil hole, can internal control and external control. Function differently according to different combinations of low pressure relief valve, sequence valve and unloading valve.



2, HCG (HCT) with a one-way valve, oil flow from the secondary pressure oil free flow to a pressure oil mouth mouth, according to different combinations have different function against valve, a one-way valve sequence.



3, the size of the installation in accordance with ISO 5781 standard.



4, widely used in hydraulic press, injection molding machine and hydraulic loop there are two or more divisions of machine.



Remark:



1, pressure adjusting, loosen the lock nut, slowly turn the tensioner, clockwise for pressure, counterclockwise to decrease, adjustment shall be fixed lock nut.



2, HT, HCT series, there are two pressure mouth at a time, one can do the entrance, another to do export, or use plug plug one mouth under the condition of use.
