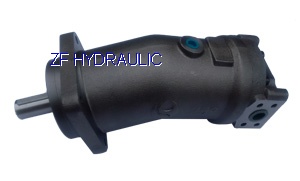

Rexroth Type A2F series A2F107R2P1 Fixed Displacement Axial Piston Pump / Motor |
|
| Product name : Rexroth Type A2F series A2F107R2P1 Fixed Displacement Axial Piston Pump / Motor |
| Item : |
| Details : |
Rexroth Type A2F series A2F107R2P1 Fixed Displacement Axial Piston Pump / Motor
How to order:
A2F6, A2F10, A2F12, A2F23, A2F28, A2F45, A2F55, A2F63,
A2F80, A2F107, A2F125, A2F160, A2F200, A2F250, A2F355, A2F500
Norminal Pressure: 350 bar. Peak pressure: 400 bar
Sample: A2F 55 R 2 P 1
|
A2F= Fixed displacement Pump / Motor
55 = Displacement (Vgmin ~Vgmax)
9.4 ml/r 10
11.6 ml/r 12
22.7 ml/r 23
28.1 ml/r 28
44.3 ml/r 45
54.8 ml/r 55
63.0 ml/r 63
80.0 ml/r 80
107 ml/r 107
125 ml/r 125
160 ml/r 160
200 ml/r 200
225 ml/r 225
250 ml/r 250
355 ml/r 355
500 ml/r 500
|
R= Direction of rotation
Clockwise R
Anti-clockwise L
Alternation W
2= Series
Series: size 10~160 1,2,3,4
Series: size 200~500 5
P= Shaft end
Keyed shaft GB1096-79 P
Splined shaft DIN 5480 Z
Splined shaf GB3478.1-83 S
1= Rear cover 1~6
|
Axial piston unit of bent axis design with fixed displacement, for use as either pump or motor in hydrostatic drives, in open or closed circuit.
If operated as a pump, the flow is proportional to the drive speed and displacement. If operated as a motor, the output speed is proportional to the swept volume and inversely proportional to displacement. The output torque increases with the pressure drop between the high and low pressure sides.
Features:
·Equivalent with original Rexroth same model.
·High performance rotary group with well-proven spherical control area with the advantages, self-centering low peripheral speed, high efficiency.
·Robust rolling bearing endure long service life.
·Drive shaft capable of adopting radial loading. |
 |
