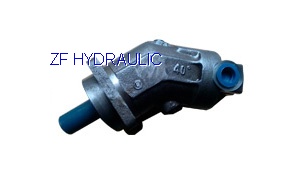

Rexroth type Hydraulic piston pump piston motor A2F32W6.1A2

Summary:

A2F6. 1 quantitative bending shaft structure of the axial plunger pump plunger cone, with a fixed displacement, used in the open or closed loop hydrostatic transmission pump or motor.

Quantitative plunger pump when the pump work, the flow rate is proportional to the driving speed and displacement.

Quantitative plunger pump when the motor is working, the output speed is proportional to the flow and is inversely proportional to the displacement.

Quantitative plunger pump output torque with the high voltage side to low voltage side pressure drop and increase.

Structure features:

Inclination of large components: all specifications are the same 40 ° inclination, give a high power, the weight of the smaller size, the best efficiency and economic structure.

With two whole cone piston sealing ring, patents, universal shaft cylinder driving.

Easy to install and maintenance of the bearing structure, provide a longer life.

New levels of modern design standard series.

Special series of modified with 1-4 series the same hydraulic joint, flange and the drive shaft specifications.
