P series Remote pressure control type piston pump P16-B3-F-R-S-01

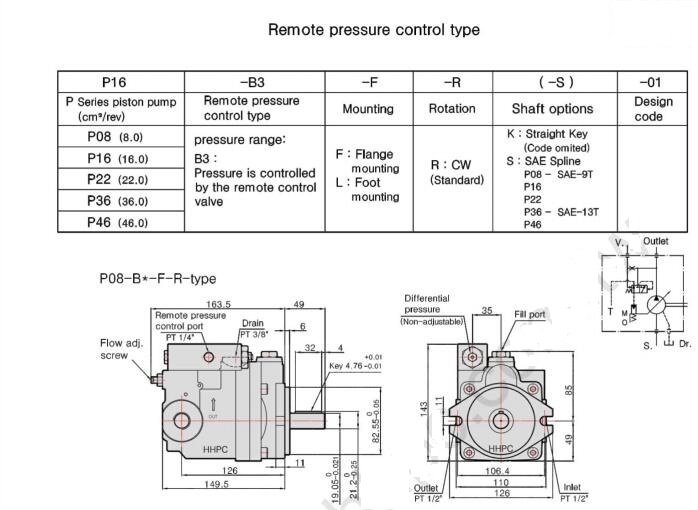

How to order:
Model：P16-B3-F-R-01
Brand：ZF HYDRAULIC
Control ways： Remote pressure control type
Mouting ways: Flange
Rotation：clockwise
Max displacement：16cm³/rev
Max pressure：30~215 kgf/cm²

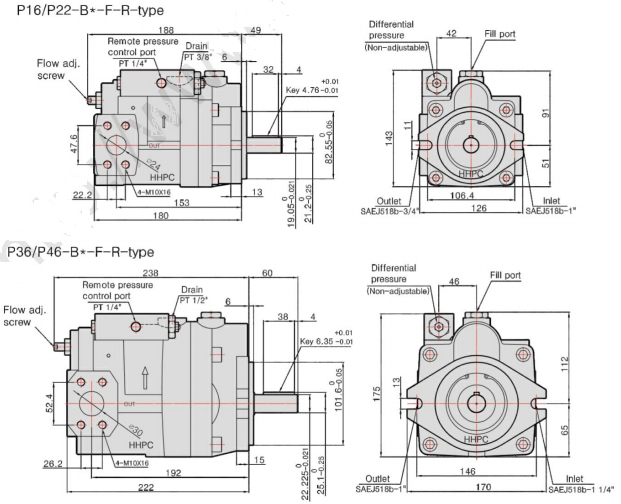

P16-B3-F-R-01 model specification.
The pressure can be controlled by using the remote relief valve or the multisage pressure control valve.
The discharge pressure can be adjusted by using the remote relief valve.
This series piston pumps other models:
Piston pump P08-B3-L-R-S-01, P22-B3-L-R-S-01, piston pump P36-B3-L-R-S-01, P56-B3-L-R-S-01
Piston pump P08-B3-L-R-S-01, P22-B3-L-R-S-01, piston pump P36-B3-L-R-S-01, P56-B3-L-R-S-01
Piston pump P08-B3-L-R-K-01, P22-B3-L-R-K-01, piston pump P36-B3-L-R-K-01, P56-B3-L-R-K-01
Piston pump P08-B3-L-R-K-01, P22-B3-L-R-K-01, piston pump P36-B3-L-R-K-01, P56-B3-L-R-K-01
Features of p series piston pump series:
1, the use of rigid structure and high speed low friction structure, so that its life, efficiency is more ideal.
2. New inclined plate through shaft structure, large piston compensation, greatly improve vibration noise and flow vibration.
3. Powerful through shaft design, variable connection, multi-connection or connection with other oil pumps.
4. Modular design makes the control mechanism more diversified, and the designer can easily change the control function by himself.
5, for the application of the open loop through the energy saving pump control system, can greatly improve the power consumption, oil temperature rise, system accuracy and life.
6, used in vehicle industry, shipping, forging press, tire machine, plastic machine, machine tool.
