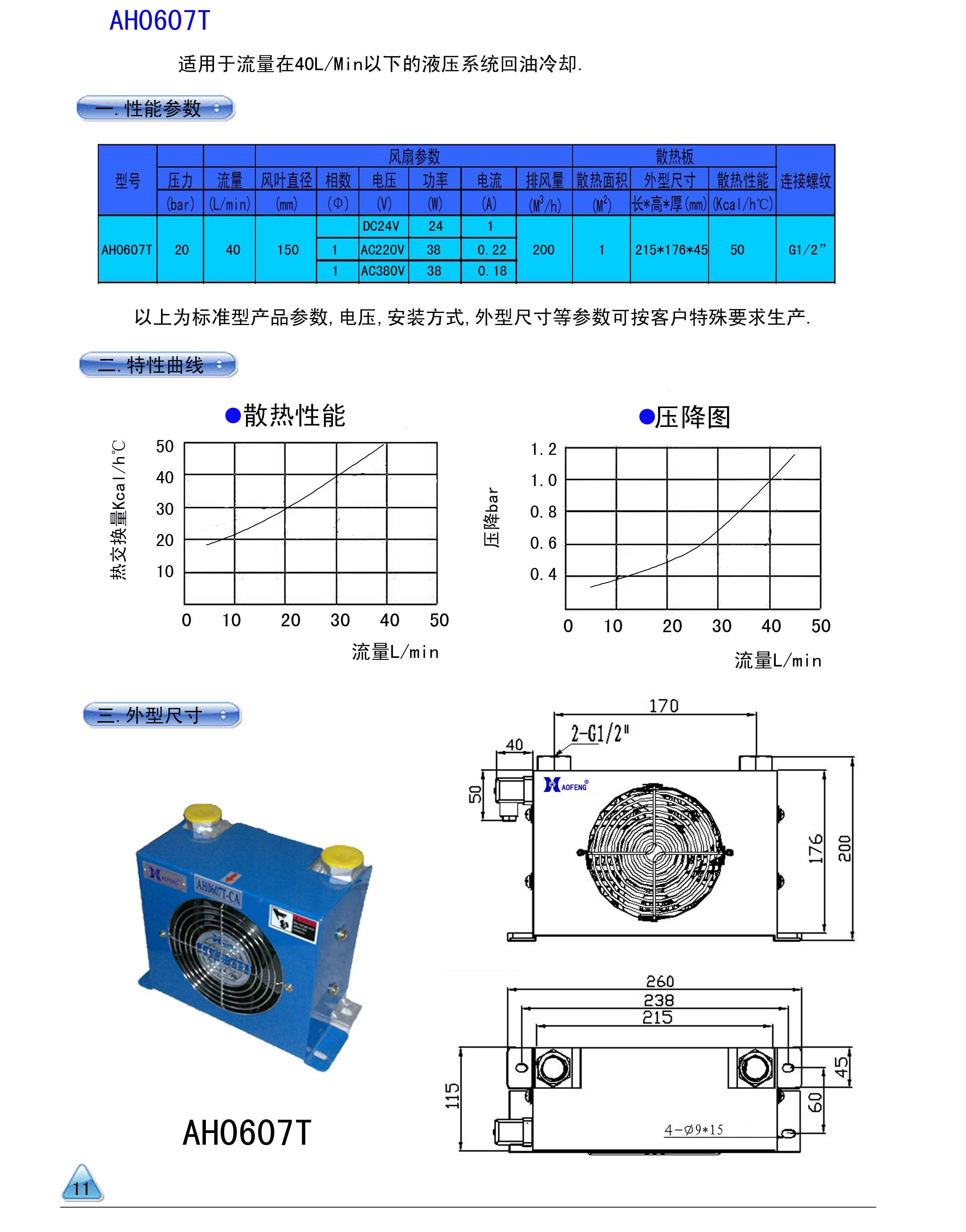

Heat exchanger industrial air cooler AH0607T-AC220V

AH series small flow type hydraulic air cooler product features:





Scope of application:





Working pressure: 2.5mpa, flow rate: 60L/min;





It is suitable for small hydraulic pump station of nc machine tool, oil return cooling of hydraulic system and oil discharge cooling of variable pump. Also suitable for other small flow hydraulic system cooling.





Product features:





This series of products have beautiful design, simple use, convenient maintenance and long service life. Its compact shape design can be used with limited installation space.





The heat sink of air-cooled oil cooler is made of aluminum alloy material vacuum brazing and advanced processing technology, which ensures the reliability of high pressure resistance and excellent heat dissipation performance.





The design structure of the product is cooled by double fans, which makes the low-temperature air flow through the outer fins of the radiator to force the heat to cool. Heat transfer fins are also designed inside the oil channel, greatly increasing its heat dissipation efficiency.





With professional design requirements, the radiator efficiency can be maximized, high reliability and low noise.





Cooling capacity: at?? When T = 40 ° C cooling power.





Different voltages have different power consumption. This table only takes AC220V as an example. Other operating voltages are: AC110V 380V,DC12V 24V.





Axial fan type: standard for suction type, IP44, F class insulation, in accordance with EC standards.





Cooling medium: mineral oil according to DIN51524,





The noise value is a value at a distance of 1M for reference only, as it is affected by the surrounding environment, viscosity and reflection.





Please call our technical department if the above statement cannot meet the demand.
