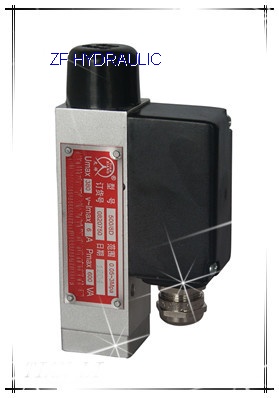

500/8D Pressure Switches

The Sensor of Switch is Diaphragm type,it can be suitable for air,gas such neutral gas and water,hydraulic oil,light fuel,lube and other fluid medium which would not exert corrosion to pressure sensor material. The Set Point of the Switch is adjustable, the adjustable range is from 0.02 Mpa to 3Mpa
Technical Performance:
Working Viscosity:<1x10^-3m²/s
Switching Elements: Microswitches
Protection Class of Enclosure: IP65 (accord with DIN40050)
Ambient temperature: -20℃~50℃
Medium Temperature: 0~90℃
Mounting Position: Pressure connection virtically downward (an angle of 15 is allowable).
Anti-Vibration: Max. 100m/s²
Repeatablity Error:≤1.5%
Electrical rating : AC 220V ,6A(Resistance)
                           AC 220V ,6A(Resistance)
Characteristic
Mini Structure, good Anti-vibration
Specifications
Dead Band Non-Adjustable



Remarks: *)In the practice, even the temporal peak value of pressure ,should no exceed the Max. Allowable Pressure.
**) I--the connection is inner screwed, P--the connection is flange
O-type sealing ring slot for flange pressure connection
O-type sealing ring size:
Order No.
Optional accessories list No:

outline overall and installing dimensions（units:mm）
01

02

03


accessory
Male Threaded convertable connector
Order No.0574773

 Damper connector, Order Content No.0574773

Three-way-connection :Screw-off the bolt, menometer with ∮60 can be directly conneted.
Order No.SC5-470-505
