DNA series DNA-100K-22B pressure switch |
|
| Product name : DNA series DNA-100K-22B pressure switch |
| Item : |
| Details : |

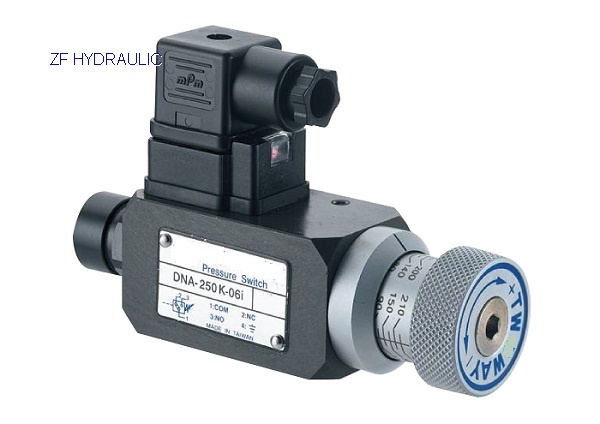

DNA series DNA-100K-22B pressure switch

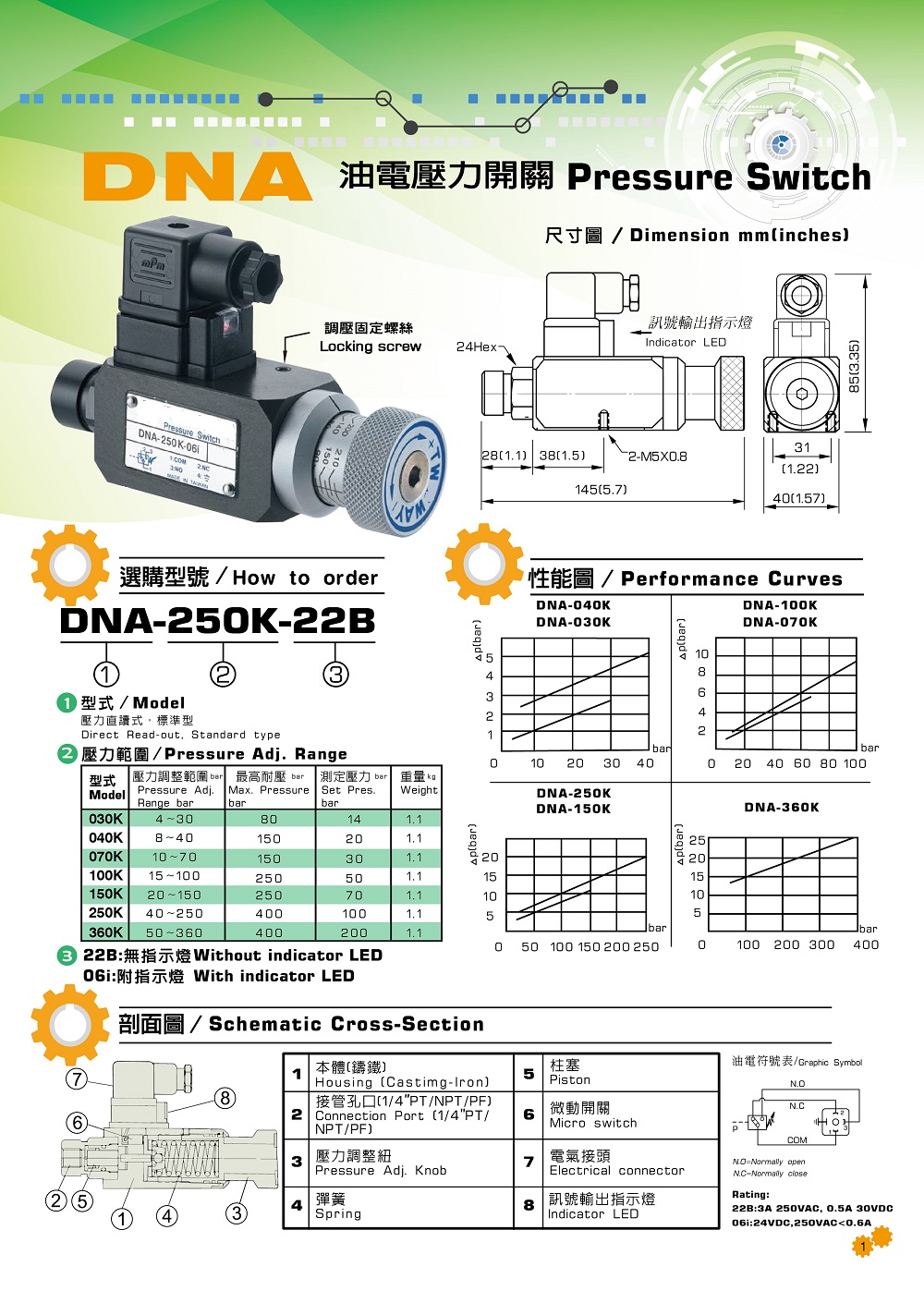

How to order:
Product parameters:
Brand: ZF hydraulic
Name: pressure relay, pressure switch
Model no. : DNA-100K-06i , DNA-100K-22B
Max pressure: 250 bar
Rated pressure: 15-100bar
Operating voltage: 24-250v
Purpose of pressure switch DNA-030K-22B :
As the name implies, pressure switch DNA-250K-22B is a relay that uses "pressure" to drive contacts.
The hydraulic pressure switch DNA-150K-22B is a hydraulic component that converts the pressure into electrical signal. The user needs to adjust the pressure swtich DNA-360K-22B according to his own equipment to output an electrical signal at a certain set pressure value.
For example, the most common air compressor in life can be set to 3kg-7kg
The theory is that when the pressure in the cylinder is less than 3kg, the contact of the pressure switch DNA-070K-22B is closed (i.e. normally closed), the air compressor works, and the compressor inflates the cylinder.
When the pressure in the cylinder reaches 3kg, the contact of the pressure switch DNA-040K-22B is released and the compressor stops working. Work in this way.
Other models:
DNA-030K-06I, DNA-040K-06I, DNA-070K-06I, DNA-100K-06I, DNA-150K-06I, DNA-250K-06I, DNA-360K-06I
Pressure switch DNA series built-in micro switch, induction from hydraulic system pressure convey the electrical signal to electromagnetic directional valve or electric motor make it change direction or warning, closed circuit, in order to achieve the effect of system protection.
Pressure switch is the use of liquid pressure to open/close electrical contact hydraulic electrical interface element. When the system pressure to achieve value of pressure switch setting , a signal, make electrical components (such as electromagnet, motor, time relay, electromagnetic clutch, etc.) action, make the oil pressure relief, reversing, execute component realize order action, or closed motor make the system to stop working, and the safety protection, etc.
Our company production of all kinds of pressure switch has small volume, advanced craft, small flow resistance, complete product specification , 0-500 kg/cm2 pressure scope, complete installation: female, male, plate installation, pipe installation! Reliable quality, long life and other characteristics, widely used in various industries of automation control field, have won the user's praise from all walks of life. ZF HYDRAULIC in the spirit of "high quality, best service, strives for the development" the spirit of "high-quality products, reasonable price, considerate service" concept and responsible, public principle to your promise:
We can assure you that the factory's products are in accordance with the relevant national standard production and inspection, unqualified products will not be out of factory. Ensure strict performance, cash products three guarantees, strictly implements national industrial product after-sales service relevant provisions.
|
 |
