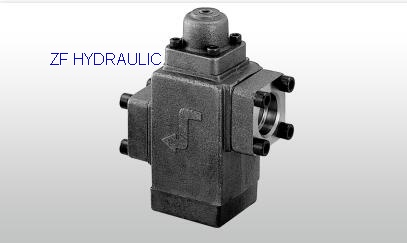

Valves CPDT,CPDF-10.CPDF Series-Surge Valves CPDF-24-180 o-R-SE

Valves  CPDT,CPDF-10.CPDF Series-Surge Valves CPDF-24-180 o-R-SE
Product name : Valves CPDT,CPDF-10.CPDF Series-Surge Valves CPDF-24-180 o-R-SE
Item : 201941119166
Details :
 Valves  CPDT,CPDF-10.CPDF Series-Surge Valves CPDF-24-180 o-R-SE
SPECIFICATION
MODLE MAX.OPERATING PRESSURE
kgf/cm 2
CREAKING PRESSURE
kgf/cm 2
RATEDFLOW
l/min
WEIGHT
(ADD PIPE FLANG)
kg
CPDF-16 250 400 0.12 31
CPDF-24 900 0.14 54.2
CPDF-32 1600 0.16 100
HOW TO ORDER
CPDF - 24 - 180 o - R - SE

  TYPE OF PIPE FLANG
FPT : PT PORT FLANG(ADD ACCIDENT PRESSURE PIPE FANG)
FT : T PORT FLANG(ADD LOW PRESSURE PIPE FLANG)
FP: P PORT FLANG(ADD HIGH PRESSURE PIPE FLANG)
NO MAR : NOT ADD PIPE FLANG

  PORT DIRECTION
R : PRESSURE AT RIGHT SIDE FROM TANK PORT
L : PRESSURE AT LEFT SIDE FROM TANK PORT

  VALVE SIZE
180 o : INLINE TYPE90 o : ANGLE TYPE

  VALVE SIZE
16 : 2” 24 : 3” 32 : 4”

  SERIES NUMBER


Valves  CPDT,CPDF-10.CPDF Series-Surge Valves CPDF-24-180 o-R-FPT
Valves  CPDT,CPDF-10.CPDF Series-Surge Valves CPDF-24-180 o-R-FT
Valves  CPDT,CPDF-10.CPDF Series-Surge Valves CPDF-24-180 o-R-FP
Valves  CPDT,CPDF-10.CPDF Series-Surge Valves CPDF-24-180 o-L-SE
Valves  CPDT,CPDF-10.CPDF Series-Surge Valves CPDF-24-90 o-R-SE
Valves  CPDT,CPDF-10.CPDF Series-Surge Valves CPDF-16-180 o-R-SE
Valves  CPDT,CPDF-10.CPDF Series-Surge Valves CPDF-32-180 o-R-SE
