Valves SBSG.Low Noise Type Solenoid Control Relief Valves SBSG-03-1PN-3-R-30-D-W220-20-A-10

Valves SBSG.Low Noise Type Solenoid Control Relief Valves SBSG-03-1PN-3-R-30-D-W220-20-A-10

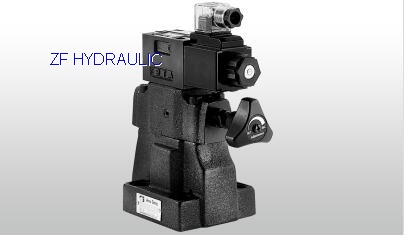

Product name : Valves SBSG.Low Noise Type Solenoid Control Relief Valves SBSG-03-1PN-3-R-30-D-W220-20-A-10
Item : 2019410221110
Details :
Valves SBSG.Low Noise Type Solenoid Control Relief Valves SBSG-03-1PN-3-R-30-D-W220-20-A-10

SPECIFICATION
MODLE MAX.OPERATING PRESSURE
(kgf/cm 2 )
PRESSURE ADJ. RANGE
kgf/cm 2
MAX. FLOW
l/min
WEIGHT(NO CONTAIN
ELECTRO MAGNETIC) (kg)
SBSG-03-※ 250
1 : 7-70
2 : 7-140
3 : 7-210
100 4.07
SBSG-06-※ 200 5.05
SBSG-10-※ 400 6.51
HOW TO ORDER
SBS G - 03 - 1PN - 3 - R - 30 - D - W220 - 20 - A - 10

  DESIGN NUMBER

  SPRING SERIAL NUMBER

  VALVES DESIGN NUMBER
10 : WITH LAMP CENTRAL CONNECTION
20 : PLUG-IN CONNECTION

  COIL VOLTAGE
G12 : 12V DCG24 : 24V DCW110 : 110/60HzW220 : 220/60HzW240 : 240/60Hz

  PILOT VALVE TYPE
D: Y: HA:

  DESIGN NUMBER
30: STANDARD TYPE
32: THRUST RING LINK TYPE

  DIRECTION OF KNOB
R : RIGHT(P PORT SIDE STANDARD)
L : LEFT(T PORT SIDE)

  PRESSURE ADJUSTING RANGE
1 : 7-70 kgf/cm 22 : 7-140 kgf/cm 2
3 : 7-210 kgf/cm 2

  VALVE TYPE
1PN : NORMALLY VENTED
1NP : ENERGIZED TO VENT

  VALVE SIZE
03 : 3/8” 06 : 3/4” 10 : 1-1/4”



MOUNTING
G : SUB-PLATE MOUNTING


  SERIES NUMBER
ATTACHMENT
MODLE SOC HOL CAP SCREW
SBSG-03 M12 x 40L…….2pcs
SBSG-06 M16 x 50L…….2pcs
SBSG-10 M20 x 65L…….2pcs
4WE-06 SOLENOID WEIGHT (kg)
  AC DC
Single Coil 1.6 1.7
Two Coil 2.1 2.1









Valves SBSG.Low Noise Type Solenoid Control Relief Valves SBSG-03-1PN-3-R-30-D-G12-20-A-10
Valves SBSG.Low Noise Type Solenoid Control Relief Valves SBSG-03-1PN-3-R-30-D-W110-20-A-10
Valves SBSG.Low Noise Type Solenoid Control Relief Valves SBSG-03-1PN-3-R-30-D-G24-20-A-10
Valves SBSG.Low Noise Type Solenoid Control Relief Valves SBSG-03-1PN-3-R-30-D-W240-20-A-10
Valves SBSG.Low Noise Type Solenoid Control Relief Valves SBSG-03-1PN-3-R-30-Y-W220-20-A-10
Valves SBSG.Low Noise Type Solenoid Control Relief Valves SBSG-03-1PN-3-R-30-HA-W220-20-A-10
Valves SBSG.Low Noise Type Solenoid Control Relief Valves SBSG-03-1PN-3-R-32-D-W220-20-A-10
Valves SBSG.Low Noise Type Solenoid Control Relief Valves SBSG-03-1PN-3-L-30-D-W220-20-A-10
Valves SBSG.Low Noise Type Solenoid Control Relief Valves SBSG-03-1PN-1-R-30-D-W220-20-A-10
Valves SBSG.Low Noise Type Solenoid Control Relief Valves SBSG-03-1PN-2-R-30-D-W220-20-A-10
Valves SBSG.Low Noise Type Solenoid Control Relief Valves SBSG-03-1NP-3-R-30-D-W220-20-A-10
Valves SBSG.Low Noise Type Solenoid Control Relief Valves SBSG-06-1PN-3-R-30-D-W220-20-A-10
Valves SBSG.Low Noise Type Solenoid Control Relief Valves SBSG-10-1PN-3-R-30-D-W220-20-A-10
Valves SBSG.Low Noise Type Solenoid Control Relief Valves SGSG-03-1PN-3-R-30-D-W220-20-A-10
