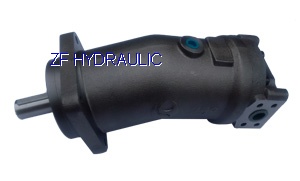

Rexroth Type A2F series A2F500R2P1 Fixed Displacement Axial Piston Pump / Motor
How to order:
A2F6, A2F10, A2F12, A2F23, A2F28, A2F45, A2F55, A2F63,
A2F80, A2F107, A2F125, A2F160, A2F200, A2F250, A2F355, A2F500
Norminal Pressure: 350 bar. Peak pressure: 400 bar
Sample: A2F 55 R 2 P 1
|
A2F= Fixed displacement Pump / Motor
55 = Displacement (Vgmin ~Vgmax)
9.4 ml/r 10
11.6 ml/r 12
22.7 ml/r 23
28.1 ml/r 28
44.3 ml/r 45
54.8 ml/r 55
63.0 ml/r 63
80.0 ml/r 80
107 ml/r 107
125 ml/r 125
160 ml/r 160
200 ml/r 200
225 ml/r 225
250 ml/r 250
355 ml/r 355
500 ml/r 500
|
R= Direction of rotation
Clockwise R
Anti-clockwise L
Alternation W
2= Series
Series: size 10~160 1,2,3,4
Series: size 200~500 5
P= Shaft end
Keyed shaft GB1096-79 P
Splined shaft DIN 5480 Z
Splined shaf GB3478.1-83 S
1= Rear cover 1~6
|
Axial piston unit of bent axis design with fixed displacement, for use as either pump or motor in hydrostatic drives, in open or closed circuit.
If operated as a pump, the flow is proportional to the drive speed and displacement. If operated as a motor, the output speed is proportional to the swept volume and inversely proportional to displacement. The output torque increases with the pressure drop between the high and low pressure sides.
Features:
·Equivalent with original Rexroth same model.
·High performance rotary group with well-proven spherical control area with the advantages, self-centering low peripheral speed, high efficiency.
·Robust rolling bearing endure long service life.
·Drive shaft capable of adopting radial loading.
We could supply the Rexroth hydraulic pump and motor, also the inner spare parts as below models:
1 A8VO: A8VO55,A8VO80,A8VO107,A8VO160
2,A2FO: A2FO5 A2FO10 A2F12 A2FO16 A2FO23,A2FO28,A2FO32,A2FO45,A2FO56,A2FO63 A2FO80
3,A4VSO: A4VSO40,A4VSO45,A4VSO56,A4VSO71,A4VSO125,A4VSO180,A4VSO250,A4VSO500,
4,A4VG: A4VG28,A4VG45,A4VG50,A4VG56,A4VG71,A4VG125,A4VG180,A4VG250
5,A6V: A6V55,A6V80,A6V107,A6V160,A6V225,A6V250
6,A7V: A7V16,A7V28,A7V55,A7V80,A7V107,A7V160,A7V200,A7V250
7,A8V: A8V55,A8V80,A8V107,A8V115,A8V172
8,A10VSO: A10VSO10,A10VSO18 A10VSO28,A10VSO43,A10VSO45,A10VSO71,A10VSO100,A10VSO140
9,A10VD: A10VD17,A10VD21,A10VD28,A10VD43,A10VD71
10,A11V: A11V50 A11V90 A11V130,A11V145 A11V160,A11V190,A11V250
11,PVV,PV7: PV2.PVV4.PVV5.PVV21.PVV41.PVV42.PVV51.PVV52.PVV54,PV7-1X,PV7-2X
12,PGF,PGH,PGP: GF1-2X,PGF2-2X,PGF3-3X,PGH2-2X,PGH3-2X,PGH4-2X,PGH5-2X,PGP2-2X,PGP3-3X
13 Others: AP2D21,AP2D25,AP2D36,AP2D38
