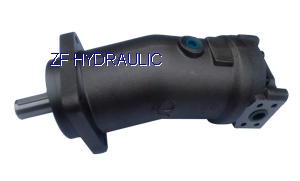

Rexroth Type A2F series A2F12R2P1 Fixed Displacement Axial Piston Pump / Motor
How to order:
A2F6, A2F10, A2F12, A2F23, A2F28, A2F45, A2F55, A2F63,
A2F80, A2F107, A2F125, A2F160, A2F200, A2F250, A2F355, A2F500
Norminal Pressure: 350 bar. Peak pressure: 400 bar
Sample: A2F 55 R 2 P 1
|
A2F= Fixed displacement Pump / Motor
55 = Displacement (Vgmin ~Vgmax)
9.4 ml/r 10
11.6 ml/r 12
22.7 ml/r 23
28.1 ml/r 28
44.3 ml/r 45
54.8 ml/r 55
63.0 ml/r 63
80.0 ml/r 80
107 ml/r 107
125 ml/r 125
160 ml/r 160
200 ml/r 200
225 ml/r 225
250 ml/r 250
355 ml/r 355
500 ml/r 500
|
R= Direction of rotation
Clockwise R
Anti-clockwise L
Alternation W
2= Series
Series: size 10~160 1,2,3,4
Series: size 200~500 5
P= Shaft end
Keyed shaft GB1096-79 P
Splined shaft DIN 5480 Z
Splined shaf GB3478.1-83 S
1= Rear cover 1~6
|
Axial piston unit of bent axis design with fixed displacement, for use as either pump or motor in hydrostatic drives, in open or closed circuit.
If operated as a pump, the flow is proportional to the drive speed and displacement. If operated as a motor, the output speed is proportional to the swept volume and inversely proportional to displacement. The output torque increases with the pressure drop between the high and low pressure sides.
Features:
·Equivalent with original Rexroth same model.
·High performance rotary group with well-proven spherical control area with the advantages, self-centering low peripheral speed, high efficiency.
·Robust rolling bearing endure long service life.
·Drive shaft capable of adopting radial loading.
Our company guarantees that all the products will be produced and tested according to the relevant national standards. Guarantee the strict performance and cash of products, and strictly implement the relevant regulations on after-sales service of national industrial products:
1. If any quality problem occurs within 7 days after the product is used, our company can return or replace the new product. All expenses shall be borne by our company. (except for human factors)
2. If any quality problem occurs within one year after the product is delivered spontaneously, our company will return, replace, replace, and maintain the new products according to the seriousness of the product quality problem, and all expenses shall be borne by us (except for human factors). Products exceeding the warranty period are subject to lifelong maintenance service.
3.Installation: as our products are easy to install, all customers can install by themselves. If you have any questions, please feel free to consult us!
4. Transportation: any problems (including insurance, loss, damage, etc.) that may occur during the transportation (logistics, express delivery, distribution) shall be borne by our company and all expenses incurred during the transportation shall be borne by our company.
5. maintenance response: the company promises to reply the quality problems in the warranty period within 24 hours after receiving the notice from the user, and to provide lifelong maintenance service for products beyond the warranty period within 7 working days.
6. Parts service: we promise to supply the parts beyond the warranty period at the cost price.
Features of hydraulic piston pump:
The hydraulic oil tank of hydraulic piston pump a2f5r2p3 is supplied by air pressure. First start the machine, and then operate the machine after the hydraulic oil tank reaches the required air pressure. The hydraulic
piston pump a2f10r2p3 (straight shaft swashplate) is divided into two types: pressure oil supply type self-priming and pressure oil supply type oil type. The pressure oil supply type hydraulic
piston pump a2f12l2p3 generally has a pneumatic oil tank, and the hydraulic plunger pump a2f12r2p3 supplies pressure oil to the oil inlet of the hydraulic piston pump a2f16 l2p3 through the oil make-up pump. The self-priming hydraulic plunger pump a2f16r2p3 has a strong self-priming ability and does not need other external forces to supply oil. For the self-priming plunger pump a2f23l2z3, the oil level should be higher than the lowest mark of the oil tank, and the hydraulic oil with enough capacity should be maintained. The higher the cleanliness of hydraulic oil, the longer the service life of hydraulic piston pump a2f23r2z3 is proportional to the cleanliness of hydraulic oil.
