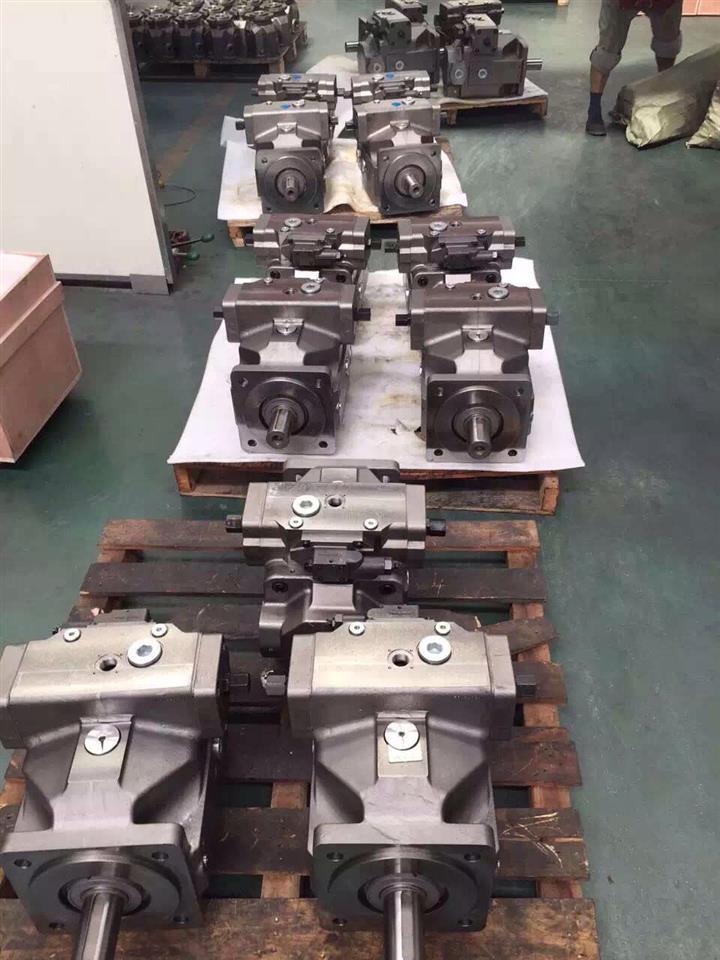

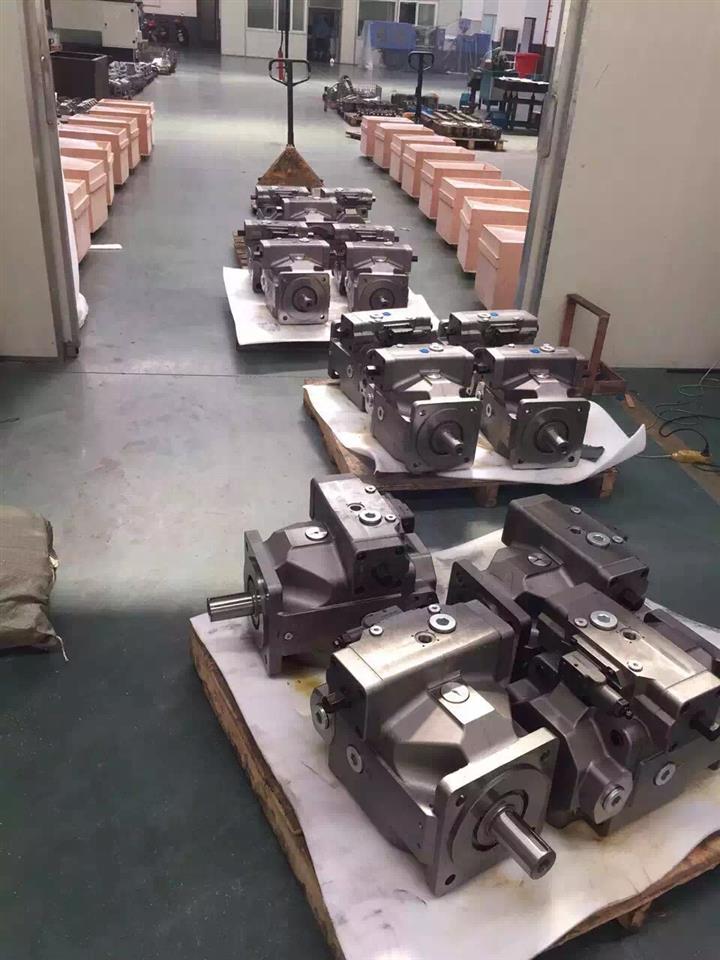

Rexroth Type A10VSO series HA10VSO100DR/31R-PPA12N00 Variable Axial Piston pumps
How to order:
Control Devices: DR, DRG, DFR, DFR1, DFLR.
Size: A10VSO18, A10VSO28, A10VSO45, A10VSO71,
A10VSO100, A10VSO140
Norminal Pressure: 280 bar. Peak pressure: 350 bar
Sample: A10VSO71DFR/31R-VSC62N00
|
H
|
A10V
|
SO
|
100
|
DR /
|
31
|
R -
|
P
|
P
|
A
|
12
|
N00
|
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
11
|
12
|
|
1= High speed version
2= Variable displacement pump
3= Swashplate design variable, open circuit
SO= industrial pump
O= mobile pump
4= Size: 18, 28, 45, 71, 100, 140
5= Control devices:
DR= pressure control
DRG= remote control
DFR= pressure and flow control
DFR1= orifice in X-channel closed
DFLR= pressure, flow and torque control
6= Series: 31
7= Direction of rotation: R= clockwise, L= anti-clockwise
8= Seals: P=NBR ( Nitrile rubber), V=FKM (Fluoro rubber)
9= Shaft end:
P= Metric parallel key
S= SAE spline
K= SAE parallel key
R= SAE spline through drive
U= SAE spline
|
10= Mounting flange:
A= ISO 2-bolt
B= ISO 4-bolt
C= SAE 2-bolt
D= SAE 4-bolt
11= Port type: 11,12, 41, 42, 61, 62, 91, 92
12= Through drive:
NOO=without through drive
With through drive*:
K01= mounting flange: 82-2(A). Shaft/coupling: 16-4(A)
K52= mounting flange: 82-2(A). Shaft/coupling: 19-4(A-B)
K02= mounting flange: 101-2(B). Shaft/coupling: 22-4(B)
K68= mounting flange: 101-2(B). Shaft/coupling: 22-4(B)
K04= mounting flange: 101-2(B). Shaft/coupling: 25-4(B-B)
K07= mounting flange: 127-2(C). Shaft/coupling: 32-4(C)
K24= mounting flange: 127-2(C). Shaft/coupling: 38-4(C-C)
K17= mounting flange: 152-4(D). Shaft/coupling: 44-4(D)
*Flange acc. to ISO 3019-1. Coupling for splined shaft acc. to SAE J744
|
Open circuit
Size: 18, 28,45, 71,100, 140
Series: 31
Nominal pressure 280 bar. Peak pressure 350 bar
Features:
– Axial piston pump A10VSO, variable, in swashplate design for hydrostatic transmissions in open loop circuit
– Flow is proportional to drive speed and displacement. By adjusting the swashplate angle it is possible to infinitely vary the flow
– Mounting flange acc. to SAE J744
– Flanged ports acc. to SAE J518
– 2 case drain ports
– Good suction characteristics
– Permissible working pressure 280 bar
– Low noise level
– Long service life
– Axial and radial loading of drive shaft possible
– High power to weight ratio
– Wide range of controls
–Short response times
–Interchangeable with original Rexroth pump of the same model.
V25A3R10X variable piston pump YEOSHE oil/supply piston pump a10v series REXROTH/ REXROTH axial piston pump model complete spot supply
Supply plunger pump a10v series REXROTH/ REXROTH axial
piston pump model complete spot supply /A10V140DRG/ 31r-ppa12n00 spot supply Germany REXROTH hydraulic piston pump
Special offer Taiwan YEOSHE oil lift plunger pump V15A3R10X series oil lift variable plunger/supply rexroth a10v variable plunger pump a10vso71dfr1/31r-ppa12n00 series plunger pump
Professional distribution a10v028dr imported rexroth high pressure piston pump/buy for rexroth plunger pump A10V0100 series plunger pump
Special price PVQ10A2RSE1S20C21V11P13 vickers piston pump low price/special price PVQ10A2RSE1S20C21V11P13 vickers plunger pump low price
A10V140DRG/ 31r-ppa12n00 spot supply Germany REXROTH hydraulic plunger pump/Taiwan YEOSHE high pressure plunger pump V15A4R10X original import quality assurance
Please contact us for details, we will serve you wholeheartedly.
[spot sales of REXROTH plunger pump from Germany, hydraulic pump A10V series] supply REXROTH A10V variable plunger pump a10vso71dfr1/31r-ppa12n00
REXROTH axial variable piston pump A10V028DR/ 31r-psc62k01 REXROTH axial variable piston pump A10V028DR/ 31r-psc62k01 REXROTH axial variable piston pump A10V028DR/ 31r-psc62k01 REXROTH axial variable piston pump A10V028DR/ 31r-psc62k01
YEOSHE plunger pump, hydraulic plunger pump, injection molding machine plunger pump, v15a4r-10x/supply rexroth a10v plunger pump
Preferential price supply (V15A1R10x) yeoshe oil lift axial piston pump/preferential price supply (V15A1R10x) yeoshe oil lift axial piston pump
Rexroth a10v plunger pump/rexroth a10v variable plunger pump a10vso71dfr1/31r-ppa12n00 series plunger pump
Sales YEOSHE plunger pump Taiwan v18a3r-10x oil liter/Japan linde quantitative plunger pump Tokyo quantitative pistonpump a10v axial piston pump MCY han
Rexroth A11V060LRDU2/ 10r-nzc12k01 / DAIKIN piston pump v15a3rx-95 spot
Piston pump a10v axial piston pump publicize variable piston pump MCY jin/German pneumatic piston pump duer spray gun German piston pump plunger pump
What should I pay attention to when purchasing piston pump? ZF hydraulic remind you:
1. If it is bulk purchase plunger pump, must choose the regular piston pump manufacturers! (for example: ZF hydraulic)
2 buy plunger pump must sign a formal contract with the manufacturer!
3. Before purchasing plunger pumps in large quantities, be sure to let the manufacturer make pre-production samples for confirmation!
ZF hydraulic branch specializing in providing plunger pump bulk purchase, looking forward to working with you!
Contact: Name: Mr William Tel: +86-13509210189 Fax: +86-0755-66813786
Mobile: 0086-13509210189 Whatsapp: 0086-13509210189
Skype: zfhydraulic Wechat: 2542600020
Add: 4/F, Bldg. 3, Anhua Industrial Zone, Area 35, Xin'an St., Baoan Dist, Shenzhen, Guangdong Province, China
E-mail: info@hydraulicpressureswitch.net
zfhydraulic@hotmail.com
zfhydraulic@yahoo.com
Wholesale supply rexroth plunger pump high quality rexroth A10V SO71 plunger pump/special price spot sales high quality imported A10V0 100 dfr1/31r-psc62n00 rexroth plunger pump
Can a plunger pump be pressurized with a booster pump
Plunger pump is a positive displacement pump, theoretically, the head is unlimited, only depending on the mechanical strength of the pump body. But the plunger pump outlet pressure is limited, the control outlet pressure is through the outlet valve to control, and the pump suction pressure has nothing to do.
If the plunger pump outlet pressure is low, and considering in the pump inlet plus booster pump, is not to achieve the purpose.
Add booster pump in the plunger pump outlet, there is a problem of safety, if the plunger pump low flow or damage, easy to cause pump pumping out.
Therefore, it is not recommended to use booster pump.
The best way is to consult the plunger pump manufacturers to see if it is possible to replace the outlet valve in the current working condition, if not, then consider directly changing the whole pump.
REXROTH axial piston pump A10V series REXROTH/ REXROTH axial piston pump model complete spot supply
Mass production of A10V high pressure piston pump GelanZC(31 and 32 series)/ professional distribution of imported rexroth variable piston pump a10v028dfr1/31r-psc62n00
Linde quantitative plunger pump Tokyo quantitative plunger pump a10v axial plunger pump MCY/ genuine Rexroth German Rexroth a10vso71dfr1/31r-ppa12n00 Rexroth variable piston pump
Supply piston pump a10v series REXROTH/ REXROTH axial piston pump model complete spot supply/a10v045dfr1/31r-psc62k02 Germany REXROTH axial plunger pump
REXROTH piston pump, hydraulic pump A10V series/spot supply Taiwan ZUOSON v15a3r-10x high pressure piston pump
Japan linde quantitative plunger pump Tokyo quantitative plunger pump a10v axial plunger pump MCY han/special price spot sales high quality imported A10V0 100 dfr1/31r-psc62n00 lelex plunger pump
Rexroth a11v060lrdu2/10r-nzc12k01 / professional distribution of imported rexroth variable piston pump a10v028dfr1/31r-psc62n00
Taiwan YEOSHE high pressure piston pump V15A4R10X imported quality assurance/supply rexler a10v variable plunger pump a10vso71dfr1/31r-ppa12n00 series plunger pump
Low price A10V SO 45 dfr1/31r PPA12K01 plunger pump special price 45 pump model qi /A10V140DRG/ 31r-ppa12n00 spot supply Germany REXROTH hydraulic plunger pump
The structure of the piston pump is divided into axial and radial piston pump two representative structure; As the radial plunger pump is a new type of high efficiency pump with high technical content, with the continuous acceleration of localization, the radial plunger pump will inevitably become an important part of the application field of the piston pump; See radial piston pump encyclopedia for details; The following is an example of an axial piston pump. Axial piston pump is the use of parallel with the drive shaft plunger reciprocating movement in the plunger hole produced by the volume change to work. As the plunger and plunger hole are round parts, the machining can achieve a high precision with the advantages of high volume efficiency, smooth operation, good flow uniformity, low noise, high working pressure, but more sensitive to the pollution of hydraulic oil, more complex structure, higher cost. The software function displays the current pressure, setting pressure and setting flow in real time. Real-time curve display pump working pressure can be set in two ways flow and pressure, fast and practical; With timing function, it is convenient to set the working time of the pump; Can save the current working pressure, easy to view; Can print current pressure and other important parameters. Advection pump (plunger pump) products are widely used in petroleum exploration and development evaluation experiment, catalytic reaction of petrochemical industry, polymerization reaction, food, pharmaceutical, liquid chromatography analysis, supercritical extraction, separation, atomic energy science, environmental science, process equipment, experimental equipment and micro liquid delivery of various liquids. The performance indexes of TBP series advection pump (plunger pump) can meet the requirements of fluid flow rheological characteristics research in oil field, fill the gap of equipment manufacturing in related experimental technology field in China, and reach the international advanced level of similar instruments. Main features and functions 1. 2, motor soft start, reduce the impact on machinery. 3. No high pressure throttling energy loss. 4, with under voltage, over voltage, overload, short circuit, lack of equal automatic protection. 5. Replace the original system. Reduce purchasing cost (new equipment purchase). 6. Reduce the maintenance cost of machinery. 7. Easy operation and remote control. Plunger pump is an important device of hydraulic system. It relies on the reciprocating movement of the plunger in the cylinder block, so that the volume of the sealed working chamber changes to achieve oil absorption and oil pressure. Plunger pump has the advantages of high rated pressure, compact structure, high efficiency and convenient flow regulation. It is widely used in high pressure, large flow and flow needs to be adjusted occasions, such as hydraulic press, construction machinery and ships. Mechanical maintenance adopts plunger pump supplied by supplementary oil pump. After 3000h, the operator shall check the plunger pump 1-2 times a day to check whether the sound of hydraulic pump is normal. If it is found that the speed of the hydraulic cylinder decreases or the engine is not running, it is necessary to disassemble the filling pump and check whether there are scratches on the edge of the impeller and whether the clearance of the inner gear pump is too large. For self-priming plunger pumps, the oil in the hydraulic tank shall not be lower than the lower limit of the oil mark, to maintain a sufficient amount of hydraulic oil. The cleaner the hydraulic oil, the longer the service life of the hydraulic pump.
