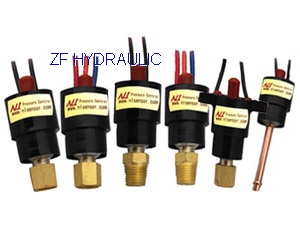

PC200 manual reset pressure switch
|
Model
|
(mm)
|
Overall dimensions
(mm)
|
Electrical connection
|
Switch type
normally closed(A)/ normally open(B)
/ C (normally open and normally closed)
|
Operation pressure
(PSI)
|
Reset pressure
(PSI)
|
|
PC 201
|
内7/16-20UNF
|
Φ23x53
|
Direct line
|
single-pole single-throw A
|
30～800
|
10～700
|
|
PC 202
|
内7/16-20UNF
|
Φ23x53
|
Direct line
|
Single-pole double-throwC
|
30～800
|
10～700
|
|
PC 203
|
1/4NPT /13
|
Φ23x59
|
Direct line
|
single-pole single-throw A
|
30～800
|
10～700
|
|
PC 204
|
1/4NPT /13
|
Φ23x59
|
Direct line
|
Single-pole double-throwC
|
30～800
|
10～700
|
|
PC 205
|
Φ6气管/72
|
Φ28x108
|
terminal
|
single-pole single-throw A
|
30～800
|
10～700
|
|
PC 206
|
Φ14气管x21
|
Φ23x60
|
Direct line
|
Single-pole double-throwC
|
30～800
|
10～700
|
|
PC 207
|
内7/16-20UNF
|
Φ24x53
|
Direct line
|
single-pole single-throw A
|
30～800
|
10～700
|
|
PC 208
|
内7/16-20UNF
|
Φ24x53
|
Direct line
|
single-pole single-throw A
|
30～800
|
10～700
|
|
|
Product features
1, using international advanced stainless steel diaphragm pressure, laser welding equipment, exquisite workmanship, high precision.
2, compact appearance, easy installation and use, integration of high and low voltage design, at the same time control system in high voltage side and low side pressure.
3, manual reset, suitable for semi-automatic operation.
Technical parameters
Output signal: switching signal
Range of working pressure (high) : 30 ~ 800 psi
Reset pressure (low) range: 10~ 700 psi
Working pressure deviation: ±3 ~ 30 psi
Environment temperature: -40 ~ 85 ℃
Medium temperature: - 40 ~ 125 ℃
Electrical load: 220VAC, 56/60HZ, 3A
Working life: 100000 Cycles or more
