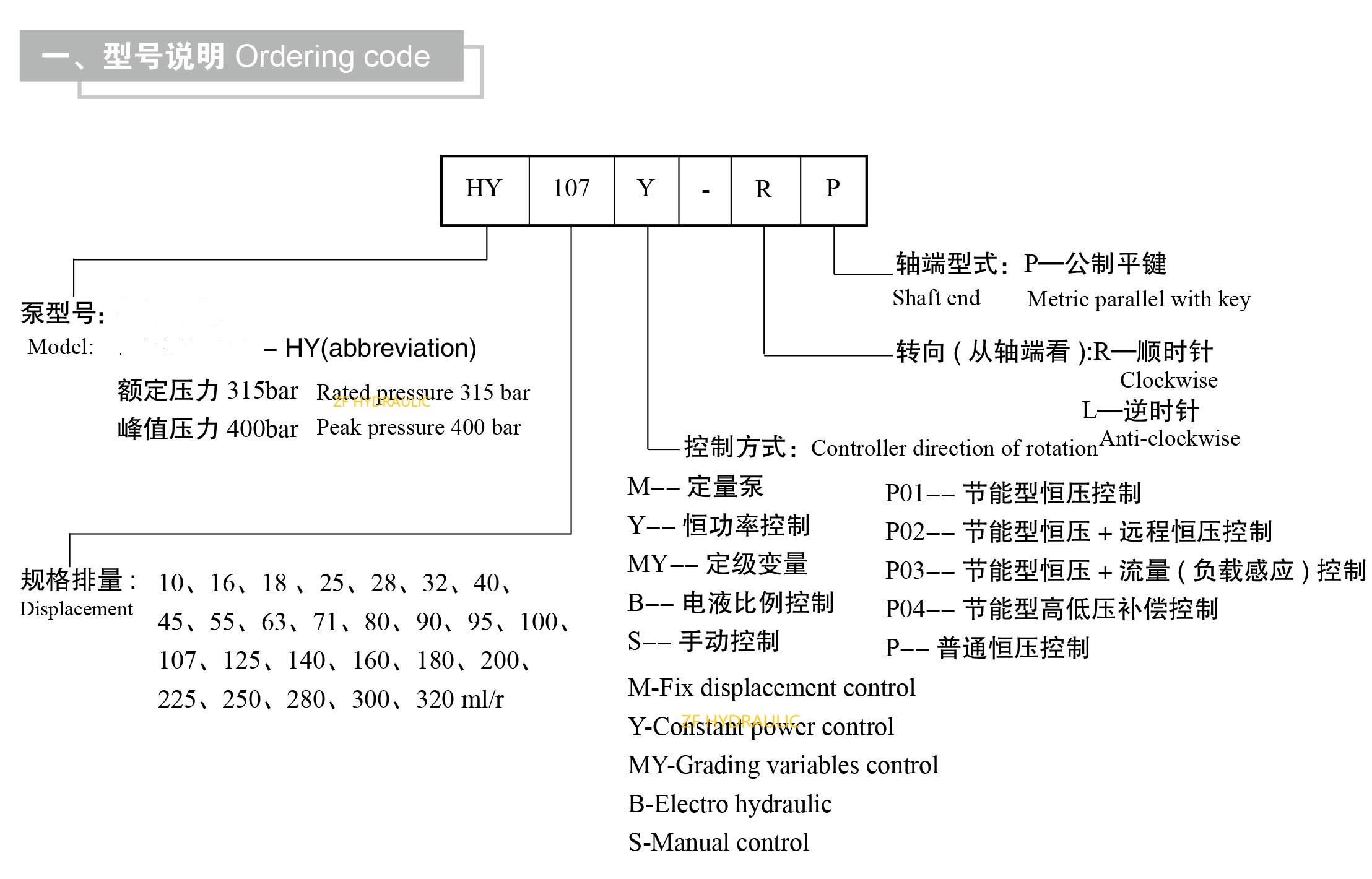

HY piston pump HY25Y-RP HY10Y-RP

Other piston pump models:

Piston pump HY10Y-LP, HY16Y-LP, HY18Y-LP, HY25Y-LP, HY28Y-LP, HY32Y-LP, HY40Y-LP, HY45Y-LP, HY55Y-LP, HY63Y-LP, HY71Y-LP, HY80Y-LP, HY90Y-LP, HY95Y-LP, HY100Y-LP, Piston pump HY107Y-LP, HY125Y-LP, HY140Y-LP, HY160Y-LP, piston pump HY180Y-LP, HY200Y-LP

HY10M-LP, HY16M-LP, HY18M-LP, HY25M-LP, HY28M-LP, HY32M-LP, HY40M-LP, HY45M-LP, HY55M-LP, HY63M-LP, HY71M-LP, HY80M-LP, HY90M-LP, HY95M-LP, HY100M-RP, HY107M-RP, HY125M-RP, HY140M-RP, HY160M-RP, HY180M-RP, HY200M-RP piston pump

HY10S-LP, HY16S-LP, HY18S-LP, HY25S-LP, HY28S-LP, HY32S-LP, HY40S-LP, HY45S-LP, HY55S-LP, HY63S-LP, HY71S-LP, HY80S-LP, HY90S-LP, HY95S-LP, HY100S-LP, HY107S-LP, HY125S-LP, HY140S-LP, HY160S-LP, HY180S-LP, HY200S-LP piston pump

HY10MY-LP, HY16MY-LP, HY18MY-LP, HY25MY-LP, HY28MY-LP, HY32MY-LP, HY40MY-LP, HY45MY-LP, HY55MY-LP, HY63MY-LP, HY71MY-LP, HY80MY-LP, HY90MY-LP, HY95MY-LP, HY100MY-LP, HY107MY-LP, HY125MY-LP, HY140MY-LP, HY160MY-LP, HY180MY-LP, HY200MY-LP piston pump

HY10B-LP, HY16B-LP, HY18B-LP, HY25B-LP, HY28B-LP, HY32B-LP, HY40B-LP, HY45B-LP, HY55B-LP, HY63B-LP, HY71B-LP, HY80B-LP, HY90B-LP, HY95B-LP, HY100B-LP, HY107B-LP, HY125B-LP, piston pump HY140B-LP, HY160B-LP, HY180B-LP, HY200B-LP piston pump manufactuer in China.


HY series piston pump. The HY series piston pump is a high-performance hydraulic pump with multiple advantages and features, suitable for various industrial applications. The following is a detailed introduction about HY series plunger pumps:

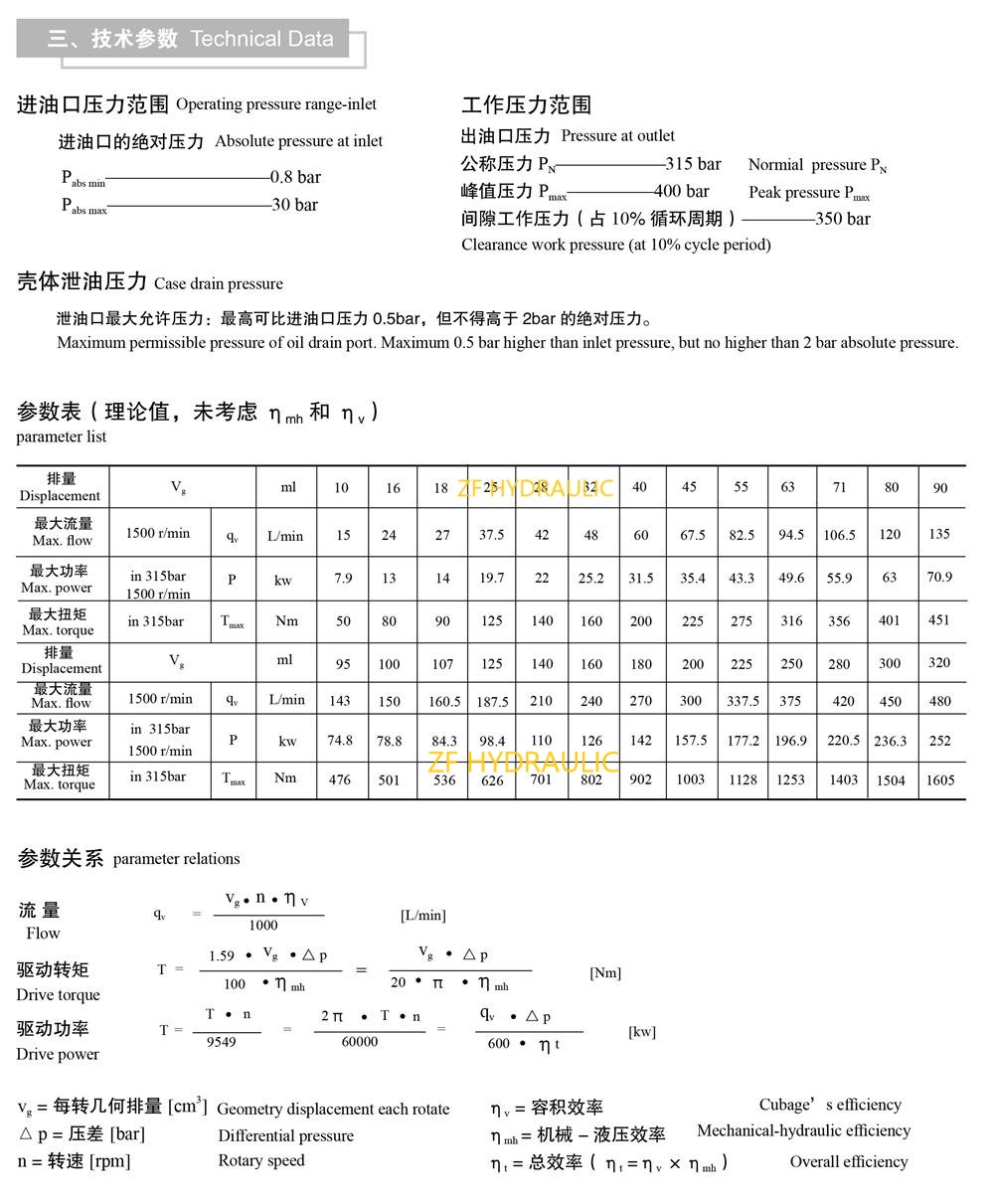

Performance parameters: The continuous working pressure of HY series piston pump can reach 315 bar, and the instantaneous maximum pressure can reach 400 bar. It offers multiple displacement specifications and high power density. In addition, the pump has a novel appearance, small size, high power to weight ratio, provides multiple variable forms and energy-saving control methods, and has a fast control response speed of 12.

Application areas: HY series piston pumps are widely used in forging machines, petroleum exploration and development, scientific research and other fields. In the field of forging machines, HY series piston pumps have replaced CY series oil pumps, providing smaller volume, lighter weight, lower noise, and higher reliability. In petroleum exploration and development, it serves as an important experimental equipment for simulating the dynamic parameters of formation fluids, meeting the precise and stable requirements of fluid transportation in scientific research fields.
