Products list |
 |
|
| |
|
|
|
|
hydraulic motor FTM40VC |
|
| Product name : hydraulic motor FTM40VC |
| Item : 201949194732 |
| Details : |

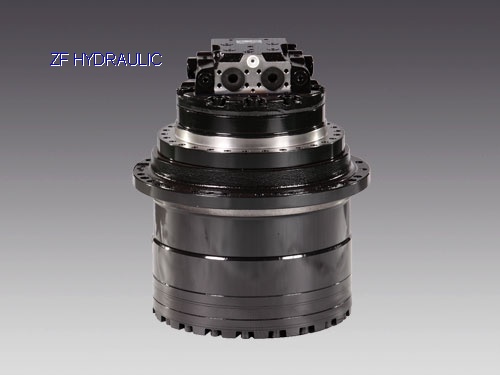

hydraulic motor FTM40VC
Parameters
| Model |
Displacement
(cc/rev) |
Working Pressure
(Mpa) |
Brake Torque
(Kgf•m) |
Applicable Weight
(ton) |
|
FTM40VC-176/95-1(flange connector)
FTM40VC-176/95-2(screw connector)
|
176/95 |
32.4 |
49.3 |
18-25 |
Gear Ratio
(i) |
Output Torque
(Kgf•m) |
Output Speed
(rpm) |
Weight
(Kg) |
| 48 |
4439/2404 |
27/49 |
308 |

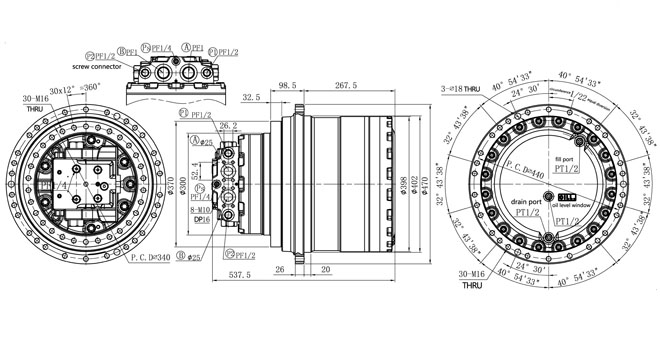

Overall Dimensions
hydraulic motor FTM40VC-176/95-1(flange connector)
hydraulic motor FTM40VC-176/95-2(screw connector)
|
 |
