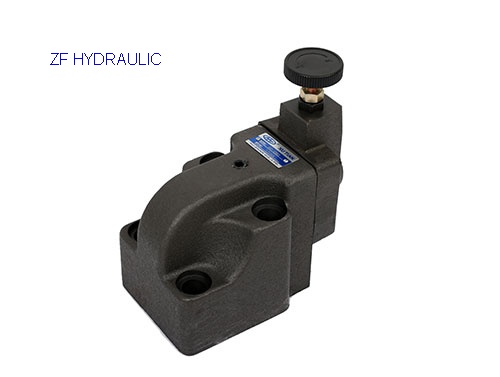

Yuken brand back pressure valve BR-G06

Features:

BRG series back pressure valves are improved for the problems of slow response, loud noise, incorrect back pressure control of plastic injection machine and excessive pressure loss. It can be applied to various hydraulic devices to prevent gravity landing and back pressure.



Remark:

The rated flow rate indicates that under the full valve state, the oil proportion is 0.85, the motion viscosity is 20cst, and the approximate flow rate at the maximum pressure drop between the inlet and outlet is 30bar.
