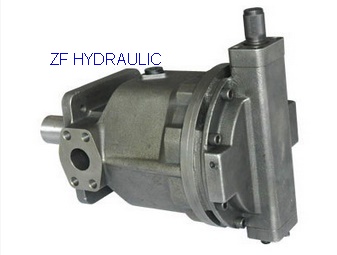

Piston pump HY80Y-RP

Product name : Piston pump HY80Y-RP

Item :

Details :

Piston pump HY80Y-RP

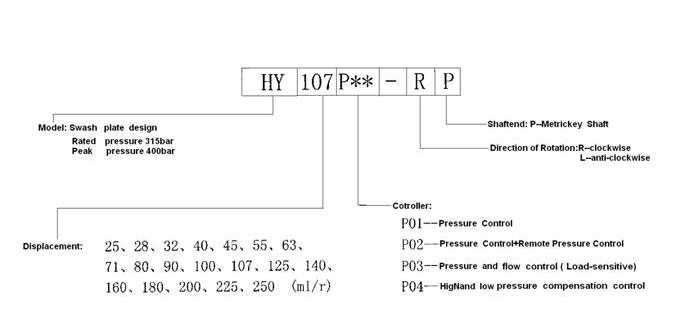

How to order:

Displacement		V g	ml/r	10	16	28	45	71	100	125	140	160	200	250	300
Max speed		n max	rpm	3000	3000	3000	3000	2600	2600	2600	1800	1800	1800	1800	1800
Max. flow	in 1000 r/min	q v	L/min	10	16	28	45	71	100	125	140	160	200	250	300
Max. flow	in 1500 r/min	q v	L/min	15	24	42	67.5	106.5	150	187.5	210	240	300	375	450
(Δp=280bar) Max. power	in 1000 r/min	P max	kw	5	8	14	22	35	50	63	70	80	100	125	150
(Δp=280bar) Max. power	in 1500 r/min	P max	kw	7.5	12	21	33	53	75	95	105	120	150	188	225
(Δp=280bar) Max. torque		Tmax	Nm	45	71	125	200	316	445	557	624	713	890	1115	1337
Displacement		V g	ml/r	90	100	107	125	140	160	180	200	225	250	280	300
Weight		n max	rpm	2600	2600	2600	2600	1800	1800	1800	1800	1800	1800	1800	1800
Max. flow	In 1000 r/min	q v	L/min	90	100	107	125	140	160	180	200	225	250	280	300
Max. flow	In 1500 r/min	q v	L/min	135	150	160.5	187.5	210	240	270	300	337.5	375	420	450
(Δp=280bar) Max. power	In 1000 r/min	P max	kw	47.3	52.5	56.2	65.6	73.5	84	94.5	105	118	131	147	157.5
(Δp=280bar) Max. power	In 1500 r/min	P max	kw	70.9	78.8	84.3	98.4	110.3	126	141.8	157.5	177.2	196.9	220.5	236.3
(Δp=280bar) Max. torque		Tmax	Nm	451	501	536	626	701	802	902	1003	1128	1253	1403	1504

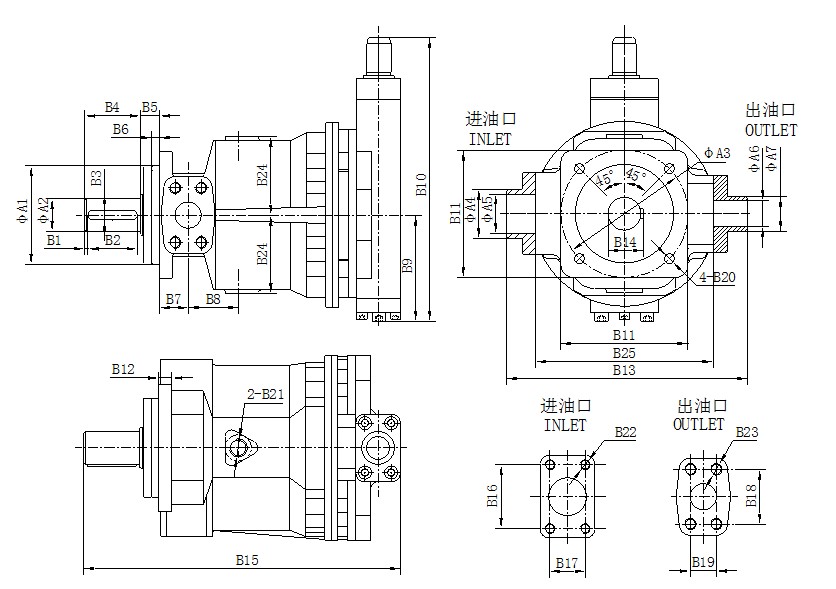

SPECIAFICATION	A1	A2	A3	A4	A5	A6	A7	B1	B2	B3	B4	B5	B6	B7	B8
10/16/18	75f9	25h6	100	35	25	15	25	4	30	8	39	18	9	25	33
25/28/32/40/45	100f9	30h6	125	42	34	20	28	4	45	8	52	21	9	30	48
55/63/71/80	120f9	40h6	155	50	40	25	35	4	50	12	60	21	9	35	57
90/100/107/125	120f9	40h6	155	60	50	32	43	4	60	12	68	23	9	35	62
140/160/180/200/225	150f9	55h6	198	76	66	38	52	4	100	16	105	25	9	44	74
250/280/300	180f9	60h6	230	100	90	50	65	5	100	18	110	23	9	75	95

SPECIAFICATION	B9	B10	B11	B12	B13	B14	B15	B16	B17	B18	B19	B20	B21	B22	B23	B24
10/16/18	102.4	291	100	11	210	28	237.5	52.4	26.2	40.5	18.3	∮12	M14×1.5	11	9	60
25/28/32/40/45	108	295	125	15	236	33	303	58.7	30.2	50.8	23.8	∮12	M14×1.5	11	11	71
55/63/71/80	129.5	346	155	16	271	42.8	350	70	35.7	57.1	27.8	∮14	M18×1.5	13	13	88
90/100/107/125	131	346	155	16	294	42.8	385.5	77.8	42.9	66.7	31.6	∮14	M22×1.5	13	15	96
140/160/180/200/225	146	359	200	20	329	59	458.5	89	50.8	79.4	36.7	∮18	M22×1.5	13.5	17	112.5
250/280/300	168.5	383	230	28	392	63.9	541.5	120.7	69.9	96.8	44.5	∮24	M33×2	17.5	21	135

DESIGN FEATURE:
1, Swash plate design axial variable piston pump used in open circuit.

2,Continuous work pressure can reach 315bar,The highest instantaneous work pressure can reach 400bar.

3, The flow is directly proportional to the drive rotate speed and the displacement, and can make stepless variable come true
by adjusting the obliquity of the swash plate.

4, Multiplicate energy saving of control ways eg. Constant pressure, Constant power etc. and the control response is very fast.

5, Low noises level, High efficiency, High reliability and timeproof.

6, Small volume, High power density.

7, Excellent oil absorbency.

8, Can supply standard SAE flange.
