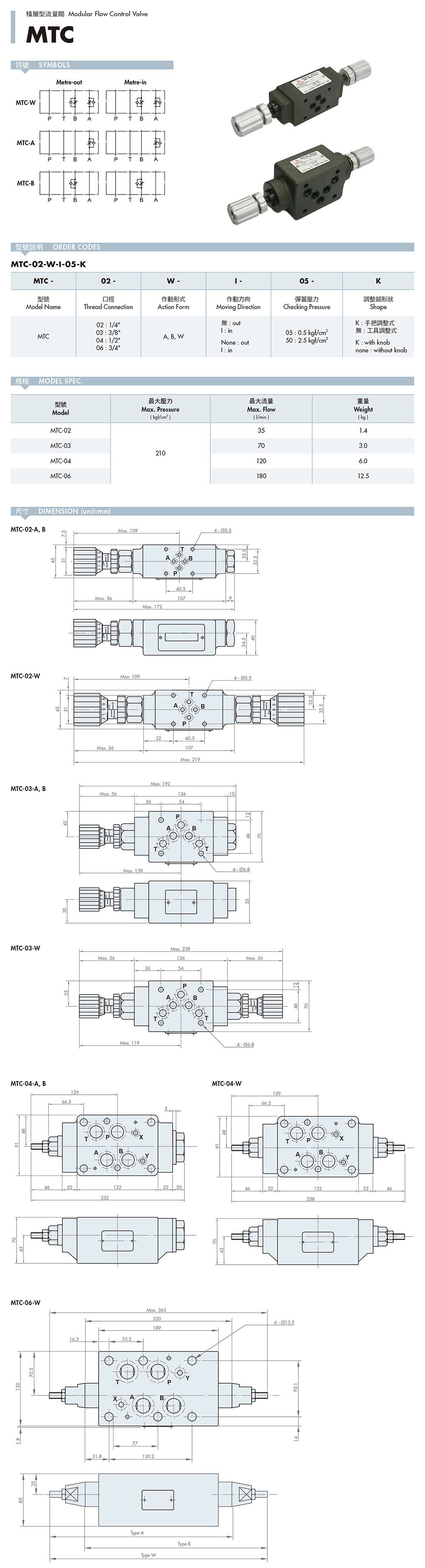

Modular flow control valve MTC-02-W-I-05-K

MTCV-02 type one-way throttle valve, the valve is a pipe - connected one-way throttle valve. The orifice adopts axial triangular groove structure. Rotate the adjusting nut to change the size of the flow area at the throttle. To regulate the flow rate. When the throttle valve is in the whole direction, some oil can flow in the annular gap, so the sediment on the throttle port can be clear. There is a scale on both sides of the valve body and a scale on the adjusting nut to mark the adjustment of flow.



Throttle valve and one-way throttle valve is a simple flow control valve, their main role in the quantitative pump hydraulic system is to cooperate with the overflow valve, composed of three throttle speed regulation system: namely, the oil intake throttle speed regulation system, the oil return throttle speed regulation system and bypass throttle speed regulation system. Two one-way throttle valves can be used in systems where the actuator requires a round-trip throttle speed regulation. Throttle valve is also used in the volume throttle speed regulating loop. This valve has no pressure and temperature compensation device, can not automatically compensate for the load and oil viscosity changes caused by the speed of instability, but its structure is simple, easy to manufacture and maintenance. Therefore, it is widely used in general hydraulic systems with little load variation or low requirement for speed stability.



Overlay valves can shrink the mounting controls. Reduce the failure caused by piping, oil leakage and pipe vibration, can easily change the circuit, replace components, maintenance is very convenient, is suitable for a wide range of hydraulic components.
