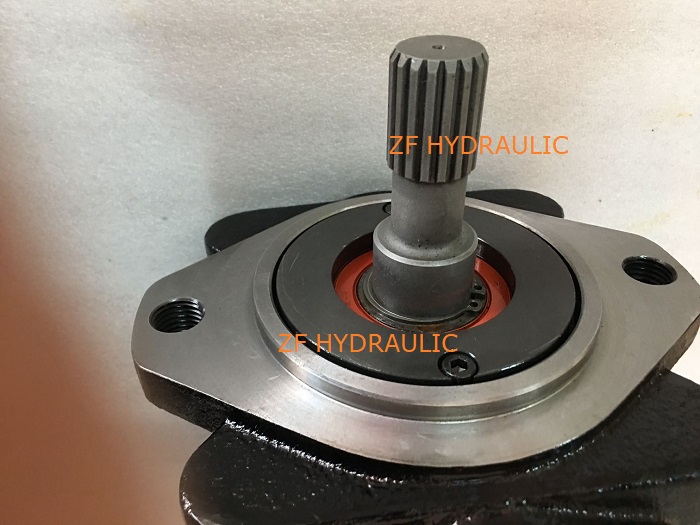

Japan SUMITOMO internal gear pump CQTM42-31.5F-3.7-2-T-415-S1264E with spline shaft

Japan SUMITOMO internal gear pump CQTM42-31.5F-3.7-2-T-415-S1264E with spline shaft Japan SUMITOMO internal gear pump CQTM42-31.5F-3.7-2-T-415-S1264E with spline shaft Japan SUMITOMO internal gear pump CQTM42-31.5F-3.7-2-T-415-S1264E with spline shaft
Product name : Japan SUMITOMO internal gear pump CQTM42-31.5F-3.7-2-T-415-S1264E with spline shaft
Item :
Details :
Japan SUMITOMO internal gear pump CQTM42-31.5F-3.7-2-T-415-S1264E with spline shaft

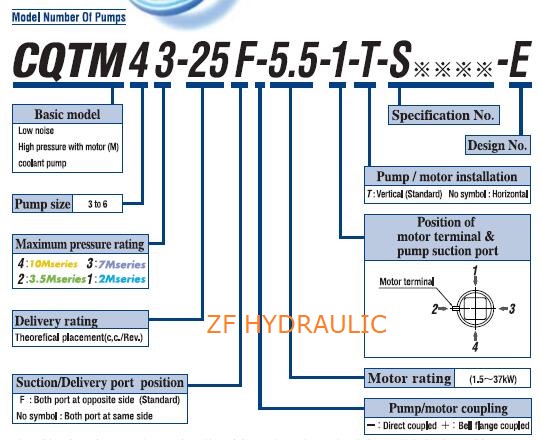

How to order:

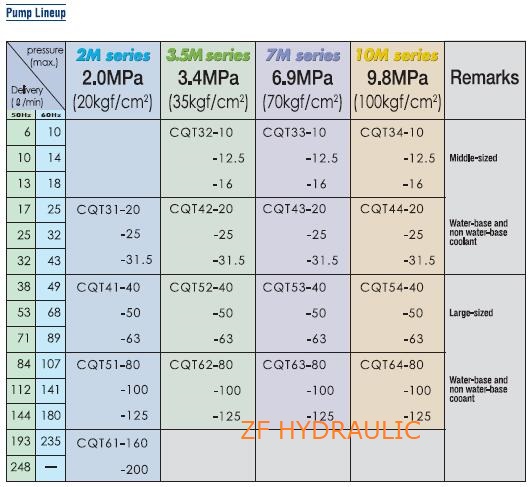

SUMITOMO:CQT42 series internal gear pump models as below:
Gear pump QTM31-31.5F-2.2-3R-380-S1431-E
Gear pump QTM32-12.5-3.7-1R-C
Gear pump CQTM33-16V-3.7-2R-S1243-E
Gear pump CQTM33-12.5V-2.2-3-T-380S1307D
Gear pump CQTM33-16V-3.7-2R-S1243-D
Gear pump CQTM42-20FV-4-T-S1264-D
Gear pump CQTM42-25F-3,7-1-T-380-S1173YD
Gear pump CQTM43-25F-7.5-1-7-S1249-D
Gear pump CQTM43-25FV-5-5-T-380-S-1307C
SUMITOMO internal gear pump CQTM43-35FV-5.5-4-T-380
SUMITOMO brand internal gear pump CQTM43-31.5F-5.5-4-T-M380
JAPAN SUMITOMO brand internal gear pump Model CQTM43-25FV-5.5-1-T-S1264-C
SUMITOMO gear pump CQTM43-25FV-5.5-4-T
CQTM43-25FV-5-5-1-T-S1264-C
CQTM43-20F-3.7-1-T-S1307-D
CQTM43-31.5F-5.5-4-T-M380-S1307-E
CQTM43-20F-20F-3.7-1-T-S1307-D
CQTM43-20F-3.7-1-T-S1249-D
CQTM43-31.5F
QTM43-31.5F-7.5-2-T
CQTM52-40FV+3.7-4-T-M-1307-A
CQTM54-50FV+15-2-T-M-S1307J-A
CQTM54-50FV+15-2-T-M-S1307J-A-200V
CQTM54-50FV+15-2-T-M-S1307J-A S
CQTM54-50FV+15-2-T-M-S1307J-A-200V
CQTM54-50FV+15-2-T-M-S1307J-A S
CQT63-125FV-S1307J-A
CQTM63-100F+15T
CQTM63-100F-15
Ultra-low noise performance qt internal gear pump internal gear contact smooth, mute continuous rotation. Its outstanding feature is the special gear design, the use of its extremely low sound, even at high speed operation, the audio is still smooth and smooth. High wear resistance in addition to simple mechanical structure, the use of advanced hydraulic oil, can reduce the mechanical surface and functional parts of the wear. Qt pump can run at 250bar high speed, even if the use of ordinary hydraulic oil, it is not easy to wear parts. The extremely low pressure pulsation qt pump can almost completely eliminate pressure waves, so it can be used as an ideal mechanical tool for precise speed control of the system. 2. When the working speed n is not equal to 1500min, the driving power can be calculated according to the approximate formula "table median value 1500" to obtain its approximate value. Can be matched as a double pump. Features: 1 low noise, maximum noise less than 65db(a). 2 long life. Good pollution resistance. 4. Small pressure fluctuation. 5. Strong self-absorption. Widely used in various hydraulic systems. Professional maintenance technology, guarantee the hydraulic pump after the maintenance of the technical parameters in full compliance with the original technical requirements, to achieve the same effect as the original hydraulic pump. Dedicated to provide users with a comprehensive hydraulic maintenance, long warranty service, free hydraulic testing and technical advice.

Japan's sumitomo  qt single union internal gear pump (40 CST anti-wear hydraulic oil viscosity (isovg32 oil, the oil temperature 50 ℃), The speed of 1500 min, Sumitomo qt32-12.5 sumitomo qt32-16sumitomo qt42-20 sumitomo qt42-25sumitomo qt42-31.5sumitomo qt52-40 sumitomo qt52-50sumitomo qt52-63sumitomo qt62-80 Sumitomo qt31, sumitomo gear pump qt31 sumitomo qt62 sumitomo qt62-100-125-20-25 sumitomo qt31-31.5 sumitomo qt41 sumitomo qt41 sumitomo qt41 40-50-63 sumitomo qt61 sumitomo qt51 sumitomo qt51 sumitomo qt51-80-100-125-160 Sumitomo qt33 sumitomo qt33 sumitomo qt61 sumitomo qt61-200-250-12.5-16, sumitomo gear pump, qt43 sumitomo qt43-20-25 sumitomo qt43-31.5 sumitomo qt53-40 sumitomo qt63 sumitomo qt63 sumitomo qt53 sumitomo qt53-50-63-80-100 Sumitomo qt63-125
