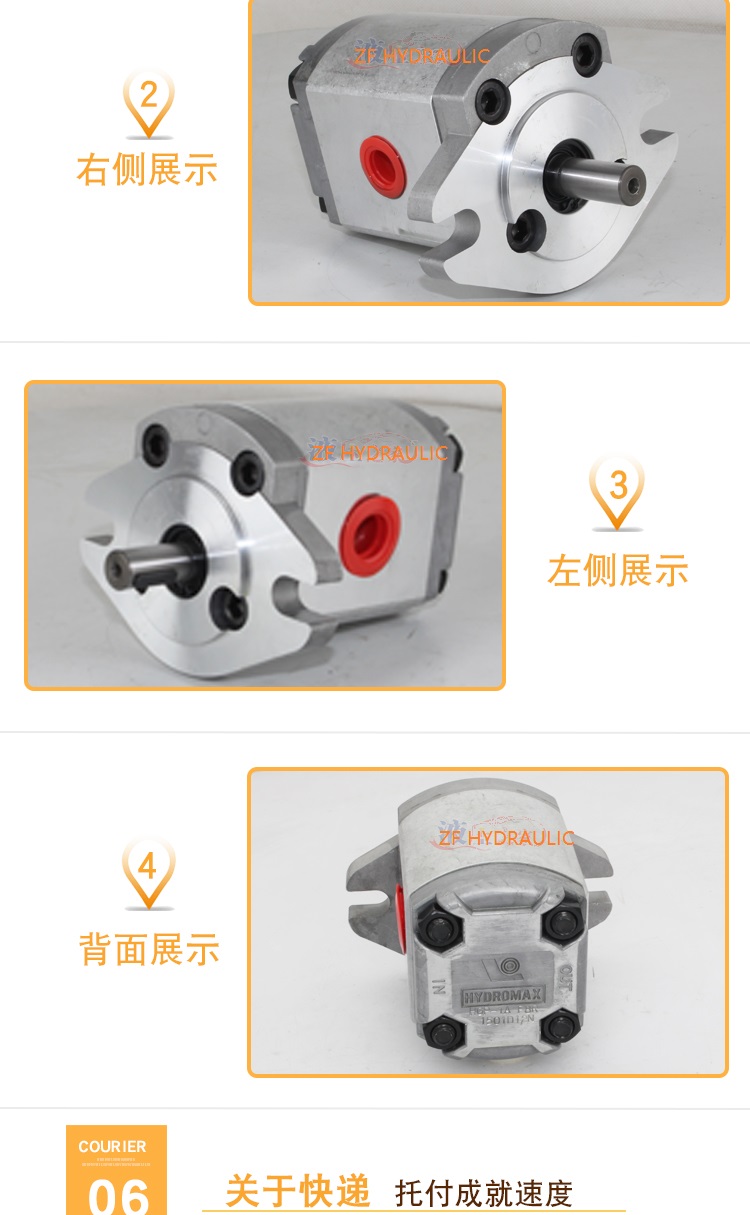

Hydraulic gear pump HGP-1A-F6R-X-2B for sale
Features
HGP-1A Gear Pump function well under high temperature with Viton’s seal. It can also run under high pressure with the oil less bearing design.
Model Definition
|
HGP-1A
|
-F
|
8
|
-R
|
-X
|
-2B
|
|
Series
|
Installation Type
|
Displacement
(cc/rev)
|
Input Rotation
|
Input Shaft
|
Front Flange Cover
|
|
Gear Pump 1A Series
|
F: Flange Mounting
L: Foot Mounting
|
1：1
2：2
3：3
4：4
5：5
6：6
8：7.8
|
R: Clockwise
L: Anti-clockwise
|
X: Straight Keyed
Y: Spline
|
2B : SAE 2-Bolt
4BD: DIN 4-bolt
4DE: European 4-bolt
|
|
Model
|
Displacement
(cc/rev)
|
Pressure
(bar)
|
Speed
(RPM)
|
Weight
(kg)
|
|
Rated
|
Max.
|
Rate
|
Min.
|
Max.
|
|
HGP-1A-F1
|
1
|
210
|
250
|
1800
|
1000
|
4500
|
1.00
|
|
HGP-1A-F2
|
2
|
600
|
4500
|
1.05
|
|
HGP-1A-F3
|
3
|
600
|
4500
|
1.15
|
|
HGP-1A-F4
|
4
|
600
|
4500
|
1.18
|
|
HGP-1A-F5
|
5
|
600
|
3200
|
1.20
|
|
HGP-1A-F6
|
6
|
600
|
3200
|
1.30
|
|
HGP-1A-F8
|
7.8
|
175
|
210
|
600
|
3200
|
1.40
|
Product introduction:
HGP series high pressure gear pump using high strength casting, radial sealing using the addendum sweep chamber, axial seal using floating pressure balance side plate, thus to achieve high efficiency. The pump has small volume, light weight, good performance, reliable work etc. Ontology adopt the aluminum alloy, high precision molding design, low noise, long service life. Especially suitable for petroleum, chemical industry, grain and oil, building materials, daily chemical, construction, electricity and asphalt mixing station departments and industry fuel injection occasion. Also more suitable for work pressure stable, long-term continuous working circumstance, such as: strong lubrication system, etc. Lifting the transport machinery, construction machinery, petroleum machinery, agricultural machinery, and other mechanical equipment. Could with low pressure mass flow vane pump to be high and low pump combination, rational utilization of main energy, cost saving.
Outside size:

|
Model
|
DimensionA
mm
|
DimensionB
mm
|
C–Inlet
|
D–Outlet
|
|
HGP–1A–F08*
|
75
|
36.5
|
3 / 8”PT
|
3 / 8”PT
|
|
HGP–1A–F1*
|
77
|
38.5
|
3 / 8”PT
|
3 / 8”PT
|
|
HGP–1A–F2*
|
80.5
|
40.25
|
3 / 8”PT
|
3 / 8”PT
|
|
HGP–1A–F3*
|
86
|
43
|
3 / 8”PT
|
3 / 8”PT
|
|
HGP–1A–F4*
|
88
|
44
|
3 / 8”PT
|
3 / 8”PT
|
|
HGP–1A–F5*
|
92
|
46
|
3 / 8”PT
|
3 / 8”PT
|
|
HGP–1A–F6*
|
96
|
48
|
3 / 8”PT
|
3 / 8”PT
|
|
HGP–1A–F8*
|
102
|
51
|
1/ 2”PT
|
3 / 8”PT
|
Purchase instructions:
1. Please contact the customer service to see if the goods are available before you order them, in case the shortage delays your time. If there is stock, the goods will be shipped within 24 hours after payment by the buyer; But it is inevitable that there will be special circumstances, such as delayed shipment will immediately notify the customer.
2. All the photos on this website are taken by myself. The technology is not good enough.
3. About the freight: since the express fee to all parts of the world is not uniform, the express fee is only for reference, and the customer service will change according to the fee charged by the express company after the photo is taken.
4. After receiving the goods, if you are satisfied with this transaction, please do not forget to give us favorable comments and support. If you are not satisfied or have any comments or Suggestions, please let us know so as to improve!
5. Return and replacement: if the goods need to be returned or replaced due to non-quality problems, the buyer shall pay the round-trip freight.
Warm tips: when you receive the product, please be sure to check whether the received product is consistent with the model and quantity you ordered according to the information of outer packaging. If there is any discrepancy or damage, please contact the store immediately and we will solve it for you as soon as possible. Wish dear friends shopping happy!
|
 |
